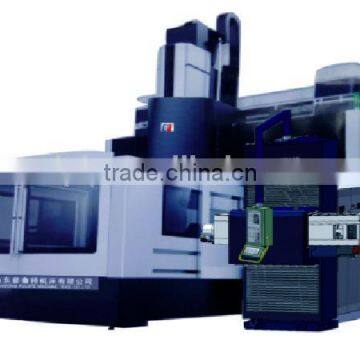

Vertical and Horizontal Gantry maching center GVHMC80

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Gantry
Place of Origin	Shandong, China	Brand Name	PULUTE
Model Number	LMT80/100	Voltage	220V/380V
Power(W)	15/18KW	Dimension(LWH)	554METER
Weight	10MT	Certification	ISO9001
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Vertical and Horizontal Gantry maching centers GVHMC80,

not only can be used as gantry type vertical machining with ATC, also do horizontal machinining with ATC

Chain magazine optional.

ITEMS
ITEMS			GVHMC65	GVHMC80
Table size	Long table	mm	650X1300 650X1650 650X2000	800X1600(800X1500)800X2000 800X2400
	Add-on rotary table	mm	630X630	800X800
	Built-in rotary table	mm	Φ800	Φ1000
	Built-on rotary table	mm	630X800	800X1000
	Two changable rotary table	mm	630X630	800X800
	Two changable rotary table	mm	630X800	800X1000
Max table loading	Base table	kg	2	3
Max table loading	Rotary table	kg	1.5	2
Max height thru- gantry	Base table	mm	1200	1300
	Add-on table	mm	900	1100
	Add-on rotary table	mm	720	800
	Built-on rotary table	mm	950	1100
Max width thru-gantry		mm	1200	1400
Vertical Spindle nose to table	Base table	mm	1000	1100
	Add-on table	mm	800	900
	Add-on rotary table	mm	530	750
	Built-on rotary table	mm	950	1100
Table to floor	Base table	mm	700	730
	Add-on table	mm	900	930
	Add-on rotary table	mm	1080	1110
	Built-on rotary table	mm	900	935
X travel		mm	1500,1850,2200	1600/1800,2200,2600
T-slot		mm	18X7X125	18X7X150
Y travel		mm	1095	1100
Z travel		mm	700	800
W travel		mm	700	800
V travel		mm	800	970
Horizontal spindle center to table	Base table	mm	800	900
Horizontal spindle nose to table side	Base table	mm	275	275
Spindle	Spindle taper		BT40	BT50
	speed	rpm	Rated 2000, Max 8000	Rated 2000, Max 6000
	Main motor	KW	7.5/11	13/18.5
Feeding motors	Y axis		3KW, 2000rpm	4.2KW, 2000rpm
Feeding motors	X,Y,Z,W,V		3.2KW, 2000rpm	3.6KW, 2000rpm
Rapid traverse	X,Y,Z,W axis	mm/min	20	20
Rapid traverse	V axis	mm/min	15	15
Feeding speed	X,Y,X,V,W axis	mm/min	10000	10000
Positioning accuracy	positioning	mm	0.025/1000 M 0.015/1000	0.025/1000 M 0.015/1000
Positioning accuracy	Repeatability	mm	0.015 M0.008	0.015 M0.008
Rotary table (C-axis)	Servo motor		2.5KW, 1500rpm	3KW, 1500rpm
	Speed	r/min	11.1 16.7	11.1 16.7
	Positioning accuracy	NC	30" M 10"	30" M 10"
	Positioning accuracy	Hydraulic	6"	6"
	Repeatability	NC	15" M 4"	15" M 4"
	Repeatability	Hydraulic	2"	2"
Magazine-ATC	Vertical spindle		Disc: BT50-24T	Disc: BT50-24T
	Horizontal spindle		Row: BT50-10T	Row: BT40-12T
	Chain type for both vertical & horizontal spindles		BT50-40T 60T 80T 100T 120T	BT40-40T 60T 80T 100T
Overall size	LXWXH	mm	5000(5400,5800) x4500x4000	5400(5800,6200) x4700x4200
N.W.		T	14 17 20	20 22 25

Packaging & Shipping

PLY WOOD CASES, WOODEN CASES, PER CUSTOMERS
