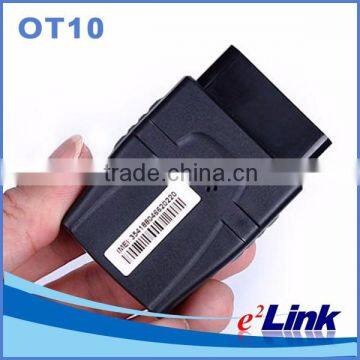

obd2 sim card gps tracker with diagnostic function,obd ii gps gprs gsm car tracker GOT10

obd2 sim card gps tracker with diagnostic function,obd ii gps gprs gsm car tracker GOT10

GOT10 OBD2 vehicle gps tracker has a very wide range of industrial and commercial applications, OBD interface, OBD diagnostic, plug and play,Voltage detection ACC, can be trackered on the platfrom through computer & smart phone.

 Typical application areas : logistics enterprises, fleet management, bus management, insurance , power , oil , telecommunications , taxi , car sales , car rental , vehicle maintenance , technology researchers, no need to wiring, especially for private car.

Application

DRIVERS - Receive location, route and vehicle condition assistance automatically, anytime and anywhere.
TECHNICIANS - Remote vehicle diagnostics protects equipment and drivers.
OPERATIONS - Use real-time visibility to run operations more efficiently and safely.
DISPATCHERS - Plan and adjust routes more effectively and immediately.
SERVICE MANAGERS - Answer location inquiries faster and accurately.
RISK MANAGERS - Ensure regulatory compliance because unplanned incidents are reduced.
ACCOUNTANTS - Measure cost savings and increased customer satisfaction realized.
IT MANAGERS - Save valuable resources, with no demands on existing IT infrastructure or personnel.
EXECUTIVES - Increase value, through gains in productivity and utilization.

Cars Diagnostic System record function

Engine speed: RPM  Accurate to 1RPM

Intake air pressure: MAP  √

Caused by air temperature: CIA  Accurate to 1 ° C

Launch from the load: LOD √

Throttle position: TPS √

Fuel pressure: FRP √

Ignition timing: ING Accurate to 0.1V

Battery voltage: VLT  Accurate to 1 ° C

Fuel System Status: LP √

Water temperature: CWT Accurate to 1 ° C

Speed: KPH Accurate to 1KM/hr

 How to find your OBDII Connector

Start by looking around the underside of your dashboard, below your steering wheel but above your gas and brake pedals. The diagram below will show you the general area to search.

The connector may be covered by a small flap, but will usually be visible without requiring any disassembly.

Installing the OBDII-GPS

Once the OBDII connector has been located, all that is required is to plug the OBDII-GPS into the connector. Once you turn the ignition of the vehicle on, the small lights on the unit will blink. During your first installation, you will need to give the OBDII-GPS unit a minimum of 15 minutes fully initialize.

Detail picture

Specifications

· GSM frequency : Quad-band 850/900/1800/1900 MHz

· Size :  66*48*25mm
· Weight:  55g
· Interface: OBD interface
· Data transmission: GPRS/SMS
· Positioning mode: GPS/AGPS
· Working voltage: 9-36V DC
· Internal battery: 3.7V/100mA Lithium battery

· Install: OBD II connector/Plug-in and play
· GPS channels: 50
· Sensitivity: -160dBm
· Positioning Accuracy : 10m
· Cold start: <32s
· Hot start : < 1s

· Protocol: TCP/IP
· Built-in GPS/GSM antennas
· Working temperature :   -30 °C~ +70°C
· Storage temperature: -40 °C~ +85°C

· Humidity: 5%~95%

· Communication protocol:SMS, GPRS, TCP/UDP, USSD, FTP

· Normal currency:<100mA, 13.8VDC
. Max. currency:<150mA, 13.8VDC
. Sleep mode currency:<10mA,12VDC

Never worry about battery life again with the OBD Real Time vehicle GPS Tracker! ALL vehicles model year 1996 and newer have an OBD II style data port located near the base of the steering column inside your car. Simply locate this port in your vehicle, plug in the OBD GPS and you're done! No wires, no antenna, this tracker literally installs in seconds! Easy to use interface with no download required. Just log into the website from any PC, Mac, Tablet, or phone Updating every 60 Seconds, this GPS tracker is perfect for fleet vehicle tracking or locating your teenager who borrowed your car.

Real-Time GPS Tracking System software and tracking abilities, Eelink OBD II offers ability to obtain and transmit vehicle diagnostic information from On-Board Diagnostics port (OBD-II). Device plugs into and is powered by vehicle's OBD-II port, allowing uninterrupted GPS tracking. Also equipped as standard, motion sensor alerts users if car is moving when engine is turned off. Users can track their vehicles in real-time as well as gather diagnostic information.  The OBD ii is a GPS Tracking Device provided by GPS Tracking Tracker that installs in the OBD ii port of any vehicle. The tracker will provide updates every one minute and runs off the car itself. The OBD tracker installs within seconds.

GPS Tracking Diagnostics System

GPS Tracking System

1) Geo-fence Alarm

2)Add device with protocol you need

3)GPS tracking Statistics report

  Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, OBD II GPS Tracker, OBD 2 Tracking, Car On-Board Diagnostics Tracking, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management

Office and Laboratory

Factory SMT Workshop

Factory Cable Assembly  Workshop

Company Certificate

Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
