HEIGH COST-EFFECTIVE 2 POST AUTO PARKING LIFT; HYDRAULIC GARAGEPARKING STACKER

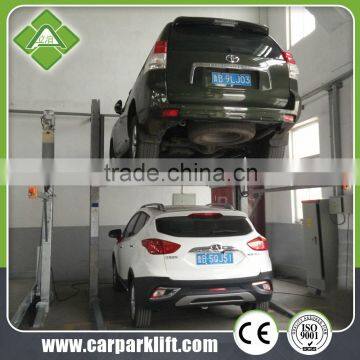

PTJ201-27 Two Post Parking Lift

Product Description

PTJ201-27 Two Post Parking is economical model to be used for stack parking in small area. The device enjoys great popularity with the features of simple structure, easy assembling and space-saving. The device is mainly consists of posts of two sides, carriage of two sides, and wave plate platform. The left and right post can be used in common. The left and right carriage can form double-linked or multi-linked device with the column at random.The ground vehicle can go in and out directly. The ground vehicle to be cleared before park or unpark the car on the hatch back.

Product Advantage

* The quality of products is our most concerning and it was also appreciated by all our clients upon the China market investigation.

* The maximum lifting height can be 2100mm. The maximum lifting weight is 2700kg. This type parking lift is available for SUV.

* The device size can be modified according to customer’s requirement.

* Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall.

* Vehicle platform fully enclosed design to avoid oil leakage polluting the bottom car.

* All the main structure processed with laser cutting,  designed with easy installation, less questions, easier maintenance and more attractive appearance.

* It works with share column design to save your space and budget also.

* Raw material processed with laser cutting to ensure the accuracy and the strength of main structure steel .

* Spare parts such as the original Italy hydraulic cylinder seal apply to all products; the top quality of Main Power Unit etc.

* It can be widely used in hotels, enterprises and public institutions and residential area etc.

Protective Device

Anti-dropping device: to prevent the top vehicle drops from unexpected disconnection.

Optoelectric switch (device for checking the clearance of any obstructions): to prevent the people and property from accident during the operation.

Limited switch device: to protect the equipment over operated.

Emergency switch: the emergency switch button is used to power off the system during the operation in case of emergency  .

Specifications

Detail Photos:

Drawing

As a professional manufacturer of simple parking system, we are committed to offer the most suitable and cost effective parking system solutions to you, including two post parking equipment, four post parking equipment, tilt parking equipment, pit type parking system, lift-sliding parking system etc. We are committed to provide high quality products. Our product passed the European CE certification. During the whole production procedure, the quality is inspected strictly.

Q: Is the PTJ201-27 can used for paking SUV?

A: Yes, it is.

Q: Is PTJ201-27 used for indoor or outdoor?

A: Both are avaliable.

Q: What's the MOQ?

A: 1 set.

Q: What's the voltage of power supply for Main HPU?

A: Standard voltage is 220v, 50Hz, 1Phase or 380v, 50Hz, 3Phase. Other voltage could be customized as you needed.

Q: What about the installation, is it too complicate for us ?

A: Most of structure and parts are pre-positioned before packing up. And also the installation manual and drawing are provided from us. If the project is required, we could send our engineer for site guidance.

Guarantee:

Warranty for main structure is 5 years, Other accessoies are 1 year.

Within warranty period and the usage is complied to instruction, any products malfunctioning or damage, we will offer the repair service or replace free of cost.

We continue to provide life-long maintenance service after warranty period, supply parts with  charges.

Warranty period takes effect as from the date of manufacture.
