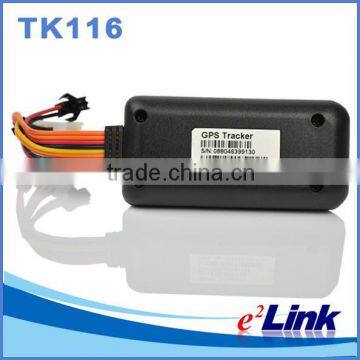

Vehicle GPS Tracker Quad band web based GPS tracking system,GPS Tracker, GPS device,smart gps chips

Specifications

Vehicle tracking system manufacturers seeing the demand in the market for vehicle tracking systems are manufacturing high quality vehicle tracking systems which can be very helpful. At Eelink you can make order for all types of vehicle tracking systems which are manufactured by very reputed vehicle tracking system manufacturers.

Environment for use

1.Limited working temperature:-20°C~80°C

2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.

6.Battery: 200MAh battery

Basic Specifications:

Voltage: 12VDC/24VDC
Standby : Current <3mA
Work current : <30mA
GPS positioning accuracy : 15m
GSM positioning accuracy : 100m
GPS Frequency : 1575MHz
GSM Frequency : 850/900/1800/1900MHz
Hot/warm/cold start time : <3s,<15s,<60s
Dimensions (mm) L*W*H : 79.5X38.5X10.5
Weight : 45g

Product Features
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:6-36V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
7.Use SOS button for SOS call.
8.Use external MIC to monitor remotely

 Main function

GPS Tracking Solutions

Detail picture

GPS Tracking System

1) Geo-fence Alarm

2)Add device with protocol you need

3)GPS tracking Statistics report

Package

Accessories

Office and Laboratory

Factory SMT Workshop

Factory Cable Assembly  Workshop

Company Certificate

Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
