Commercial Vehicle Tracking Systems TK116
- shenzhen
- T/T Credit Card PayPal
You May Like
-
Global Smallest Gps Tracking Device TK116
-
Gsm Gprs Gps Tracker Global Smallest Gps Tracking Device TK116
-
Wholesale Gps Tracker Vehicle Tracking Device TK116
-
Tracking Key GPS Logger Device, GPS Auto Tracker TK116
-
Low-Cost Car Tracker Device TK116 Show You Everywhere The Car Went
-
Super Eelink Data Logging GPS Vehicle Tracking Device TK116
Product Details
| Type | Gps Tracker | Use | Automotive | |
| Screen Size | Other, no screen | Function | Other, tracking position, tracking history, cut off fuel, cut off power | |
| Place of Origin | Guangdong, China | Brand Name | eelink | |
| Model Number | TK116 |
Product Description
Specifications
1.Vehicle Tracking System2 GPS
3 Fleet Management
4Taxi dispatch System
5.Temperature monitoring, Fuel monitoring
Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management
APPLICATIONS
Car rental solution
Taxi management solution
Vehicle tracking solution
Trucking and logistics solution
Secure transportation solution
Service oriented transporter solution
Operation centric solution
School bus management solution
Employee commuting solution
Police and public safety solution
Environment for use
1,Limited working temperature:-20°C~80°C
2,Storage temperature:-45°C~90°C
3,Humidity:<95%
4,Atmospheric pressure:86kPa~106kPa
5,Make sure the terminal is installed in rainproof
and snow-proof places.
6.200MAh battery
Basic Specifications:
Voltage 12VDC/24VDC
Standby Current <3mA
Work current <30mA
GPS positioning
accuracy 15m
GSM positioning
accuracy 100m
GPS Frequency 1575MHz
GSM Frequency 850/900/1800/1900MHz
Hot/warm/cold start time <3s,<15s,<60s
Dimensions (mm) L*W*H :
79.5X38.5X10.5
Weight 45 g
Product Features
1.Supports quad bands, i.e.
850/900/1800/1900MHz, universal in
the world.
2.Wide Input Voltage:6-36V DC.
3.Supports single positioning and feedbacks
position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status
notifying.
6.Use relay to remote control the vehicle..
7.Use SOS button for SOS call.
8.Use external MIC to monitor remotely
Main function
| Brand | Eelink |
| Model | TK116 |
| Quantity | 1 piece(s) |
| Color | Black |
| Material | ABS |
| Network | GSM |
| Band | 85090018001900 MHz |
| SIM Card Qty. | one SIM |
| Emergency Phone Number Qty. | 3 |
| Tracking Information Method | Monitoring and controlling platform |
| Power Supply | DC 6~36V |
| GPS Chip | SIRF |
| GPS Sensitivity | -163 dB |
| GPS Channel | 20 |
| Position Accuracy | 10 m |
| Altitude Limit | 18000 m |
| Hot Start | 3 seconds |
| Warm Start | 15 seconds |
| Cold Start | 60 seconds |
| SOS | Yes |
| Geo-fence | Yes |
| Vibrating Alerts | Yes |
| Remote Monitoring | Yes |
| Engine Cut Off | Yes |
| Realtime Monitoring | Yes |
| Track Playback | Yes |
| ACC Anti-Theft | Yes |
| Overspeed Alerts | Yes |
| Low Battery Alerts | Yes |
| GPS Blind Area Alarm | Yes |
| Voice Call | No |
| Waterproof Function | Yes |
| Waterproof Rate | Daily user water resistant |
| Working Temperature | -35~75'C |
| Working Humidity | 5%~95% |
| Manufacturer's Warranty | 12 Months excluding physical damages (see specifications for terms and details) |
| Certification | CE |
| Packing List | 1 x GPS (5cm) |
| 1 x Power cable (100cm) | |
| 1 x Microphone (150cm) | |
| 1 x SOS button | |
| 1 x English user manual | |
| 1 x Chinese / English instruction manual |
Vehicle tracking system solutions

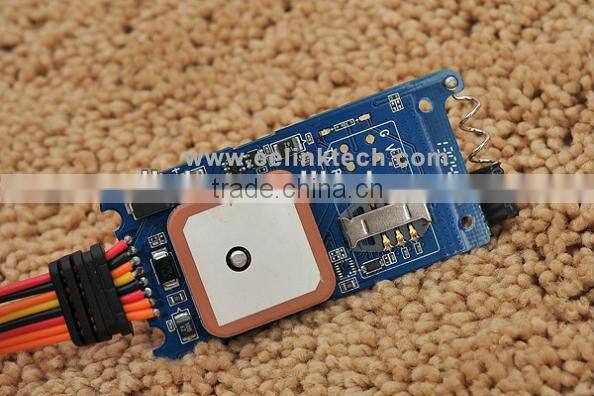

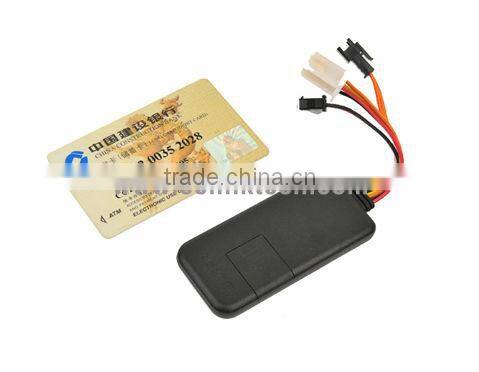

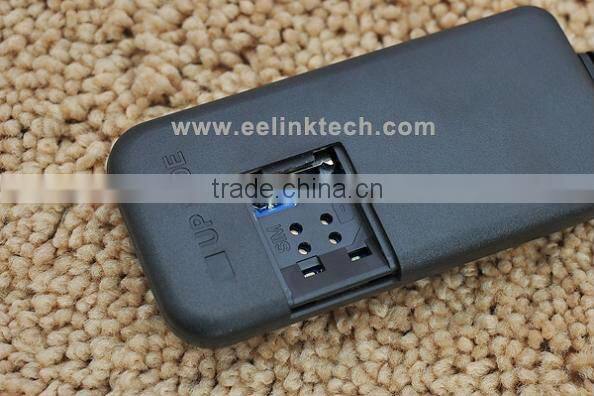

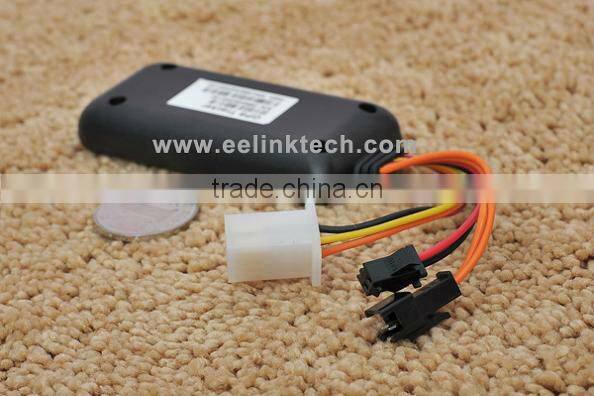

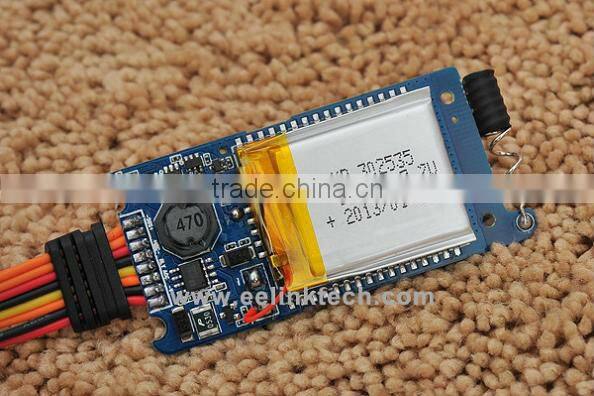

Detail picture

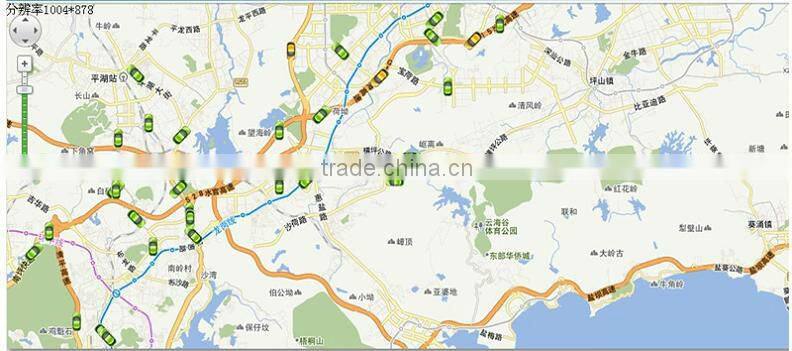

GPS TRACKING SYSTEM

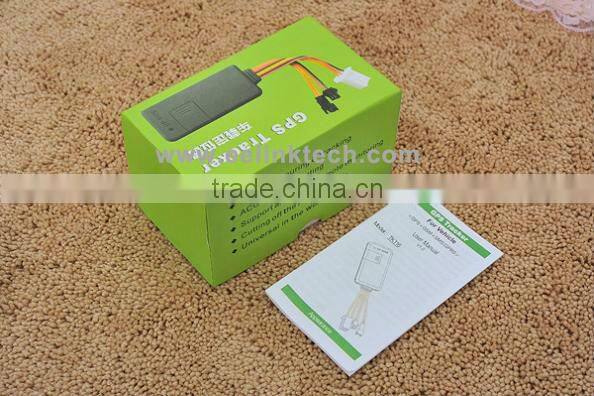

PACKAGE
| Packing List | 1 x GPS (5cm) |
| 1 x Power cable (100cm) | |
| 1 x Microphone (150cm) | |
| 1 x SOS button | |
| 1 x English user manual | |
| 1 x Chinese / English instruction manual |

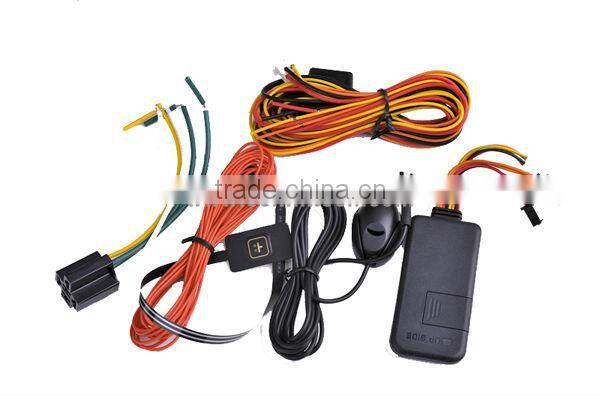

ACCESSORIES
