4 Column 2 Level Hydraulic Car Parking Lift
- Qingdao
- T/T
You May Like
Product Details
| Type | Parking Lift | Height (mm) | 4810 | |
| Width (mm) | 2667 | Place of Origin | Shandong, China | |
| Brand Name | Telian | Model Number | PTJ 601-27 | |
| Warranty | 1 Years |
Product Description
Specifications
1.Easy installation2.4 Column 2 Level Hydraulic Car Parking Lift
3.CE approval
4.parking 2 cars
· 4 Column 2 Level Hydraulic Car Parking Lift is designed of two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.
·Low noise, smooth operation, save energy, low carbon and environmental protection.
·Spraying plastics, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics.

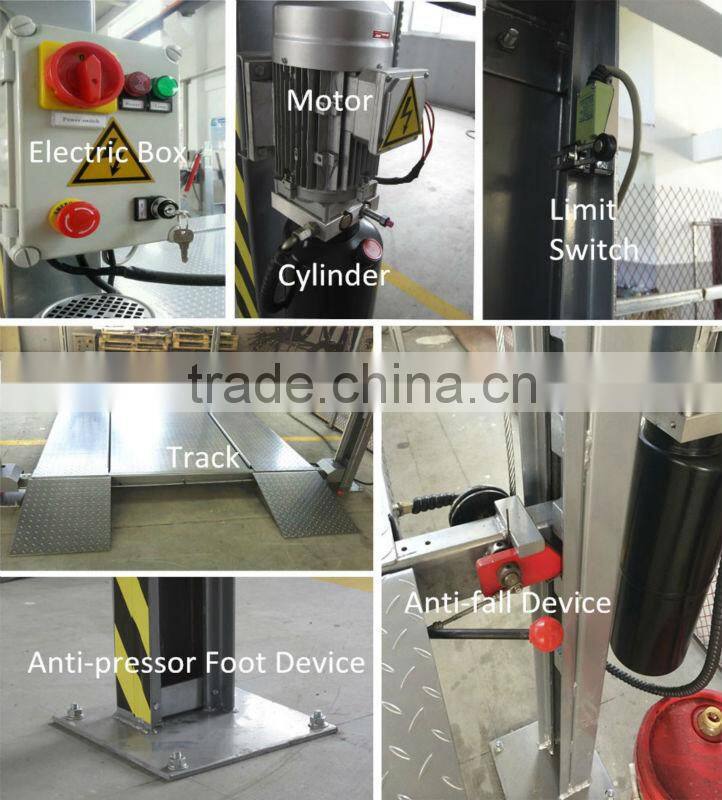

·It equiped with mannual unlocking device.
·Simple structure, easy installation, minimal requirements for civil engineering.
·It can be used as car lift to repair cars,and also can park 2 cars.
·It can be widely used in hotels, enterprises and public institutions and residential area.
Name | Four Post Parking Lift |
Model | PTJ 601-27 |

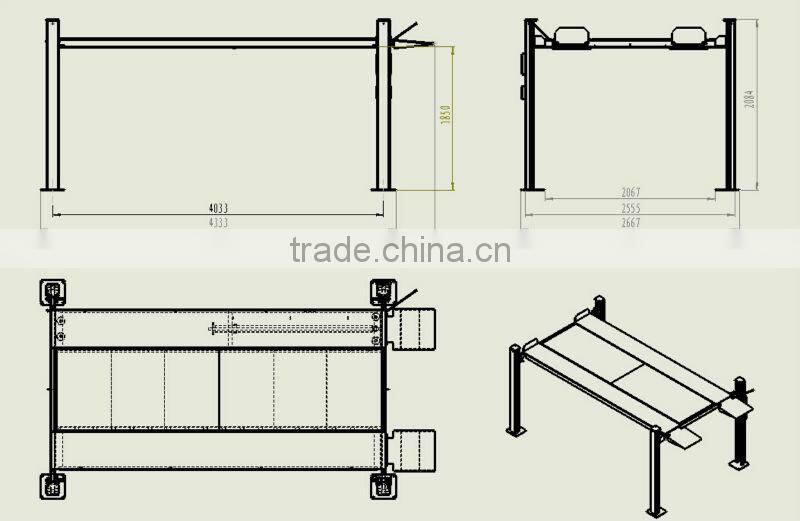

Dimension | 4810*2667*2084mm |
Weight of parking car | 2700kg/6000lbs |
Rated speed | 2.2 m/min |
Motor | 2.2kw |
Warming devices | Yes |
Mode of operate | Button / IC card / Remote key |
Mode of control | Hydraulic control / PLC control |
Mode of drive | Hydraulic driving, wire rope |
Electrics | 380v,3 phase; 220v single phase(By ordered) |
We are dedicated to make your own parking equipment according to your requirements.

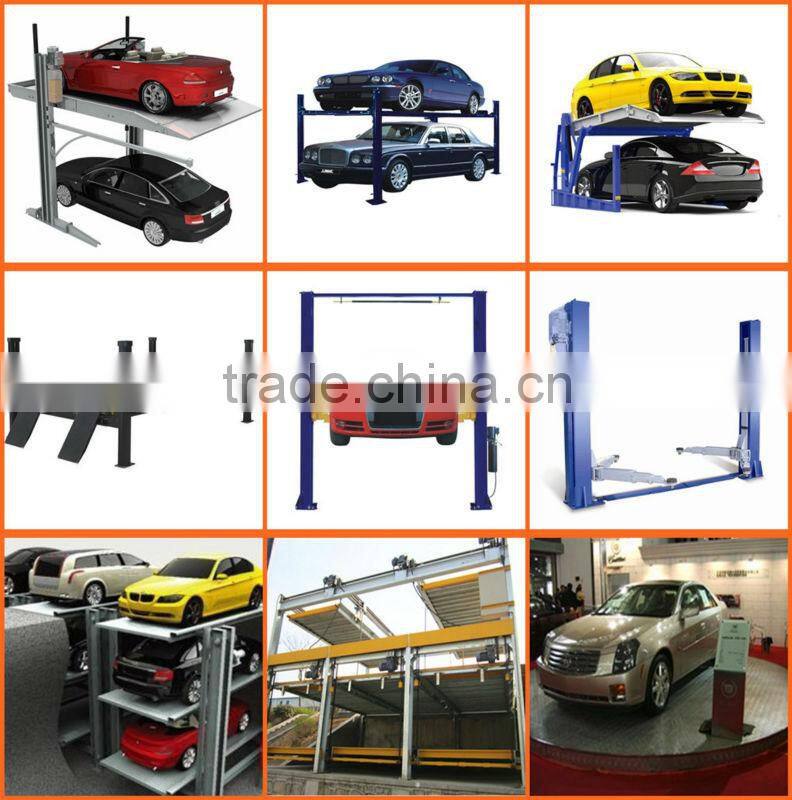

Qingdao Telian Machienry Co., Ltd. specilize in production of simple parking equipment , auto lifts , parking facilities. Main products are two post parking lift, four post parking lifts, tilting parking lift, pit parking lift, lift-sliding parking equipment etc.
USA, Canada, Australia, Russia, Spain,Germany, UK, New Zealand, Brazil, Mexico, Columbia, Thailand and many other countries.
1.About Delivery Term
Q: What's the delivery term for making business with us?
A:Usually we send the shipments in FOB term.However, the terms of CIF and C&F are acceptable which depend of clients.
2.About Delivery Time
Q:What's the delivery time after placing the order?
A:Usually it takes 15-50 days after we received your down payment .However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
3.About Payment
Q: what's the payment?
A:By T/T, 50% is paid in advance; balance befor delivery .
4.About Min Order
Q:What's the min order?
A:1 set.
5.About Warranty
Q:What's the warranty?
A:1 year for free; after sales service for ever.
