GPS Tracker for Security Monitor Voice and GPS Vehicle Tracking

Specifications

Product Features
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:6-36V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
7.Use SOS button for SOS call.
8.Use external MIC to monitor remotely

Alarm Types
Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
SOS Alarm(need SOS Cable)

Function Extension
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application

Environment for use

1.Limited working temperature:-20°C~80°C

2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.

6.Battery: 200MAh battery

Basic Specifications:

Voltage: 12VDC/24VDC
Standby : Current <3mA
Work current : <30mA
GPS positioning accuracy : 15m
GSM positioning accuracy : 100m
GPS Frequency : 1575MHz
GSM Frequency : 850/900/1800/1900MHz
Hot/warm/cold start time : <3s,<15s,<60s
Dimensions (mm) L*W*H : 79.5X38.5X10.5
Weight : 45g

GPS Tracking Solutions

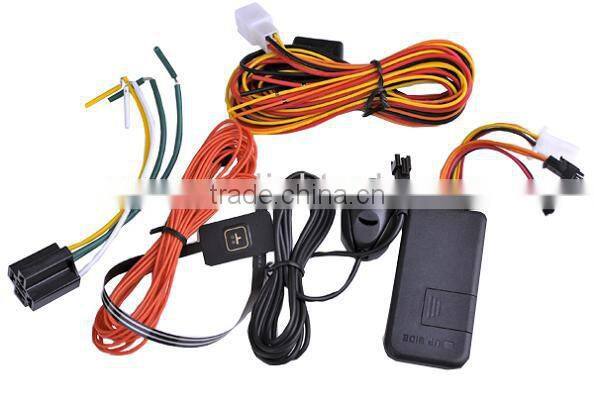

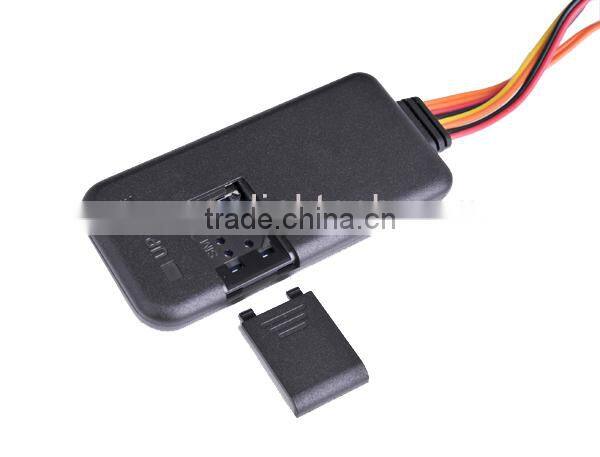

Detail picture

Specifications

GPS Tracking System

1) Geo-fence Alarm

2)Add device with protocol you need

3)GPS tracking Statistics report

Package

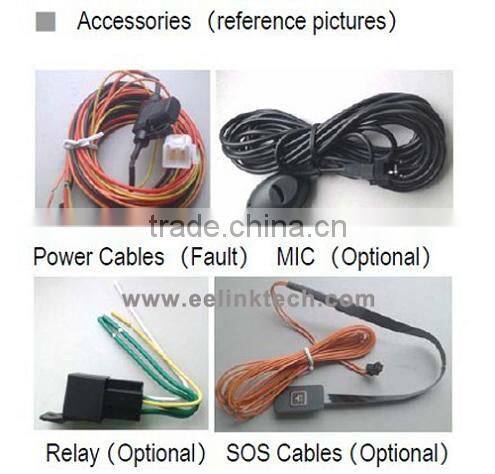

Accessories

  Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, GPS Tracker OBD II, OBD 2 Tracking Device, Car Vehicle On-Board  Diagnostics Tracking System, Vehicle Tracking Devices, Personal Tracking device.

Office and Laboratory

Factory SMT Workshop

Factory Cable Assembly  Workshop

Company Certificate

Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
