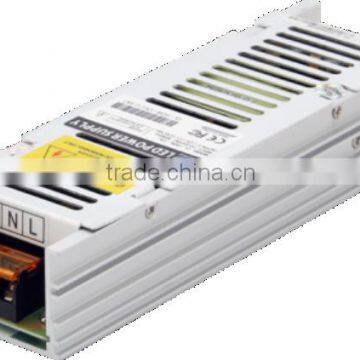

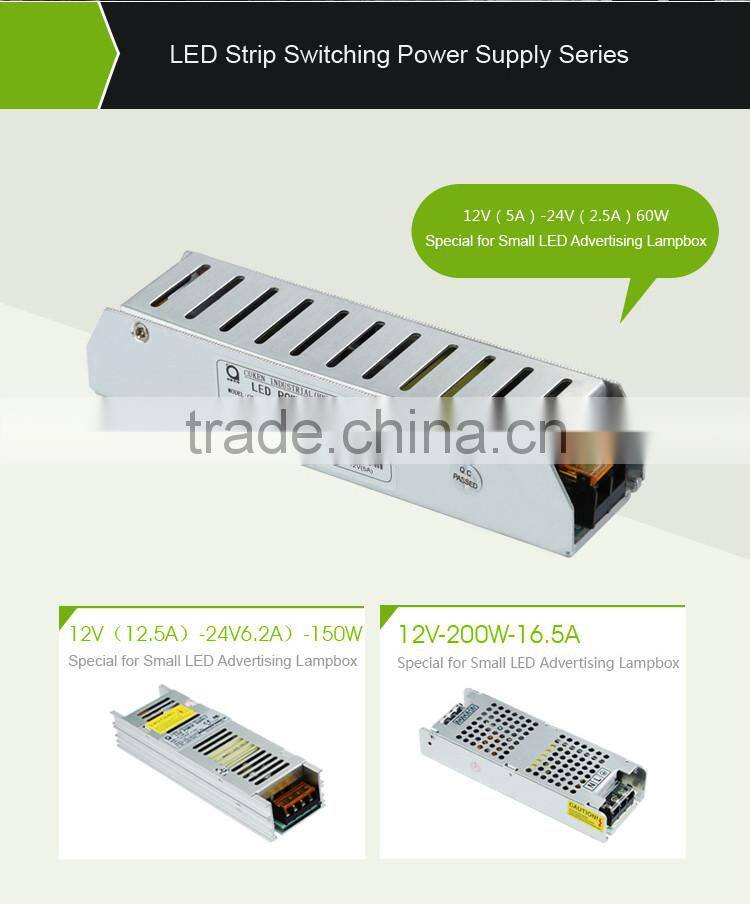

2016 NEW!!! 150w Single output constant current power supply 12v led driver

Item No.

CQ-60W-12V

CQ-100W-12V

CQ-150W-12V

CQ-60W-24V

CQ-100W-24V

CQ-150W-24V

Output

DC Voltage

12V

 12V

12V

24V

 24V

24V

Rated Current

5A

8.5A

12.5A

2.5A

4.1A

 6.3A

Current Range

0.3~3A

0~8.5A

0~12.5A

0.3~5A

0~8.5A

0~12.5A

Rated Power

60W

100W

150W

 60W

100W

150W

Ripple & Noise (Max) Note 2

120mVp-p

 120mVp-p

120mVp-p

150mVP-p

150mVp-p

150mVp-p

Voltage Tolerance Note 3

±0.6%

±0.6%

Line Regulation

±1.0%

±1.0%

±1.0%

±0.5%

±0.5%

±0.5%

Load Regulation

±4.0%

±4.0%

±4.0%

 ±2.0%

±2.0

±2.0

Set up time Note 6

300ms,50ms,80ms/230VAC;800ms,50ms,10ms/115VAC at full load; 2000ms,25ms/230VAC 2000ms,25ms/115VAC

Hold time

50ms/230VAC 14ms/115VAC at full load

 Input

 Voltage Range Note. 4

90~250VAC;100~250VAC

Frequency Range

47~63Hz

 Efficiency (Type.)

90%

90%

90%

91%

91%

91%

 AC Current (Type.)

2.2A/115VAC 1.2A/230VAC

 Inrush Current (Max)

Cold Start 30A/115VAC 60A/230VAC

Leakage Current

<3.5mA / 240 VAC

Protection

Over Load

105 ~ 150% rated output power

Protection Type:Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

5.75~6.75V

 13.8 ~16.2V

 41.4 ~ 48.6V

27.6 ~ 32.4V

 5.75 ~6.75V

17.25 ~ 20.25V

Protection type: Shut down o/p voltage, re-power on to recover

Environment

Working Temperature

-30 ~ 70°c

Working Humidity

20 ~ 90% RH non-condensing

Storage temp & Humidity

-40~+80°c,10~95%RH

Temp. coefficient

±0.03/ºc (0~50°c)

Vibration

10 ~ 500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes

Safety and EMC

 Safety Standards

IP42 approved

Withstand Voltage

I/P-O/P:3KVAC

Isolation Resistance

I/P-O/P:>100M ohms /500VDC /25 °C / 70% RH

EMC Emission

Compilance to EN55022 (CISPR22) Class B,EN61000-3-2 class A (≤80 load), EN61000-3-3

EMC Immunity

Comply with EN55022 class B, EN61000-3-2 class A (≤80% load), EN 61000-3-3

Others

MTBF

703Khrs min, MIL-HDBK-217F (25ºC)

Measurement

160x40x31 for 60w,187x46x35 for 100w,200x58x37 for 150wmm

net weight:0.19/0.26/0.41kg,96 pcs/69pcs/44pcs in carton size (1.18/1.48/1.48cuft)

Remark:

1.All technical data if not mentioned, it should be measured at 230v,rated load and 25 °c of relative temperature

2.Ripple and noise are tested at 20mhz of bandwidth via 12" twitsted pair-wire terminated with 0.1uf and 47uf parael cap.

3.Tolerance:set up tolerance,line regulation and load regulation are included

4.derating may be loaded with low input voltage, it should double check the detailed static characteristics

5.As power supply need to connected with final terminal equipment, which require the equipment to comply with EMC standard on the complete installation process again

6.Length of set up times is measured at first cold start, turning ON/OFF the power supply may result in expanding set up time.
