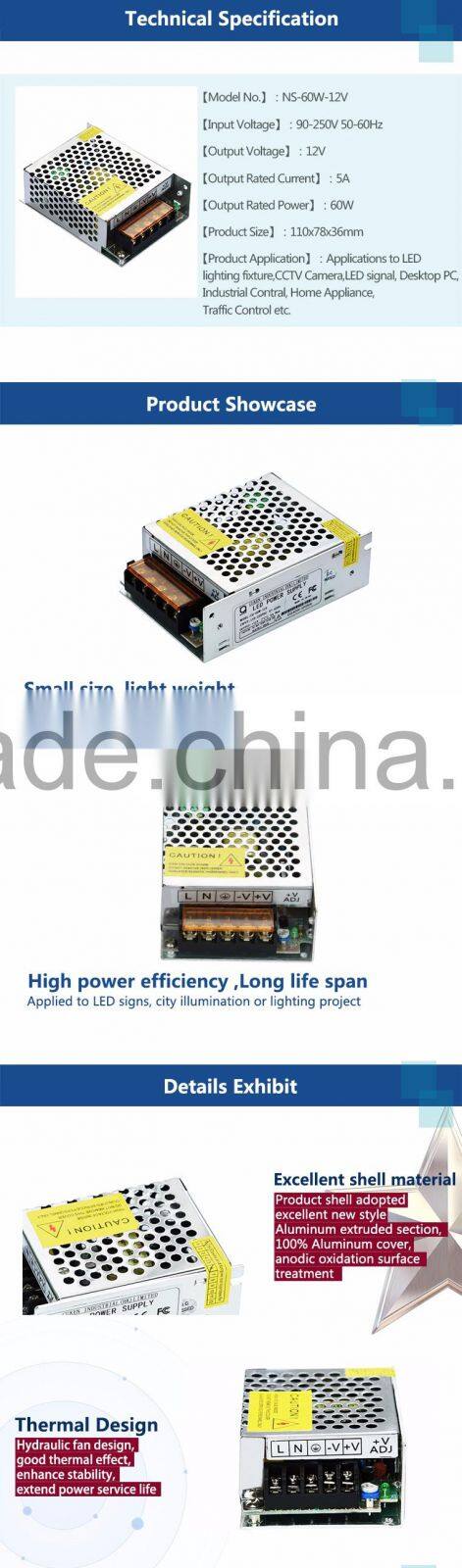

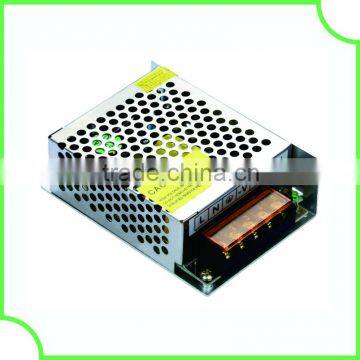

LED Power Supply 60W 12V Led Driver Class 2 12/24vdc

Item No.

NS-60W-12V

NS-120W-12V

NS-360W-12V

NS-60W-24V

NS-120W-24V

NS-360W-24V

Output

DC Voltage

12V

 12V

12V

24V

 24V

24V

Rated Current

5A

10A

30A

2.5A

5A

15A

Current Range

0~5A

0~10A

0~30A

0~2.5A

0~5A

0~15A

Rated Power

60W

120W

360W

 60W

120W

360W

Ripple & Noise (Max) Note 2

120mVp-p

 125mVp-p

100mVp-p

150mVP-p

120mVp-p

150mVp-p

Voltage Tolerance Note 3

±1%

±0.6%

Line Regulation

±1.0%

±1.0%

±1.0%

±1.0%

±0.6%

±1.0%

Load Regulation

±1%

±1%

±1.0%

 ±1.0%

±0.6%

±1.0

Set up time,Hold time

   1000ms,30ms at full load

 Input

 Voltage Range Note. 4

90~250VAC;100~250VAC

Frequency Range

47~63Hz

 Efficiency (Type.)

86%

86%

86%

88%

88%

88%

 AC Current (Type.)

3.15A/115VAC 1.5A/230VAC

 Inrush Current (Max)

Cold Start 20A/115VAC 40A/230VAC

Leakage Current

<1mA / 240 VAC

Protection

Over Load

105 ~ 150% rated output power

Protection Type:Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

5.75~6.75V

 13.8 ~16.2V

12.76  ~14.87V

27.6 ~ 32.4V

 27.8~32.6V

22.56 ~ 27.45V

Protection type: Shut down o/p voltage, re-power on to recover

Environment

Working Temperature

-30 ~ 70°c

Working Humidity

20 ~ 90% RH non-condensing

Storage temp & Humidity

-40~+80°c,10~95%RH

Temp. coefficient

±0.03/ºc (0~50°c)

Vibration

10 ~ 500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes

Safety and EMC

 Safety Standards

IP42 approved

Withstand Voltage

I/P-O/P:3KVAC

Isolation Resistance

I/P-O/P:>100M ohms /500VDC /25 °C / 70% RH

EMC Emission

Compilance to EN55022 (CISPR22) Class B,EN61000-3-2 class A (≤80 load), EN61000-3-3

EMC Immunity

Comply with EN55022 class B, EN61000-3-2 class A (≤80% load), EN 61000-3-3

Others

MTBF

703Khrs min, MIL-HDBK-217F (25ºC)

Measurement

110x78x36 mm for 60w,129x98x38 mm for 120w,215x114x50mm for 360w

net weight:0.25/0.35/0.78kg,96 pcs/69pcs/20pcs in carton size (1.18/1.47/1.17cuft)

Remark:

1.All technical data if not mentioned, it should be measured at 230v,rated load and 25 °c of relative temperature

2.Ripple and noise are tested at 20mhz of bandwidth via 12" twitsted pair-wire terminated with 0.1uf and 47uf parael cap.

3.Tolerance:set up tolerance,line regulation and load regulation are included

4.derating may be loaded with low input voltage, it should double check the detailed static characteristics

5.As power supply need to connected with final terminal equipment, which require the equipment to comply with EMC standard on the complete installation process again

6.Length of set up times is measured at first cold start, turning ON/OFF the power supply may result in expanding set up time.
