High Quality & Low Price Spherical Roller Bearings
- Tianjin port
- T/T Credit Card
You May Like
Product Details
| Brand Name | Import bearing | Bore Size | 38, 1180 | |
| Outside Diameter | 80, 1540 | Model Number | All models spherical roller bearing | |
| Precision Rating | P0,P5,P6,P4 | Seals Type | Open;sealed | |
| Number of Row | Single Row | Place of Origin | Tianjin, China |
Product Description
Specifications
high quality 22316E1 spherical roller bearings:1. Brass cage
2. 80x170x58mm
3. Chrome steel
4. Cylindrical bore
high quality spherical roller bearings:
1. Brass cage
2. 180X170X58mm
3. Chrome steel
4. Cylindrical bore

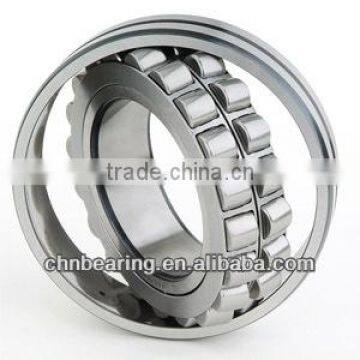

Specification of spherical roller bearings 22316E1:
Item | Specification |
Type | Spherical roller bearings |
Model Number | 22316E1/C3 |
Brand | LBR |
Dimension(dxDxB) | 80x170x58mm |
Outer Ring | Chrome steel |
Inner Ring | Chrome steel |
Cage | Steel sheet |
Precision Grade | P0 ( ABEC1 ), P6 ( ABEC-3 ), P5 ( ABEC-5 ) |
Vibration Grade | Z1V1 Z2V2 Z3V3 |
| Dynamic Load Rate(KN) | 495 |
Static Load Rate(KN) | 510 |
Limiting speed | 4300 |
Ref. Speed | 3400 |
| Mass | 6.27kg |
How to expand the lifetime of spherical roller bearings :
1. The installation is correct, that affects precision, life, performance. And fill the bearing with lubricant after installation.
2. Don't allow strong impact, such as hammer striking, transfer roller pressure
3. Use the accurate installation tool, avoid to use cloth kind and short fibers
4. Lubricate the bearing to avoid rust with high quality mineral oil, especially in summer
5. General inspection, such as the surrounding temperature, vibrate, noise inspection
6. Keep bearing cleaning from dirt, dust, pollutant, moisture.
7. Bearing should not be ultra cooled.
