Asphalt Membrane Bitumen and Asphalt Roofing Waterproof Membrane

FOB Price

US$ 4 - 5 / Square Meter

4000 Square Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Tianjin, China		Brand Name	ALLIPH
Model Number	SBS

SBS Membrane with Color Granules

Product Description

Technical Data

ITEM			INDEX
			Ⅰ		Ⅱ
			PY	G	PY	G	PYG
Solvent Content (g/m2)≥	3mm		2100	2100	2100	2100	-
	4mm		2900	2900	2900	2900	-
	5mm		3500	3500	3500	3500	3500
	Test phenomenon		-	The mat not burning	-	The mat not burning	-
resistance to heating	℃		90	90	105	105	105
	≤mm		2	2	2	2	2
	Test phenomenon		No flow, drippage	No flow, drippage	No flow, drippage	No flow, drippage	No flow, drippage
low temperature flexibility/℃			-20	-20	-25	-25	-25
low temperature flexibility/℃			no crack	no crack	no crack	no crack	no crack
waterproof 30min			0.3Mpa	0.2Mpa	0.3Mpa	0.3Mpa	0.3Mpa
Tension	Max/(N/50mm)≥		500	350	800	500	900
	Second(N/50mm)≥		-	-	-	-	800
	Test phenomenon		in middle of the test piece, the bitumen coating no crack or separate from the mat
Extensibility	Max/%≥		30	-	40	-	-
Extensibility	Second/%≥		-	-	-	-	15
Weight adding after dipping/%≤	PE,S		1.0	1.0	1.0	1.0	1.0
Weight adding after dipping/%≤	M		2.0	2.0	2.0	2.0	2.0
Heating aging	tension holding/%≥		90	90	90	90	90
	extensibility holding/%≥		80	80	80	80	80
	low temperature flexibility/℃		-15	-15	-20	-20	-20
	low temperature flexibility/℃		no crack	no crack	no crack	no crack	no crack
	dimension changing/%≤		0.7	-	0.7	-	0.3
	loss of weight		1.0	1.0	1.0	1.0	1.0
Oil penetration	Pcs ≤		2	2	2	2	2
Joint peeling strength/(N/mm)≥			1.5	1.5	1.5	1.5	1.5
Nail bar tear strength a/N≥			-	-	-	-	300
Mineral grain adhesion b/g≤			2.0	2.0	2.0	2.0	2.0
Lower surface bitumen coating thickness c/mm≥			1.0	1.0	1.0	1.0	1.0
Artificial weathering		appearance	No sliding,flow and dripped
		tension holding/%≥	80	80	80	80	80
		low temperature flexibility/℃	-15	-15	-20	-20	-20
		low temperature flexibility/℃	no crack	no crack	no crack	no crack	no crack

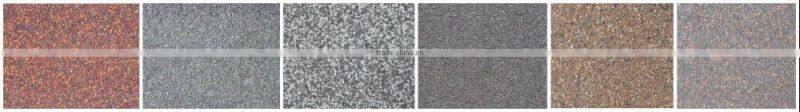

Color board

Company Information

FAQ

What are asphalt roofing shingles and what is asphalt’s role in roofing shingles?

Asphalt roofing shingles are the most commonly used covering on residential properties in the market.

Asphalt’s primary purpose in roofing shingles is to serve as a waterproofing agent.

Asphalt also holds the granules in place and adds to the overall strength of the roofing shingle.

The best asphalt will stay flexible and will not dry out or become hard or brittle for the expected life of the roofing shingle.
