pillow block bearing p205 p206 p207 p211 p212

Specifications

Pillow block bearing p205

Description of Pillow Bock Bearing

1)The basic design of mounted bearing units is one bearing (insert bearing, which is a single row deep groove ball bearing with convex sphered outside) + a mounted bearing housing(which has a correspondingly sphered but concave bore).

2)The mounted bearing units are available in various different designs.

3)The main materials for the housing is cast iron.

4)The mounted bearing units are secured on the shaft via the bearing inner ring by: (1)set screws(SB Series); (2). eccentric locking collar(SA Series); (3)Adapter sleeve (UK Series)

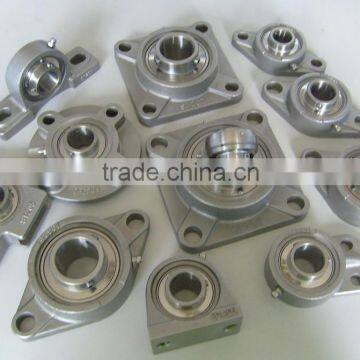

More pictures for the products

About  Pillow block bearings

Pillow block bearings  is a rolling bearing and a bearing seat together in a bearing unit. Most spherical bearings are made of the diameter sphere, and imported bearing with spherical inner hole seat is installed together, structural diversity, universality and interchangeability.

At the same time, such bearing on the design also has a certain adjustable mind, easy to install, has a dual structure of the sealing device, can work in harsh environments. Bearing is generally formed by casting. Common block hasvertical seat (P), square seat (F), the square boss seat (FS), convex platform round seat (FC), lozenge block (FL), an annular seat (C), the sliding block (T).

Pillow block bearings type

1, set screws with spherical bearing UC;

2, with a tapered bore spherical bearing UK;

High precision component products set-contained bearing is a bearing seat assembly grease sealed deep groove ball bearing and various shapes of the. Bearing components can be a few bolts mounted directly to the main mechanical devices, having centering function, can supplement of lubrication, is a kind of installation and use are very convenient products.

About our company and factory

Our certification:ISO 9001:2008

Our factory

Maintenance

1,Clean

Remove the bearings when the examination, first with photography and other methods do appearance record. In addition to that, the remaining amount of lubricant and lubricant sampling, then clean the bearing.

2,Check and distinction

In order to distinguish whether the bearing removed from use, to emphasize the standard precision, accuracy of rotation check, internal clearance and the collaboration area, raceway, cage and sealing ring. About the inspection effect, can be distinguished by the bearing or bearing are used. Sentenced to another standard according to the mechanical function and importance degree and inspection cycles and different. If the following injury, not from the use of bearing, it is necessary to exchange.

3,Set screw or eccentric locking collar

Corrosion resistant housing and bearing options include Cast iron, Stainless Steel, Thermoplastic, and Nickel plating.

B-type seals or L3 triple lip seals available for extra sealing needs.

Wide inner race bearing

Available with high temperature bearings.

Our application

Appications:

Machine Manufacturing

Typical Appication:

Typical Products

Power Transmission

Heavy Industry

Postioning Control

Consumer Products

Windpower Generation

The packaging

1. Neutral Package: Plastic Bag + Carton + Pallet;
2. 1. Neutral Package: Plastic Bag + Carton + Pallet;
2. Commercial Package: Plastic Bag + Box + Carton + Pallet;
3. As the clients' requirement. Commercial Package: Plastic Bag + Box + Carton + Pallet;
3. As the clients' requirement.

Payment terms & Shipping ways

1. Payment:

   1) TT, 30% deposit , 70% before shippment.
   2) L/C at sight. (high bank charge, not suggest , but acceptable )
   3) 100% Western Union in advance. (specially for air shipment or small amount)

2. Delivery:

   1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )

   2) Between 45 - 200 KGS, we will send by  air transport.

       ( Fastest and safest, but expensive )

   3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
