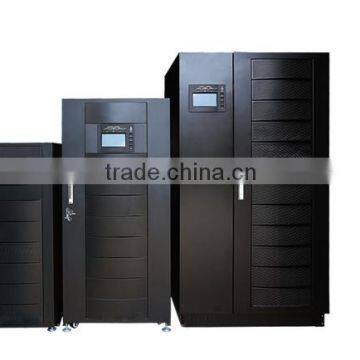

low frequency three phase 1000W 10KW 15KW 20KW 400KW online UPS
- GuangZhou
- T/T L/C D/P D/A Credit Card
You May Like
-
Xindun Power 12VDC 220VAC Single Phase LCD 1200VA Inverter/720W Portable Backup UPS with Built-in Battery
-
12VDC 220VAC Single Phase 1200VA LCD UPS/720W Portable Electrical Uninterrupted Backup UPS with Built-in Battery
-
Hot! Pure Sine Wave 12VDC 220VAC Single Phase LCD 500VA/350W Portable Inverter Backup UPS with Built-in 7AH Battery
-
Pure Sine Wave 12VDC 220VAC Single Phase LCD 500VA/350W Portable Inverter with Built-in 4AH Battery Backup UPS
-
24VDC 220VAC Single Phase 1200VA LCD UPS/720W Portable Pure Sine Wave Backup UPS with Built-in 7AH*2 Battery
-
24VDC 220VAC Single Phase 1200VA LCD UPS/720W Portable Pure Sine Wave Backup UPS with Built-in 4AH*2 Battery
Product Details
Place of Origin | Guangdong, China | Brand Name | Xindun | |
Model Number | NB | Specification | Normal | |
Application | Commercial | Output Voltage (V) | 145V-275V | |
Load Power (W) | 1000W 10KW 15KW 20KW 400KW | Solar Power (W) | 1000W 10KW 15KW 20KW 400KW | |
Work Time (h) | 8-12 Hours |
Product Description
low frequency three phase 1000W 10KW 15KW 20KW 400KW online UPS
To view more:solar kit/inverter with controller/inverter cabinet
Product picture&description
Pure sine-wave output,can be used for different domestic appliance
Superior performance from CPU control technology
AVR design can support stable voltage output
Auto temperature control fan for heat dissipation
Easy to check with inverter status with LED indication that can be upgraded to LCD
Built-in 20-25Ah charger support fast battery recharging
Product Parameter
Specification | ||||||||||
Model No. | 3012 | 35112 | 50112 | 70112 | 70124 | 10224 | 15224 | 15248 | 20248 | |
Rated power | 300W | 350W | 500W | 700W | 700W | 1000W | 1500W | 1500W | 2000W | |
Battery Voltage | 12V/24V | 24V/48V | ||||||||
Size(W×D×H)mm | 345*210*122 or 345*120*165 | 420*145*215 or 365*142*200 | 405*180*320 | |||||||
Carton size(W×D×H) mm | 385*270*185 or 396*170*210 | 460*190*260 or 396*190*240 | 460*240*380 | |||||||
Net weight(kg) | 6 | 7 | 8 | 11 | 11 | 13 | 17 | 17 | 20 | |
Gross weight (kg) | 7 | 8 | 9 | 12 | 12 | 14 | 18 | 18 | 21 | |
Specification | ||||||||||
Model No. | 30224 | 30248 | 40248 | 50296 | 70296 | 702192 | 103192 | 153192 | 203192 | |
Rated power | 3000W | 3000W | 4000W | 5000W | 7000W | 7000W | 10000W | 15000W | 20000W | |
Battery Voltage | 24V/48V | 48V/96V | 96V/192V | 192V/220V | ||||||
Size(W×D×H)mm | 425*200*335 | 465*245*465 | 485*300*655 | 600*300*730 | ||||||
Carton size(W×D×H)mm | 490*290*410 | 530*310*510 | 570*390*730 | 670*380*930 | ||||||
Net weight(kg) | 28 | 28 | 44 | 50 | 55 | 55 | 85 | 105 | 125 | |
Gross weight (kg) | 29 | 29 | 46 | 60 | 65 | 65 | 95 | 115 | 135 | |
Universal parameter | ||||||||||
Input | Voltage | 75V~125V or 145V~275V | ||||||||
Frequency | 45Hz~65Hz | |||||||||
Output | Voltage | 110V or 220V±2%(Battery mode) | ||||||||
Frequency | 50Hz or 60Hz ±0.5% | |||||||||
Output wave form | Pure Sine wave | |||||||||
Output waveform distortion | ≤±0.3% | |||||||||
Charging | 5A-15A(Adjustable) | |||||||||
Display | LCD | |||||||||
Transfer time | <4ms | |||||||||
Surrounding | Noise | ≤50dB | ||||||||
Temperature | 0°C~40°C | |||||||||
Humidity | 10%~90%(no condensate) | |||||||||
Efficiency | ≥80% |
the case have two options to choose
socket for Europe market
Packaging&shipping&payment
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Payment Terms
1. Payment: T/T, Western Union, Paypal, Moneygram. 30% deposits, 70% balance before delivery time.
2. MOQ: 1 PCS
3. Warranty: 1 years for inverter, controller, battery. 10 years for solar panel.
Our customers are here all over the world
Customer visit&Exhibition picture share
FAQ
Q1: Are you a factory?
A1: Yes, we are a factory of inverter over 11 years, solar controller and solar generator since 2005 year.
Q2: Can you provide free sample?
A2: Yes, we will charge when first time to place order, return back the cost when our customer re-order.
Q3:How about the delivery
A3: would be on time since we have reasonable workshop working schedule and worker to support.
24 hours, 7 days online to provide service.
Sherry Young
Mob/WhatsApp: 0086-137 6062 9244
Skype: sherry412008
E-mail: sherry(AT)
Thank for your reading.
