China best price 12V 1000 watt solar inverter with battery back up
- GuangZhou
- T/T L/C D/P D/A Credit Card
You May Like
-
China supplier oem inverter,1KW 3KW,5KW ,12000 watt inverter with LCD Display for Home/ Office/ Industrial Use
-
HOT Selling 5kva CE Approved Competitive Price Pure Sine Wave Solar Power Inverter with controller
-
China manufacture supplies wholesale price 3 phase solar inverter with LCD display
-
China manufacture supplies wholesale price off grid /grid tie DC to AC 50/60HZ 24v 220v 3000W inverters
-
China price home solar use phase off grid 10KW pure sine wave solar inverter for MW project
-
china Top 10KW sine wave off grid solar home inverter for Dubai
Product Details
Place of Origin | Guangdong, China | Brand Name | xindun | |
Model Number | X9 | Output Power | 1 - 200KW | |
Output Type | Single | Size | 630*218*179mm | |
Weight | 10KG | Input Voltage | 12V | |
Output Voltage | 110V/220V/230V/240V | Type | DC/AC Inverters | |
Output Frequency | 50Hz/60Hz | Output Current | 20A |
Product Description

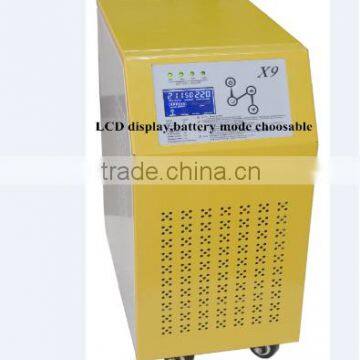

China best price 12V 1000 watt solar inverter with battery back up
Hybrid solar inverter:
It can automatically select the solar energy or grid power to charge battery based on the state of sunlight and battery voltage.
1. solar energy first or grid power first for different client's needs
2. integrated with AC charger and PWM/MPPT solar charge controller
3. Automatic transfer between solar and grid power within 4 ms
4. Sleep mode function for low energy consume
5. Battery type option which can prolong battery life
6. RS232 communication optional
7. 2 pieces intelligent fan that good for device cooling
Technical specification:
Model X9-T | 10212/24 | 15212/24 | 20212/24 | 30224/48 | 40224/48 |
Continuous power (W) | 1000W | 1500W | 2000W | 3000W | 4000W |
Surge capability (W) | 2000W | 3000W | 4000W | 6000W | 8000W |
System DC input (VDC) | 12V or 24VDC | 12V or 24VDC | 12V or 24VDC | 24V or 48VDC | 24V or 48VDC |
AC input | 170-275VAC(220V) 186-300VAC(240v) 85-138VAC(110V) 93-150VAC(120v) | ||||
AC Output | 110 / 120V/ 220V/240V ± 2% , 50HZ or 60HZ. Terminal | ||||
AC Output waveform | Pure Sine Wave | ||||
DC output | 12VDC Terminal | ||||
Efficiency | >85% | ||||
AC/DC Charger | optional, from 0A -Max 30A | ||||
Solar Charge Controller | MPPT/PWM, decided by customer, Max 50A | ||||
External battery back | 12V or 24VDC | 12V or 24VDC | 12V or 24VDC | 24V or 48VDC | 24V or 48VDC |
Breakers | with Breakers for AC Input , AC output | ||||
Battery low protection | yes | ||||
Over discharge protection | yes | ||||
Resume voltage | yes. When fault remove | ||||
Over voltage protection | yes | ||||
Overload protection | yes. | ||||
With cooling fan | yes, 2 pieces intelligent fan | ||||
Display | LCD for Inverter,charger,, DC load state and fault. LED for Battery Capacity state | ||||
Running Temperature | -10 to 45 degree | ||||
High temperature protection | YES | ||||
Short circuit protection | YES | ||||
Stand by | yes. continou ouput while > 25W | ||||
Communication | RS232 (optional) | ||||
Package Size(mm) | 358*254*480 | 390*265*535 | 450*340*565 | ||
Gross Weight KG | 19.5 | 22 | 31 | 35 | 41.5 |
product Size (mm) | 306*202*420 | 366*223*472 | 426*273*513 | ||
product weight( kg) | 16.5 | 19 | 27 | 31 | 46 |
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Payment Terms
1. Payment: T/T, Western Union, Paypal, Moneygram. 30% deposits, 70% balance before delivery time.
2. MOQ: 1 PCS
3. Warranty: 1 years for inverter, controller, battery. 10 years for solar panel.
