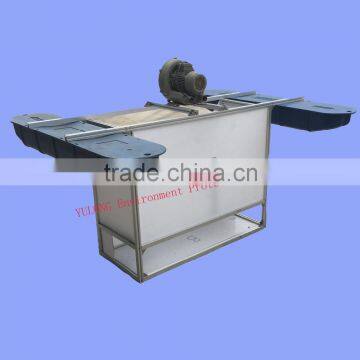

Micro Bubble Pond Aerator

Micro Bubble Pond Aerator---Pond aeration hose integrated unit

1.Micro bubble pond aerator consists ofair blower, aeration device, deflector and aerator box, etc.
2.The air flowsthrough blower into micro bubble aeration device, and effect oxygenation to thewater in the aerator box.
3.The poor oxygen water flows into aerator box thorughthe bottom deflectors, and the rich oxygen water flows out of the aerator boxthrough the top deflectors.
4.Multi-sets of pond aerators will form whirlpool inthe water.



1.The aerator bottom hasinstalledφ25 pond aeration hose,which can generate micro air bubbles from the nano air pores on the hosesurface.
2.The micro bubbles have larger contact surface and have longerretention time in the water. The micro bubbles have excellent oxygenation effect so that to greatly enhance the aeration capacity of the pond aeration.
3.YL-series micro bubble pond aerator utilize the density difference of mixing air water to form a negative pressure in the aerator box. The negative pressure suck up the bottom poor oxygen water into aerator, and push the inside rich oxygen waterout of the aerator through deflectors.
4.Multi-sets operation of micro bubble pond aerators can form a regular water flow in the whole pond, which largely enhace the surface area. The multi-sets operation can also drive the aroundwater and form whirlpools to activate the whole pond water for a best aeration effect.
5.YL-series pond aerator has mudguard design at the bottom which canprevent the mud from enterting the aerator box. This design protects not only the aerator but also the whole pond water clean from the stired mud. YL-series aerator can use two-phase power blower, it means this aerator could be applied in all kinds of power situations.

1. YL-series pond aerator can move on the water surface, change aeration flow direction and also could be fixed at regular location.
2. With the deflectors, YL-series aerator can regulate the water flow to activate the whole pond water for a large scale oxygenation work.
3. Noise and vibration free, has no impact to the water.
4. Clean water operation. Micro bubbles aeration, has no stired mud pollution.
5.All kinds of landform applicable, could be used in any shapes of pond.
6. Simple structure, highly integrated, swift installation, easy operation and maintenance.
7.High working efficiency, low investment and maintenance cost.
