Hydraulic CNC Press Brake Machine
- Shanghai Port
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | ALMACO | Model Number | HPC-300/3100 | |
| Machine Type | Press Brake | Raw Material | Steel Bar | |
| Material / Metal Processed | Other, all metal | Power | Hydraulic | |
| Automation | Automatic | Extra Services | Other, bending | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Welcome to Almaco Machine Tool Co., Ltd.
We are looking forward to bulding sincere and long-term business relationship with you
BEST QUALITY GOODS ****** LOWEST PRICE ****** PERFECT SERVICE
Hydraulic CNC Press Brake machine
Features:
All steel welded structure.vibrating treatment of ageing for removal of internal stress.with good rigidity and stability,then all body structure are being machined by CNC 5axis Center ,one time whole process to machining completed.
Torsion shaft forced synchronization of mechnaical limit stopper balance.with high precision
Intergrated hyduaulic transmission system.large range of speed regulation to transmission of the sliding block,stable and reliable performance
Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine turning and digital indication.
Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with tilting warp offset mechanism
For bending machine from 250t up synchronization mechanism of mechanical or electrical hydraulic transmission is fitted lower working talbe is fitted with warp offset mechnaism
Multi machine conbined operation is possible safe guide is optional.
MAIN TECHNICAL DATA:
A Main technic parameters
NO. | Name | PB-160/3200 | Unit |
1 | Normal force | 1600 | KN |
2 | Length of working table | 3200 | mm |
3 | Distance between columne | 2550 | mm |
4 | Throat depth | 320 | mm |
5 | Ram stroke | 150 | mm |
6 | Ram stroke adjustment | 110 | mm |
7 | Max. opening height | 400 | mm |
8 | Main motor power | 711 | KW |
9 | Weight | 8700 | kg |
BEQUIPMENT
NO. | Name | manufacturers |
1 | Main seals | NOK |
2 | Operated directional valve | YUKEN |
3 | Safety valve | JEOUGANG |
4 | Travel switch and pushbuttons | SCHNEIDER |
5 | Relay and contactor | SCHNEIDER |
6 | Inner gear pump | CML OR QT |
7 | Main motor | SIEMENS OR ABB |
Optional:
1) DRO type: SIKO (Germany) DRO USD1450.00 + HIWIN (Taiwan) ball screw USD1090.00
or
2) NC control system HT072 (Italy) USD3270.00 + HIWIN (Taiwan) ball screw USD1090.00
or
3) CNC control system DA41(inverter control) USD4900.00 + HIWIN (Taiwan) ball screw USD1090.00
Other optionals:
CE standard USD3500.00 (We have CE certificate, can make machines according to CE certificate)
900mm light curtain USD1545.00 or Laser safe guard AKAS (AU): USD5000.00
OTHER PHOTOS:

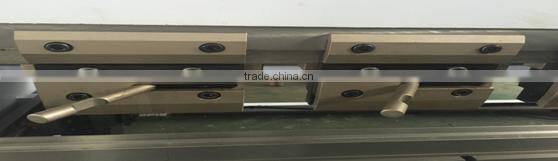

1)Quick lockin clamp for changing Up toolling

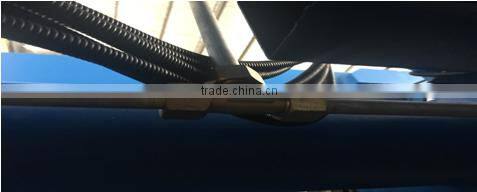

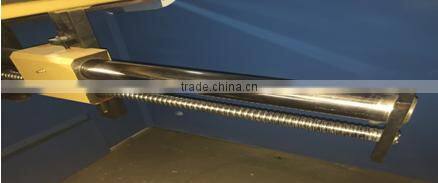

2)Ball screw
3)ADAPTER
Produced by this machine products
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50 or more countries & areas.
Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competive prices and quick & thoughtful after-sale service to cooperate with you.
certification:
customer visiting:
Our products are exported to more than 50 countries, more than 700 customers
1. Accept L/C, T/T,D/A,D/P type of payments
2. Regarding to the technical questions, pls contact our R&D
3. Any question, call us or send email, we will try our best to satisfy you
