Home > Products > press brake > ALMACO CNC Press Brake for Best Sale
ALMACO CNC Press Brake for Best Sale
- Shanghai Port
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | ALMACO | Model Number | HPC-110/3100 | |
| Machine Type | Press Brake | Raw Material | Steel Bar | |
| Material / Metal Processed | Other, all metal | Power | Cnc | |
| Automation | Automatic | Extra Services | Other, bending | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Welcome to Almaco Machine Tool Co., Ltd.
We are looking forward to bulding sincere and long-term business relationship with you
BEST QUALITY GOODS ****** LOWEST PRICE ****** PERFECT SERVICE

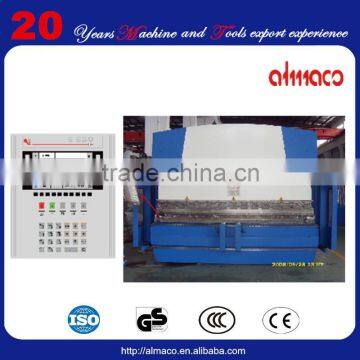

ALMACO CNC Press Brake for best sale
Specification
NO. | Name | 110/3100 | 160/3100 | Unit | Remarks |
1 | Normal force | 1100 | 1600 | KN |
|
2 | Worktable length | 3100 | 3100 | mm |
|
3 | Distance between uprights | 2600 | 2600 | mm |
|
4 | Ram stroke | 200 | 200 | mm |
|
5 | Max. opening height | 500 | 500 | mm |
|
6 | Throat depth | 400 | 400 | mm |
|
7 | CNC axis | 3+1 | 3+1 | axis | Y1,Y2,X +V |
8 | Main motor power | 11 | 15 | KW |
|
9 | Oil cylinder | 2 | 2 | pieces |
|
|
|
|
|
|
|
10 | Approx. weight | 7800 | 9800 | kg |
Y1 and Y2 axis —— both sides of beam linear scale (Y1 Y2) , to control both side oil cylinders. X axis——control back gauge moving forward or backward
V axis——crowning device of worktable
Main components
NO. | Name | manufacturers |
| |
1 | CNC system | ESA530 |
|
|
2 | Main system pressure control valve block | BOSCH | OR | HOERBIGER |
3 | Synchronal control valve block | BOSCH | OR | HOERBIGER |
4 | High pressure purolator | HYDAC |
|
|
5 | Linear scale | HEIDENHNAIN | ||
6 | Main seals | NOK |
|
|
7 | Stroke switch , pushbutton | SCHNEIDER |
| |
8 | Relay , contactor | SCHNEIDER |
| |
9 | Inner gear pump | QT |
|
|
10 | Rolling ball thread , rolling track | HIWIN |
|
|
11 | Servo motor | ESTUN |
|
|
Produced by this machine products

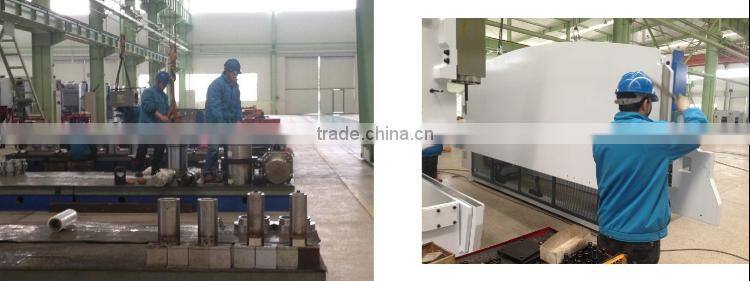

Pay more attention in the hydraulic system and assembly
Keep long time dry running with high pressure to inspection machine quality
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50 or more countries & areas.
Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competive prices and quick & thoughtful after-sale service to cooperate with you.
certification:
customer visiting:
Our products are exported to more than 50 countries, more than 700 customers
1. Accept L/C, T/T,D/A,D/P type of payments
2. Regarding to the technical questions, pls contact our R&D
3. Any question, call us or send email, we will try our best to satisfy you
Contact Us
- Almaco Machine Tool Co., Ltd.
- Contact nameBill Jin Chat Now
- Phone0086-0513-81105900
- Address3/F, No. 20# CBD, No.8 Taoyuan RD, Nantong, Jiangsu, P. R. C,, Nantong, Jiangsu
