Product Details
| Place of Origin | Guangdong, China | Brand Name | LW(longwei) | |
| Model Number | LW-305DCX | Output Power | Other, 0~150W | |
| Output Type | Single | Input Voltage | 220V | |
| Output Voltage | 0~30V | Output Frequency | 50/60Hz | |
| Output Current | 0~5A |
Product Description

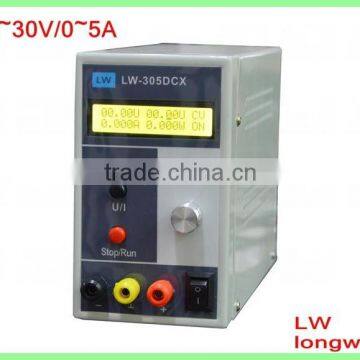

LW-305DCX PROGRAMMABLE POWER SUPPLY
Feature:
*CPU real-time tracking, make the output value can be long-term stability
*Four liquid crystal display voltage, current value and output value
*Programmable (MODBUS protocol, optional RS232, RS485 module) programmable, its built-in standard MODBUS communication protocol to make the power more integrated into the automation system
*Back flow function(can absorb external current of 500 ma), can make the output terminal when stop output or shutdown on voltage instantaneous down to zero volts (to load the zero impact)
*Set data storage function (can save set during the last shutdown voltage, current value)
*Perfect line protection function
*Apply for sticking technology small size,light weight
*The cooling system for intelligent temperature control fan
Application:
Charge batteries, PCB board manufacturing industry/motors, LED products, and dc fans test/electrofacing, electrolyzation, electronic components agening/laboratory, Electronic equipment, automatic Test Equipment/All other occasions need to use DC Power Supply
Specifications
Model
Param | Output V | Output A | Load regulation | Set data resolution |
Back to reading value resolution | Set data accuracy |
Back to the read value accuracy
| Ripple and noise |
LW-305DCX | 0-30V | 0-5A | 0.02%+20mV 0.02+2mA | 10mV 10mA | 10mV 10mA | 0.1%+20mV 0.5%+10mA | 0.1%+20mV 0.5%+10mA | ≤3mVrms ≤3mArms |
LW-3010DCX | 0-30V | 0-10A | 0.02%+20mV 0.02+2mA | 10mV 10mA | 10mV 10mA | 0.1%+20mV 0.5%+10mA | 0.1%+20mV 0.5%+10mA | ≤3mVrms ≤3mArms |
LW-1510DCX | 0-15V | 0-10A | 0.02%+20mV 0.02+2mA | 10mV 10mA | 10mV 10mA | 0.1%+20mV 0.5%+20mA | 0.1%+20mV 0.5%+20mA | ≤5mVrms ≤10mArms |
LW-603DCX | 0-60V | 0-3A | 0.02%+20mV 0.02+2mA | 10mV 1mA | 10mV 1mA | 0.1%+20mV 0.5%+5mA | 0.1%+20mV 0.5%+10mA | ≤3mVrms ≤3mArms |
LW-605DCX | 0-60V | 0-5A | 0.02%+20mV 0.02+2mA | 10mV 1mA | 10mV 1mA | 0.1%+20mV 0.5%+5mA | 0.1%+20mV 0.5%+10mA | ≤3mVrms ≤3mArms |
LW-1002DCX | 0-100V | 0-2A | 0.02%+20mV 0.02+2mA | 100mV 1mA | 100mV 1mA | 0.3%+200mV 0.5%+3mA | 0.5%+200mV 0.5%+5mA | ≤5mVrms ≤3mArms |
LW-1003DCX | 0-100V | 0-3A | 0.02%+20mV 0.02+2mA | 100mV 1mA | 100mV 1mA | 0.3%+200mV 0.5%+3mA | 0.5%+200mV 0.5%+5mA | ≤5mVrms ≤3mArms |
LW-1202DCX | 0-120V | 0-2A | 0.02%+20mV 0.02+2mA | 100mV 1mA | 100mV 1mA | 0.3%+200mV 0.5%+3mA | 0.5%+200mV 0.5%+5mA | ≤5mVrms ≤3mArms |
