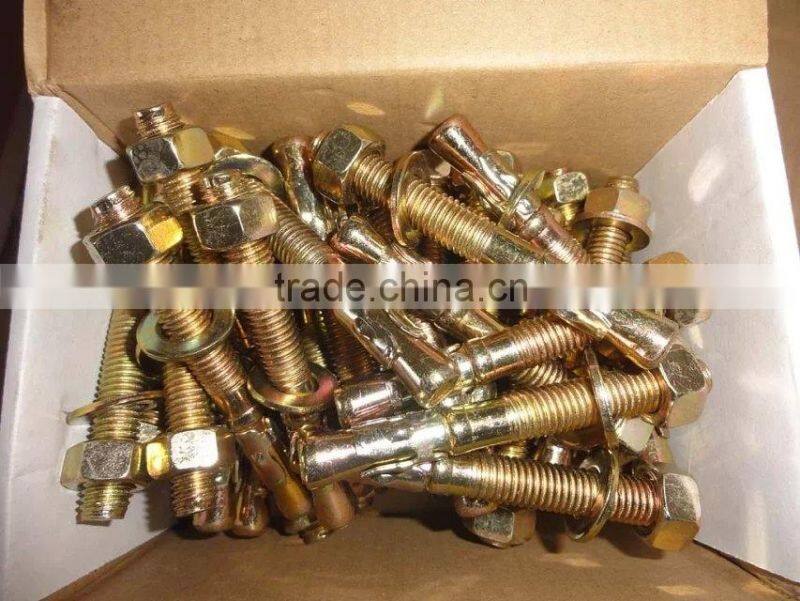

M16 Wedge Anchor With White Zinc

Yellow / blue white carbon / stainless steel   concrete anchor/yellow/bule white zinc plated wedge anchor /  concrete anchor bolt / concrete bolts fixing anchor

Other Names:

 through bolts, wedge bolt, stud anchors, wedge anchors,fix bolt

Type:

wedge anchors with three clip

wedge anchors with hilti clips

wedge anchors with stainless steel clip

standard:

ANSI :1/4*(1-3/4 ,2,2-1/4.........4-3/4)

          3/8*(2-1/2,2-3/4,3..........7-3/4)

          5/8*(3-1/4,3-1/2,3-3/4..........7-3/4)

          5/16*(2,2-1/4,2-1/2..............5-3/4)

          1/2*(2-3/4,3.........................7-3/4)

          5/8*(8,8-1/4,8-1/2.................11-3/4)

          3/4*(4,4-1/4,4-1/2.................11-3/4)

          1*(5,5-1/4,5-1/2....................16)

Din:M6*(40,45.................120)

      M8*(50,55.................150)

     M10*(60,65................400)

     M12*(70,75,80...........400)

     M14*(100,105..........300)

     M16*(80,90,100......300)

     M18*(100,105....300)

    M20*(100,105........350)

    M24*(120,130........400)

Detailed&Packing:

Packaging&Delivery

packaging:small white box+carton+pallet;small color box+carton+pallet;carton+pallet

deliery:25 to 35 days,according to order quantity

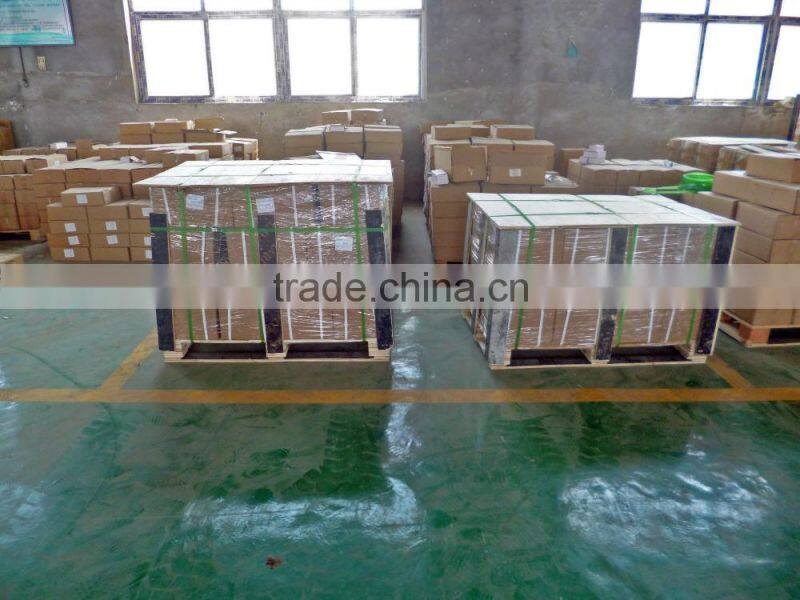

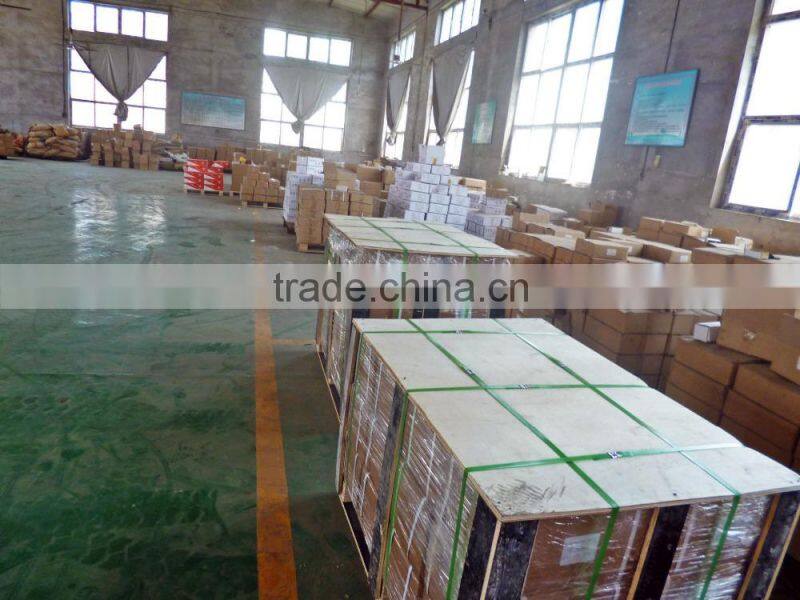

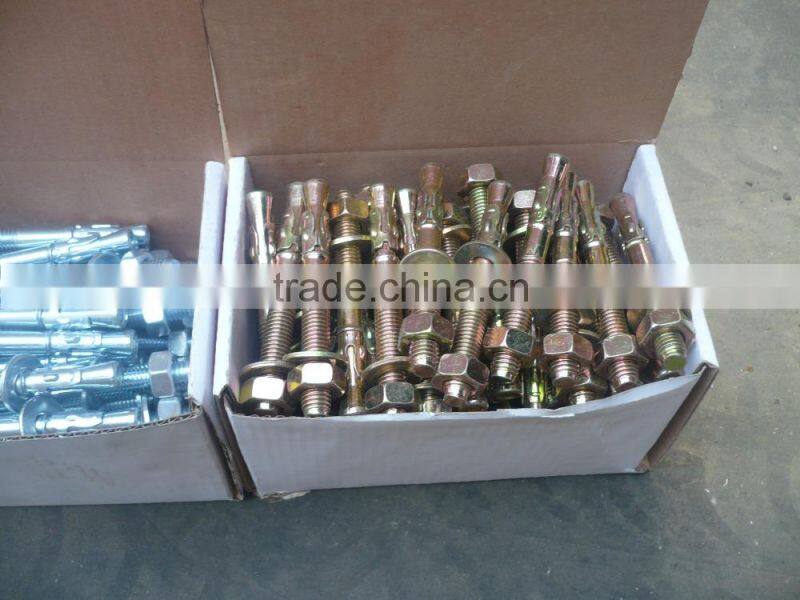

Packing Picture

Part 3.Picture Presentation

Installation

1.Drill the hole.

2.Cleaning the hole and insert he anchor into the hole.

3.Hammer the pin into the anchor.

Wedge anchor

1.Concrete wedge anchors' design allows them to anchor fixtures into concrete.

2.Concrete wedge anchors work by inserting them into a hole drilled into concrete.

3.The concrete wedge anchor is then expanded, wedging itself securely

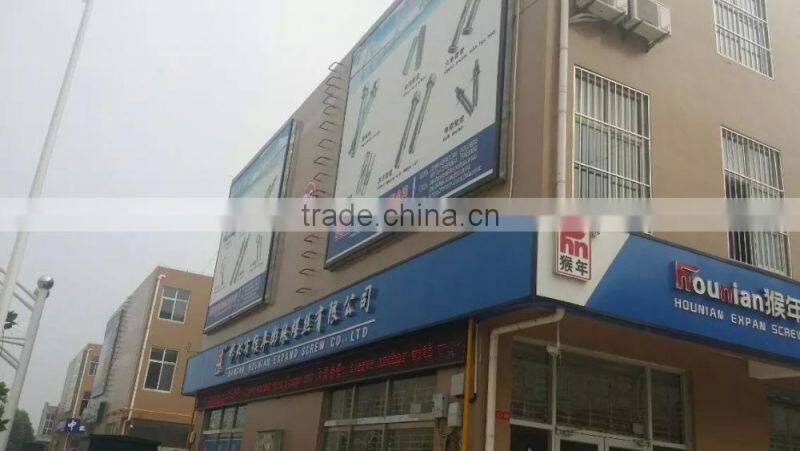

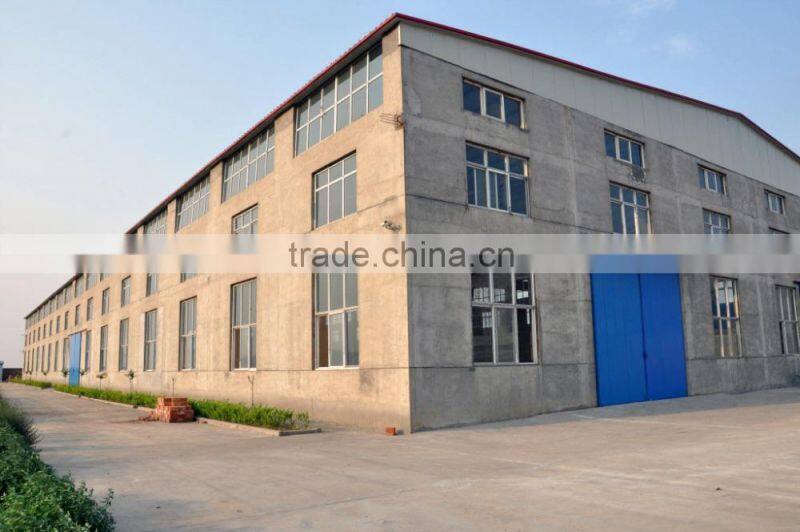

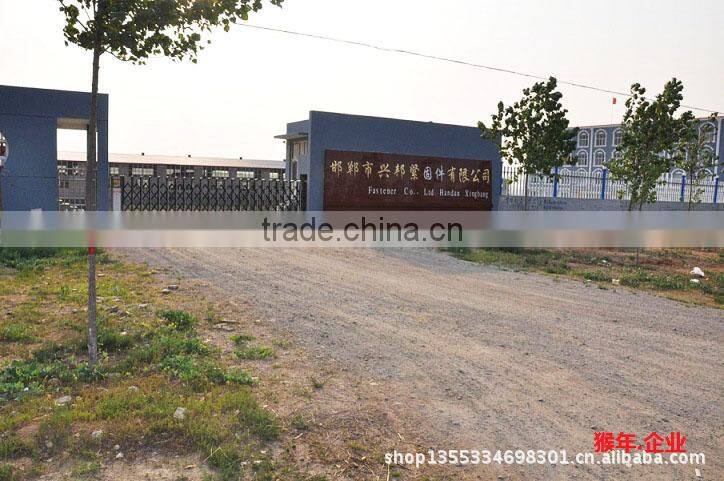

Company Information

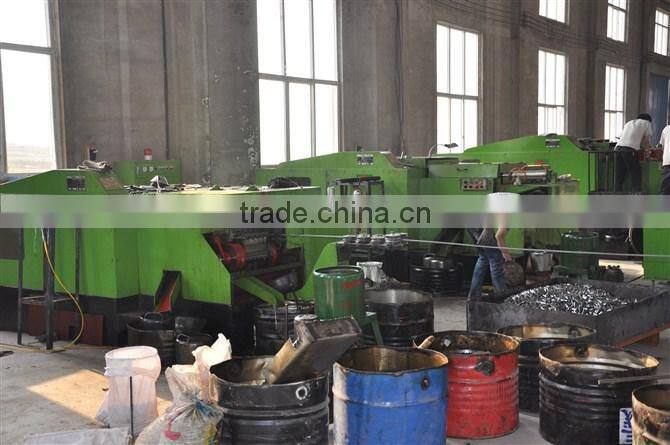

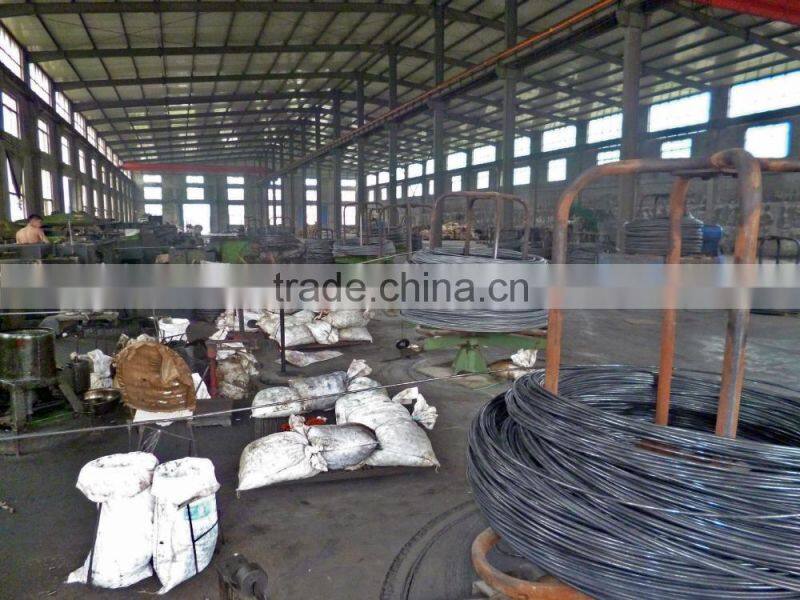

1.Our company is a professional manfacturer of hardware fasteners.our factory was founded in 1992,we have taiwan high-speed molding machine 11B,14B,17B,19B,24B. We are specificizing in the export business of fasteners which enjoys great popularity in the world market. You could contact us if any item is interest to you. We will do our best to meet you requirements.

2.We have many years of experience and specializing in fastener,Quality is stable for mass production.

such as:ANSI wedge anchor  DIN wedge anchor

              ANSI drop in anchor    Din drop in anchor   BS drop in anchor

              chemical anchor ,sleeve anchor (hook ,eye ,flange nut ,hex bolt )

              three-fixed anchor   four fisex anchor
