1/4 galvanized DIN drop in anchor supplier from Hebei

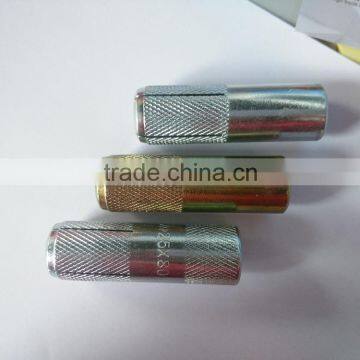

Drop in anchor/ concrete anchor/ ground anchor

straight type/ lip type/ knurled/ half knurled/no knurled is all available.

material: carbon steel Q195 or Q235

standard: DIN, ANSI, BS

surface treatment: elector galvanizing /  hot dip galvanized

color: blue white or yellow

mark: according to your requirement

origin: Handan, Hebei, China

sizes:

DIN standard:

M6*8*25, M8*10*30, M10*12*40, M12*16*50, M14*18*55, M16*20*65, M20*24*80

ANSI standard:

1/4"*20*25, 5/16"*18*30, 3/8"*16*40, 1/2"*13*50, 5/8"*11*63, 3/4"*10*80

BS standard:

1/4"*20*25, 5/16"*18*30, 3/8"*16*40, 1/2"*13*50, 5/8"*11*63, 3/4"*11*80

Different weight has different price.

installation:

step1:Drill or core a hole to the recommended diameter and depth. Clean the hole thoroughly with a hole cleaning brush. Remove the debris with a hand pump, compressed air, or vacuum.

step2:Insert the drop in anchor into the hole. Using a hammer and the appropriate setting tool, drive the expansion plug into the anchor until the shoulder of the tool rests against the surface of the anchor.

step3. Position the fixture, insert the bolt or threaded rod and tighten with a spanner.

Detailed&Packing:

Packaging&Delivery

packaging:small white box+carton+pallet;small color box+carton+pallet;carton+pallet

deliery:25 to 35 days,according to order quantity

Packing Picture

Part 3.Picture Presentation
