Product Details
| Place of Origin | Zhejiang, China | Brand Name | SCTI | |
| Model Number | ATOM500 | Type | Analog Camera | |
| Style | Mini Camera | Sensor | Other, infrared thermal sensor | |
| Technology | Infrared | Special Features | Other, Mini type |
Product Description

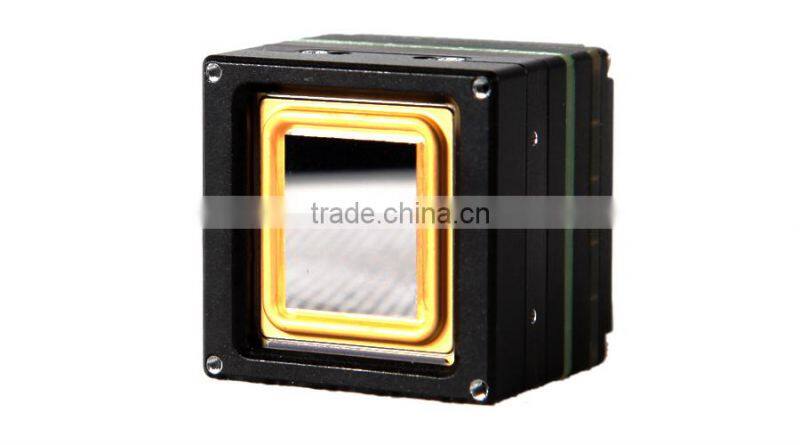

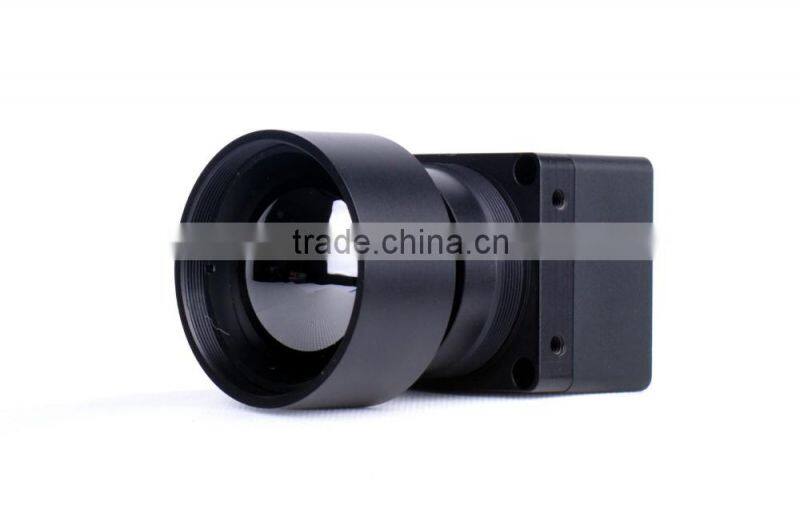

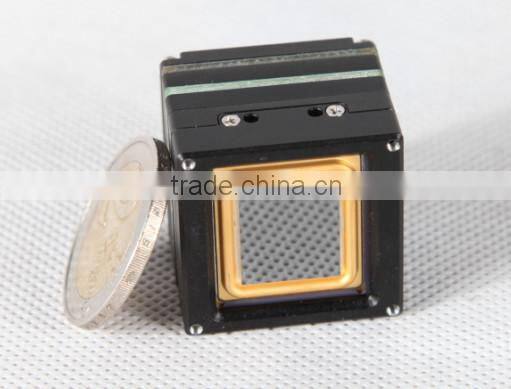

ATOM500 THERMAL/INFRARED IMAGING MODULE
Product features,
1. No shutting non-uniformity calibrating technology
2. Super lower power consumption: <0.8W
3. Instantaneous boot: <5S
4. Low working voltage: 2.5V-5.5V
5. Small size and light weight
6. High performance of temperature impact and environmental adapability
Applications,
Security and protection monitoring field, such as harbor, wharf, highway, coast defence and border defence, oil and gas field.
Technical parameters of ATOM500 INFARAED TERMAL IMAGING MODULE
Items | Core | ATOM700 |
Detector characteristic | Detector | Uncooled amorphous silicon FPA |
Array format/Pixel pitch | 640×480 / 17um | |
Sensitivity | ≤60mk at f/1.0 300K | |
Frame rate | 50Hz | |
Spectral range | 8~14um | |
Imaging process | Shutter calibration | No shutter technology |
Booting time | <3s | |
Noise reduction | Digital filter | |
Image resolution | 768×576 | |
Lens option | 7mm,9mm,10mm,12mm,19mm,35mm,40mm,50mm | |
Thermal imaging adjustment | Polarity | White hot /Black hot |
Mirror image | Horizontal/Vertical | |
Zoom | ×2,×4 | |
Manual Gain | Cycle adjustment | |
Auto Gain | Auto adjustment | |
Power | Working voltage range | DC: +2.5V~+5.5V |
Typical voltage | DC:3.6V | |
Power consumption | <0.5W | |
Anti reverse voltage | Yes | |
Anti over voltage | Yes | |
Environmental parameters | Working temperature | -20ºC~+60ºC |
Optional:-40ºC~+60ºC | ||
Storage temperature | -45ºC~+65ºC | |
Humidity | 5%~95% Non condensing | |
Vibration and shock | Vibration:GJB 150-16 2.3.1 | |
Axial:GJB 150-18 Experiment:7 100g/6ms | ||
Lateral:GJB 150-18 Experiment:5 40g/11ms | ||
Anti temperature impact | -5ºC/min(-40ºC~+60ºC) | |
Physical parameters | Weight | <32g |
Dimension | 28mm×28mm×24mm | |
Interface | Power input port | Yes |
Serial port | RS-232 | |
Analog video output | BNC(75Ω);Support dual video output | |
Digital video output | 14Bit(50Hz) | |
Keyboard | 4 buttons keyboard |
Analog video output
Plastic packing cases of different specifications
