Product Details
| Place of Origin | Zhejiang, China | Brand Name | SCTI | |
| Model Number | M700 | Type | Analog Camera | |
| Style | Mini Camera | Sensor | Other, infrared sensor | |
| Technology | Infrared | Special Features | Other, mini camera |
Product Description
M700 heat detection camera/temperature detection camera/human detection camera
Product features,
1. No shutter non-uniformity calibrating technology
2. Super lower power consumption: <0.65W
3. Instantaneous boot: <3S
4. Low working voltage: 2.5V-5.5V
5. Small size and light weight
6. High performance of temperature impact and environmental adapability
Applications,
Security and protection monitoring field, such as harbor, wharf, highway, coast defence and border defence, oil and gas field.
Technical parameters of M700 INFARAED TERMAL IMAGING MODULE
Items | Core | M700 |
Detector characteristic | Detector | Uncooled amorphous silicon FPA |
Array format/Pixel pitch | 384×288 / 17um | |
Sensitivity | ≤60mk at f/1.0 300K | |
Frame rate | 50Hz | |
Spectral range | 8~14um | |
Imaging process | Shutter calibration | No shutter technology |
Booting time | <3s | |
Noise reduction | Digital filter | |
Image resolution | 768×576 | |
Lens option | 12mm,19mm,25mm,35mm,40mm,50mm,75mm,100mm | |
Thermal imaging adjustment | Polarity | White hot /Black hot |
Mirror image | Horizontal/Vertical | |
Zoom | ×2,×4 | |
Manual Gain | Cycle adjustment | |
Auto Gain | Auto adjustment | |
Power | Working voltage range | DC: +2.5V~+5.5V |
Typical voltage | DC:3.6V | |
Power consumption | <0.65W | |
Anti reverse voltage | Yes | |
Anti over voltage | Yes | |
Environmental parameters | Working temperature | -20ºC~+60ºC |
Optional:-40ºC~+60ºC | ||
Storage temperature | -45ºC~+65ºC | |
Humidity | 5%~95% Non condensing | |
Vibration and shock | Vibration:GJB 150-16 2.3.1 | |
Axial:GJB 150-18 Experiment:7 100g/6ms | ||
Lateral:GJB 150-18 Experiment:5 40g/11ms | ||
Anti temperature impact | -5ºC/min(-40ºC~+60ºC) | |
Physical parameters | Weight | <40g |
Dimension | 42.5mm×41mm×20mm | |
Interface | Power input port | Yes |
Serial port | RS-232 | |
Analog video output | BNC(75Ω);Support dual video output | |
Digital video output | 16Bit(50Hz) | |
Keyboard | 4 buttons keyboard |
M700 heat detection camera/temperature detection camera/human detection camera

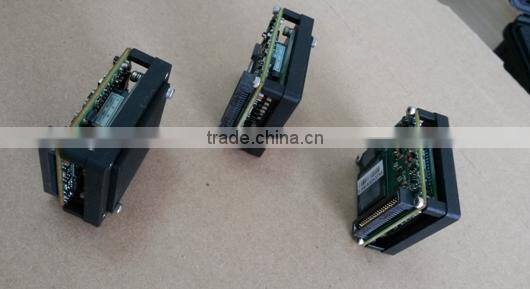

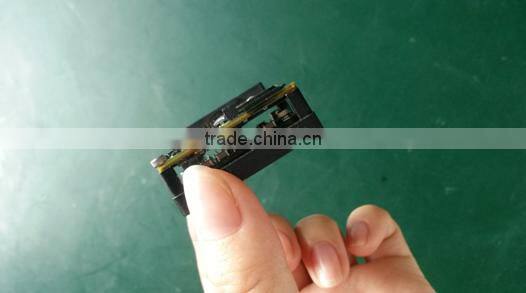

M700 infrared thermal imaging core
Analog video output
Plastic packing cases of different specifications
