M700 Night Vision Car Camera/night Vision Thermal Camera/night Vision Wildlife Camera

Items

Core

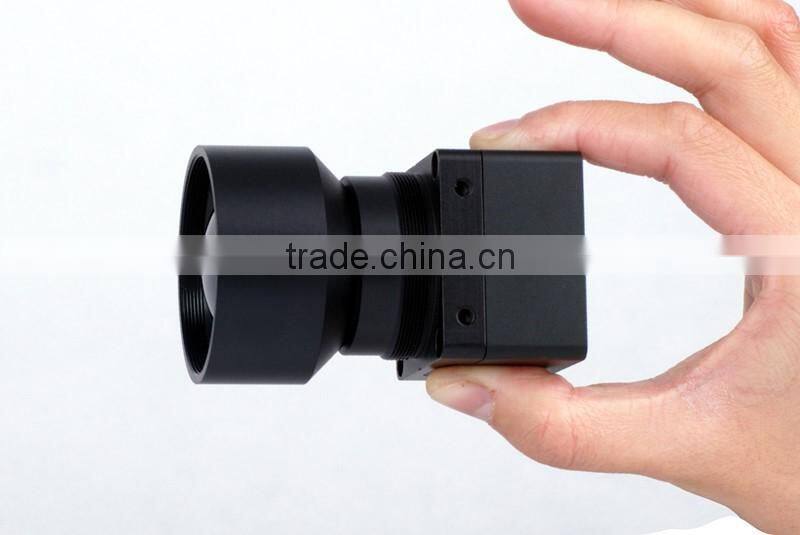

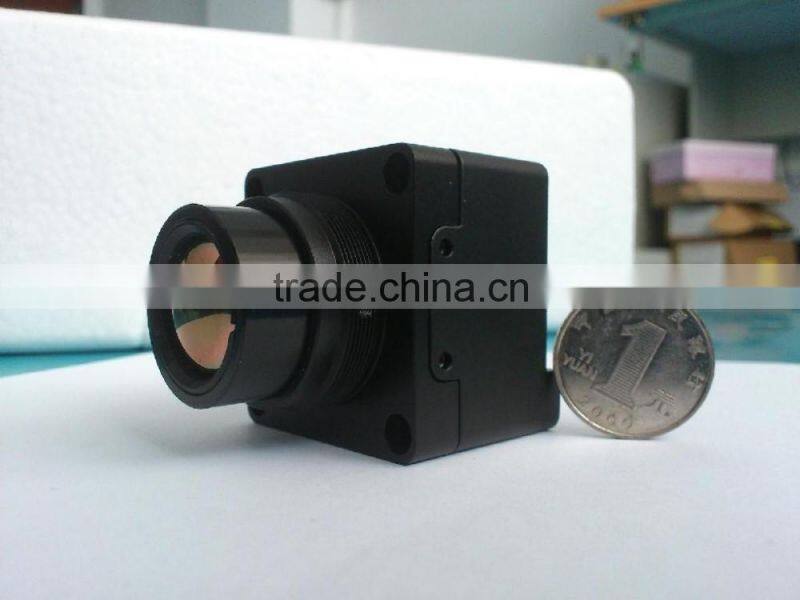

M700

Detector characteristic

Detector

Uncooled amorphous silicon FPA

Array format/Pixel pitch

384×288 / 17um

Sensitivity

≤60mk at f/1.0 300K

Frame rate

50Hz

Spectral range

8~14um

Imaging process

Shutter calibration

No shutter technology

Booting time

<3s

Noise reduction

Digital filter

Image resolution

768×576

Lens option

12mm,19mm,25mm,35mm,40mm,50mm,75mm,100mm

Thermal imaging adjustment

Polarity

White hot /Black hot

Mirror image

Horizontal/Vertical

Zoom

×2,×4

Manual Gain

Cycle adjustment

Auto Gain

Auto adjustment

Power

Working voltage range

DC: +2.5V~+5.5V

Typical voltage

DC:3.6V

Power consumption

<0.65W

Anti reverse voltage

Yes

Anti over voltage

Yes

Environmental parameters

Working temperature

-20ºC~+60ºC

Optional:-40ºC~+60ºC

Storage temperature

-45ºC~+65ºC

Humidity

5%~95% Non condensing

Vibration and shock

Vibration:GJB 150-16 2.3.1

Axial:GJB 150-18

Experiment:7 100g/6ms

Lateral:GJB 150-18

Experiment:5 40g/11ms

Anti temperature impact

-5ºC/min(-40ºC~+60ºC)

Physical parameters

Weight

<40g

Dimension

42.5mm×41mm×20mm

Interface

Power input port

Yes

Serial port

RS-232

Analog video output

BNC(75Ω);Support dual video output

Digital video output

16Bit(50Hz)

Keyboard

4 buttons keyboard
