Home > Products > Tyre shaping and curing press > 2014 Tyre Vulcanizer Machinery

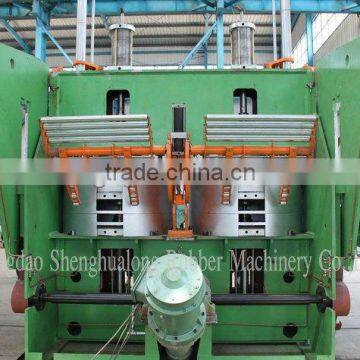

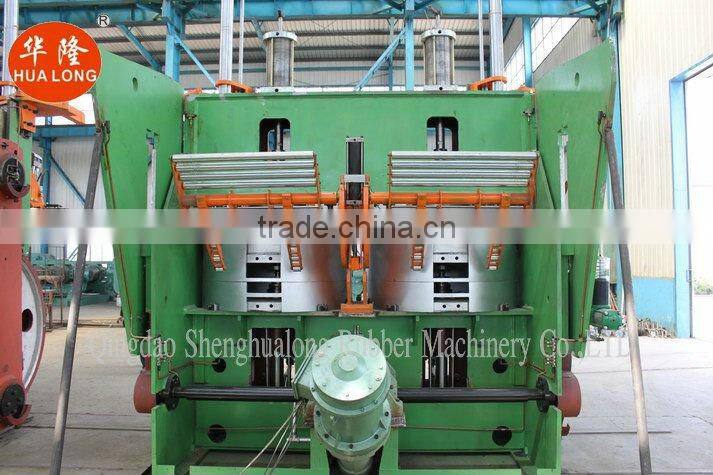

2014 Tyre Vulcanizer Machinery
- qingdao
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Type | Tire Machine | |
| Tire Machine Type | Tire Forming Vulcanizer | Place of Origin | Shandong, China | |
| Brand Name | HUA LONG | Model Number | 42"45"48"55"63.5"65.5" | |
| Voltage | 380 | Power(W) | 100KW | |
| Dimension(L*W*H) | 7M*5.5M*6M | Weight | 20T | |
| Certification | CE,ISO9001 | Warranty | 1 YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
rubber machinery tyre/tire vulcanizer machineryThis press is used for vulcanization of bias tyre and all steel radial typeThis press is used for vulcanization of bias type and all steel radial type with double half-moulds and segmented moulds,which can meet tyre loading,shaping,vulcanizing and unloading automatically. Bias type can be cooled automatically with post cure inflator.
type Technical parameter |
42’’ |
45’’ |
48’’ |
55’’ |
63.5’’ |
65.5’’ |
Mould opening way | turn | Horizon/turn | Horizon/turn | Horizon/turn | Horizon/turn | Horizon /turn |
Center mechanism mode | B | B | B | B | B | B |
Mould heating | Heating plate | Heating plate | Heating plate | Steampot(heating plate) | Steampot(heating plate) | Steampot(heatingplate) |
Mould quantity | 2 | 2 | 2 | 2 | 2 | 2 |
Max.Mould closing force(KN) | 1370×2 | 1720×2 | 1920×2 | 2890×2 | 4220×2 | 4580×2 |
Mould height(mm) | 155~381 | 230~457 | 250~500 | 245~455 | 254~642 | 254~635 |
Steam hollowware diameter inside | 1050 | 1145 | 1220 | 1310 | 1525 | 1640 |
Apply bead specification(in) | 12~16 | 12~17.5 | 14~20 | 16~20 | 19~24 | 19~24.5 |
Main motor power(KW) | 11 | 11 | 11 | 16 | 16 | 16 |
Size(L×W×H)mm | 4254×4410 ×3916 | 4116×4425 ×3840 | 5500×3540 ×3211 | 6108×5380 ×5590 | 7000×5520 ×6154 | 7000×5520 ×5950 |
