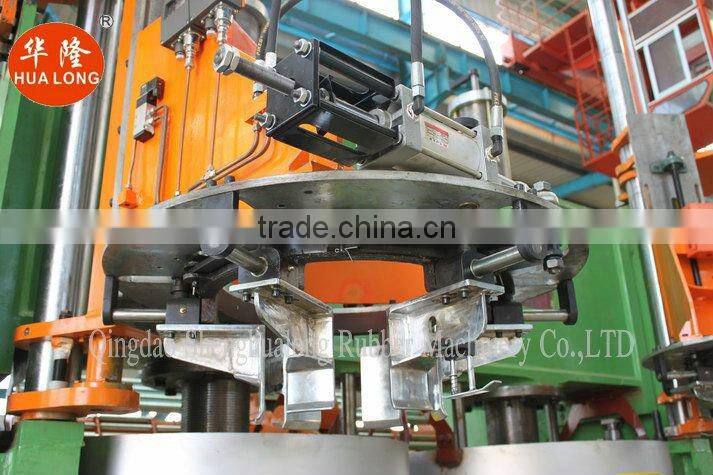

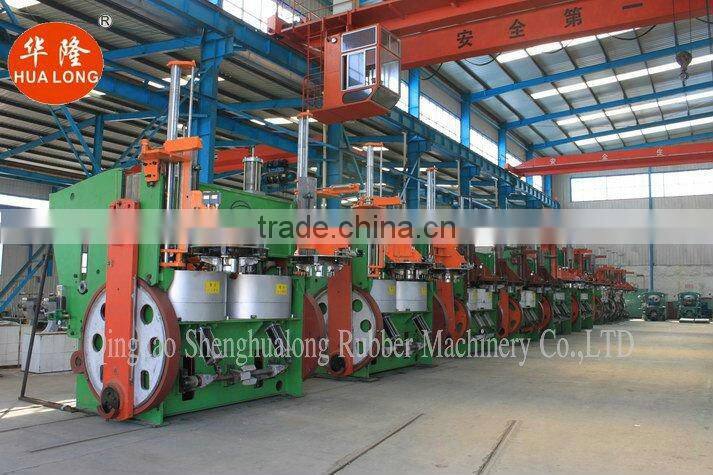

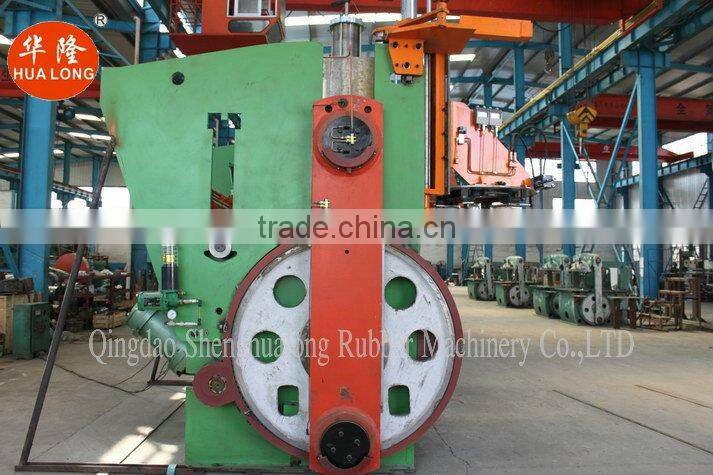

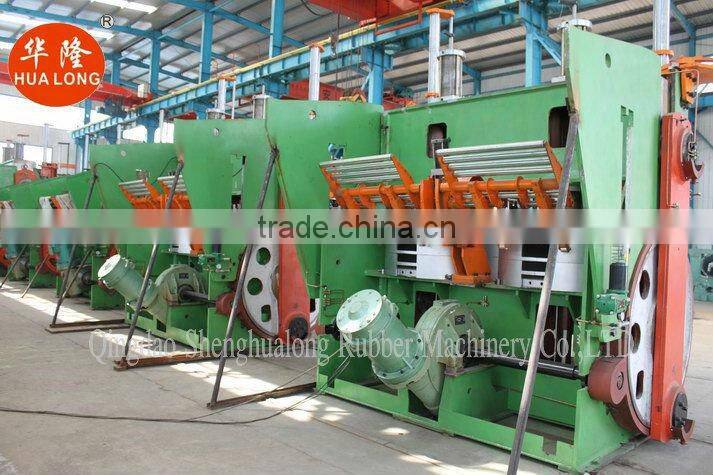

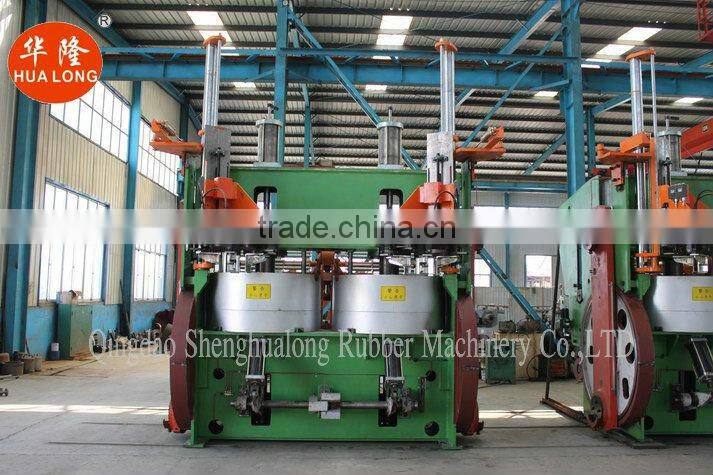

Tyre Shaping and Curing Press Tipe Vulcanization Machinery Type

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Tyre shaping and curing press		Place of Origin	Shandong, China
Brand Name	hualong		Model Number	42'' 45'' 48'' 55'' 63.5'' 65.5''

Tyre shaping and curing press

Technical parameter of tyre shaping and curing press

type Technical parameter	42’’	45’’	48’’	55’’	63.5’’	65.5’’
Mould opening way	turn	Horizon/turn	Horizon/turn	Horizon/turn	Horizon/turn	Horizon/turn
Center mechanism mode	B	B	B	B	B	B
Mould heating	Heating plate	Heating plate	Heating plate	Steampot(heating plate)	Steampot(heating plate)	Steampot(heatingplate)
Mould quantity	2	2	2	2	2	2
Max.Mould closing force(KN)	1370×2	1720×2	1920×2	2890×2	4220×2	4580×2
Mould height(mm)	155~381	230~457	250~500	245~455	254~642	254~635
Steam hollowware diameter inside	1050	1145	1220	1310	1525	1640
Apply bead specification(in)	12~16	12~17.5	14~20	16~20	19~24	19~24.5
Main motor power(KW)	11	11	11	16	16	16
Size(L×W×H)mm	4254×4410×3916	4116×4425×3840	5500×3540×3211	6108×5380×5590	7000×5520×6154	7000×5520×5950
