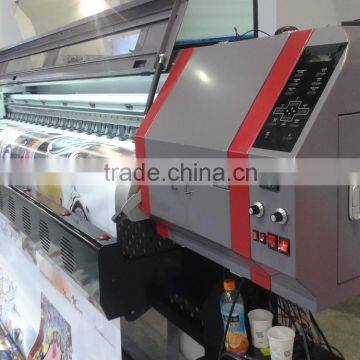

3.2m price flex banner printer

Machine name

INKJET PRINTER

Model NO.

JV-3200D

Media width

3.20m max

Print head

 original DX5 Printhead, double head

Resolution and speed

720*360 dpi  (4pass)

44m²/hour

360*1080 dpi (6pass)

38m²/hour

720*720 dpi  (8pass)

24m²/hour

1440*720 dpi (8pass)

15m²/hour

Max printing width

3.20m

Ink supply system

Auto constant ink supply; ink level detector; auto failure alerting

Cleaning method

Auto flushing; print head capping

Type of printing material

Coat paper, photo paper, pp paper, PVC, flex, banner etc.

Thickness of printing material

1.5mm~2.5mm

Auto Media Feeding & Take-up System

Equipped

Height of the printer level

The distance from the print head to the printing platform can be adjusted by 2mm~10mm

Heating System

Front heating& Backing heating &Front Hot Fan

Ink Type

Water base ink/ eco solvent ink

Double4 color(CMYK)

Ink capacity

220ml per ink tank

Print interface

USB2.0

Power Resources

Direct dye sublimation heater:

AC220V, 16A,50/60Hz

Printer:

AC100V~120V/AC220V~240, 2A, 50/60Hz

Operational Environment

Humidity: 40%~60%, Temperature: 20°C-25°C

Printing Software

Photo printer; Maintop; Seeget

Printer size

Length: 4.53m  Width: 0.93m  Height: 1.32m

Shipping size

Length: m  Width: m  Height: m

Max weight(NW)

150kg

Max weight(GW)

 170kg

Package form

Wooden case export standard
