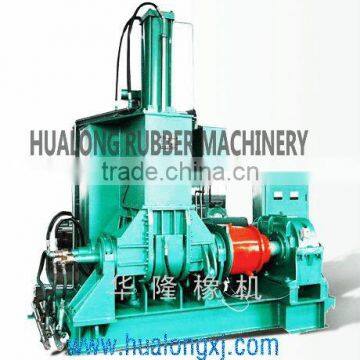

Making shoes machinery rubber kneader rubber machinery

Application:

The machine is mainly used for mixing and plasticating in rubber industry.

Main Parts:

Mixing device

Frame

Pressing ram device

Tilting device

Pneumatic control system

Transmission device

Rotor sealing device

Heating and cooling system

Reducer

Main motor

Control cabinet, operation box

Main Parameter

35lts Kneader

1.Total kneading volume of mixing chamber 75L

2.Total mixing volume of mixing chamber 35L

3. Main motor power 55KW

4. Tilting Motor Power: 2.2 KW

5. Tilting angle 140

6. Rotation speed of front/rear rotor: 30/24.5r/min

7. Compressed air pressure: 0.6-0.8MPa

8. Cooling water pressure: 0.2-0.4 MPa

9. Steam pressure for heating: 0.5-0.8 MPa

10. Overall size around (L*W*H) 3200*1900*2950mm

11. Weight around 6500kg

55L Kneader

1. Total chamber volume: 125L

2. Total working volume: 55L

3. Main motor power 75KW

4. Tilting Motor Power: 2.2 KW

5. Rotation speed of front/rear rotor: 30/24.5r/min

6. Compressed air pressure: 0.6-0.8MPa

7. Cooling water pressure: 0.2-0.4 MPa

8. Steam pressure for heating: 0.5-0.8 MPa

9. Overall size around(L*W*H): 3840*2100*3080mm

10.Weight around 7800kg

75L Kneader

1. Total chamber volume: 175L

2. Total working volume: 75L

3. Main motor power 110KW

4. Tilting Motor Power: 3 KW

5. Tilting angle 140

6. Rotation speed of front/rear rotor: 30/24.5r/min

7. Compressed air pressure: 0.6-0.8MPa

8. Cooling water pressure: 0.2-0.4 MPa

9. Steam pressure for heating: 0.5-0.8 MPa

10. Overall size around (L*W*H):3325*2600*3200mm

11. Weight around 10230kg

110L Kneader

1. Total kneading volume of mixing chamber 250L

2. Total mixing volume of mixing chamber 110L

3. Main motor power 185KW

4. Tilting Motor Power 7.5 KW

5. Tilting angle 140

6. Rotation speed of front/rear rotor: 30/24.5r/min

7. Compressed air pressure: 0.6-0.8MPa

8. Cooling water pressure: 0.2-0.4 MPa

9. Steam pressure for heating: 0.5-0.8 MPa

10.Overall size: 4075*2712*3580mm

11.Weight around 14970kg
