Home > Products > Led standard power supply > 100w 48v dc power supply

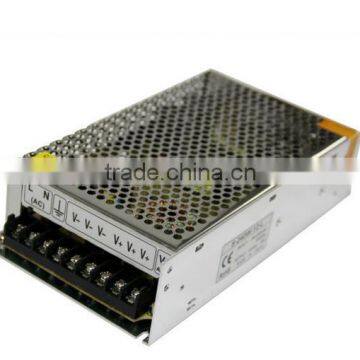

100w 48v dc power supply
- Shenzhen
- T/T Credit Card
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | zoyea | |
Model Number | S-100 | Output Power | Other, 100w | |
Output Type | Single | Input Voltage | Other, 90-264v | |
Output Voltage | 24v+_0.5v | Output Frequency | 47-63HZ | |
Output Current | 4A |
Product Description
Specifications
1 48v dc power supply2 CE&Rohs
3 2 years warranty
4 100% Full load test
5 ODM or OEM is welcome
Features:
1. Constant Voltage mode power supply
2. Universal AC input(100-240V)
4.Withstand 300VAC surge input for 5seconds
5. Protections:Short circuit/Over load/Over current
6. Cooling by free air convection
7. 100% full load burn-in test
8. High Reliability
9. Meet RoHS/CE
10. 2 year warranty
Specification: 48v dc power supply
Product Electric Parameters | |||||
Input specification | Input voltage | AC90V---264V | |||
Input frequency | 47-63Hz | ||||
Input surge | 20A@120VAC 40A@230VAC | ||||
Output specification | Output voltage can be adjusted | ±10% | |||
Start-up time | leq1S(input230V,Io=100%) | ||||
keep time | more than or equal to 20mS (input230V,Io=100%) | ||||
Voltage regulation | (Full load) leq 0.5% | ||||
Protection function | Overload protection | 105% - 150% rated power, automatic recovery | |||
Over-voltage protection | 105% - 150% of the rated voltage | ||||
Insulation intensity | Input---output | 1500VAC/1min | |||
Input---ground | 1500VAC/1min | ||||
Input---ground | 500VAC/1min | ||||
Safety standards | According with GB4943, UL60950-1,EN60950-1 standards. | ||||
E M C standards | GB9254, EN55022 class A EN61347-2-13:2008 | ||||
Environmental | working temperature | - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) | |||
Storage temperature | - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) | ||||
height above sea level | leq2000M | ||||
Structure | Size(mm) | 160(L)*98(W)*42(H) | |||
Cooling method | Cooling method | Natural cooling air convection | |||
Weight | 0.375KG/PCS | ||||
Product Type Table | |||||
Product model | output specification | ripple, noise | efficiency | ||
S-100-3.3 | 3.3V | 30A | 50mV | 85% | |
S-100-5 | 5V | 20A | 50mV | 85% | |
S-100-9 | 9V | 11A | 70mV | 85% | |
S-100-12 | 12V | 8.5A | 100mV | 85% | |
S-100-15 | 15V | 7A | 100mV | 85% | |
S-100-24 | 24V | 4.5A | 100mV | 85% | |
S-100-28 | 28V | 3.6A | 100mV | 85% | |
S-100-36 | 36V | 2.8A | 120mV | 85% | |
S-100-48 | 48V | 2.3A | 240mV | 85% | |
