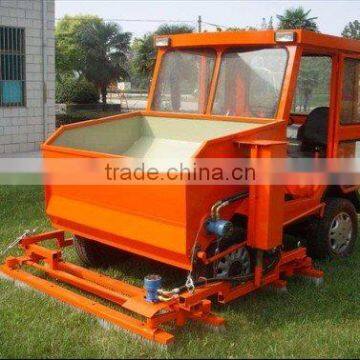

synthetic lawn tool

Model

CSSCJ-D

Size /mm

2760×1900×1930(LWH)

Capacity of charging spout /L

650

Empty weight /kg

1250

Loading weight /kg

1000

Wheel base /mm

1500

Wheel tread /mm

1225

Ground clearance /mm

140

Minimum turning radius /mm

4000

Speed /km/h

Shift

Low speed

High speed

Shift 1

1.90

7.40

Shift 2

4.42

13.89

Shift 3

5.96

22.09

Reverse

4.57

——

Model

ZS1100B

Type

horizontal engine,four stroke,water-cooled engine

Rating power

12.13kw(16HP)

Rating revs

2200rpm

Clutch

single disc, Dry friction, and usual coalescent type

Mission accelerator

gear type, high speed and low speed, 3 forward shift, a reverse gear

Drive shaft

tubular, Hotchkiss type drive

Final transmission

spiral angular wheel

Final transmission ratio

6.833

Differential gear

angular wheel type

Half shaft

semi-floating axle

Arrester

drum brake, mechanical handling

Chassis tructure

channel steel jointing

Front axle

drive axle

Rear axle

steering axle

Tire size

195/60×R14

Tire pressure /MPa

0.250

Rear wheel positioning

Toe-in/mm

5~7

Kingpin inclination

6º

Wheel rake

1º

Steering gear type

Wheel rake

Steering gear ratio / middle

18.15

Model of the gear pump

CBN-E310

Model of the control valve

ZS1-L10E-TW-20, 34SM-L10H-W

Model of the overflow valve

YF-L10H2

Model of the throttling valve

MG8

Mode of the cylinder

HSG32/20×150—a single back ear

Hydraulic motor

BMR125—standard type

Hydraulic system pressure

16MPa
