Home > Products > Raymond mill > Production Upgrading 3R2615 Stone Pulverizer Mill
Production Upgrading 3R2615 Stone Pulverizer Mill
- Qingdao Guangzhou Shanghai etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Ceramic and Raw Material Raymond Mill
-
Raymond Mill Crusher Pulverizer Supplier Mining Machinery
-
High Quality Raymond Mill Price for Grinding Limestone
-
Design and Performance Mineral Roller Mill
-
High Quality of Professional Manufacturers of Vibration Grinding Mill
-
Mining Grinder Barite Grinding Processing Plant
Product Details
| Condition | New | Type | Raymond Mill | |
| Motor Type | AC Motor | Power(W) | 75kw | |
| Capacity(t/h) | 1-35t/h, refer to the model of the machine | Place of Origin | Henan, China | |
| Brand Name | Dingsheng | Model Number | DS-2615,DS-2715,DS-3016,etc., DS-2615,DS-2715,DS-3016,etc. | |
| Dimension(L*W*H) | 5300x4100x5200 | Weight | 5t | |
| Certification | CE,ISO,SGS | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Company Description:
Zhengzhou Dingsheng Machine Manufacturing Co., Ltd,it is a joint-stock enterprise,which is located in Zhengzhou City,the capital of Henan province.The corporation was established in 2002.
We have our own manufacturing factory.With the innovation and optimization of the industry,we are marketing our products into international market,and the export business is expanding rapidly.
Introduction of 3R2615 stone pulverizer mill :
This machine is mainly used to make the ore into powder,such as metallurgy,building materials,
chemical and mining.Mine mill can product powder form various non-flammable and non-explosive mineral materials whose mohs hardness is below 9.3 and humidity below 6%,etc.
Working principle of 3R2615 stone pulverizer mill :
Load the stuff for grinding evenly and continuously into the grinding chamber of the main frame.Due to the centrifugal force in rotation,the roller swings go outward and presses closely upon the ring.The shovel carries the stuff to the space between the roller and ring.When the roller rolls,the stuff is thus grinded.
Specification of 3R2615 stone pulverizer mill :
Model | DS-2615 | DS-2715 | DS-3016 | DS-3216 | DS-4121 | DS-4628 | ||
Roll grinding number | 3 | 3 | 3 | 4 | 5 | 7 | ||
Roll grinding diameter | 260mm | 270mm | 300mm | 320mm | 410mm | 460mm | ||
Roll grinding height | 150mm | 150mm | 160mm | 160mm | 210mm | 280mm | ||
Maximum feed size | 15mm | 15mm | 20mm | 25mm | <30mm | <35mm | ||
Output size(mm) | 0.044--0.165 | 0.044--0.165 | 0.044--0.165 | 0.044--0.165 | 0.095--0.033 | 1.9--0.045 | ||
Main power(kw) | 18.5 | 22 | 30 | 37 | 75 | 185 | ||
Finished Product fineness
| 0.125mm |
Capacity (t/h)
| 2.2-3.0 | 2.3-2.8 | 2.5-3.2 | 3.2-4.5 | 6-9.5 | 22-35 |
0.075mm | 1.2-2.0 | 1.8-2.3 | 1.9-2.6 | 2.4-3.1 | 4.5-8 | 15-22 | ||
0.044mm | 0.8-1.2 | 0.9-1.7 | 1.0-2.0 | 1.0-2.5 | 3-5 | 10-15 | ||

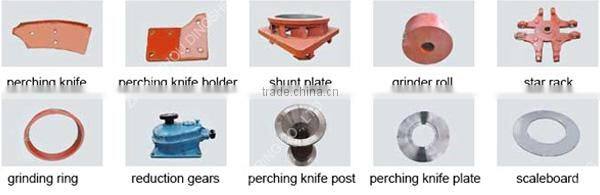

Photos of 3R2615 stone pulverizer mill :
Packaging and shipping for 3R2615 stone pulverizer mill :
After-sales service for 3R2615 stone pulverizer mill :
1.Spare parts supply
2.Erection and commissioning
3.One year guarantee for main mechanism
If any questions,please feel free to contact me directly!
