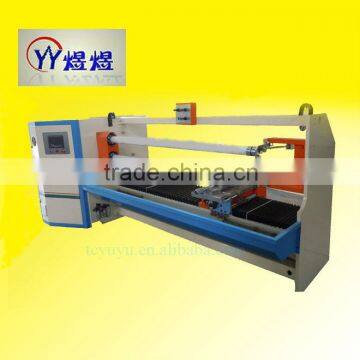

adhesive tape coil cutting machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, Machinery & Hardware
Packaging Type	Case	Packaging Material	Wood
Automatic Grade	Automatic	Driven Type	Other
Place of Origin	Jiangsu, China	Brand Name	YUYU
Model Number	YU-703	After-sales Service Provided	Engineers available to service machinery overseas

Application field:
Suitable for cutting various log roll materials such as Insulation tape/polyester tape/ PVC/OPP/PE/Masking

Features:

Main driving parts: AC motor with inverter is employed and the acceleration and deceleration are fast and stable.
Central control unit: programmable central control is used and various sizes can be set on the same shaft by automatic transfer and cutting.
Operating panel: all functions are operated on the LCD touch panel.
Cutting roll positioning system: cutting roll positioning is controlled by servo motor. The imported high precision ball screw is applied to set the size and the liner slide rail is to bear the load of the utter seat.
Auto adjusting the circular blade angle: the servo motor is used to calculate the circular blade angle and the angle is subject to different materials. The cutting angle is changed directly when the cutting surface is not smooth, so the efficiency is improved.

Technical parameters:

valid width	1.3m or 1.6m
Max. cut diameter	150mm
min. slitting width	3mm
inside diameter of paper core	32-76.2mm
blade drive motor	3hp
material roll drive motor	5hp
blade diameter	350mm
weight	1450kg
machine dimension(LWH)	379015501750
Max. Cutting speed	35cuts/min
