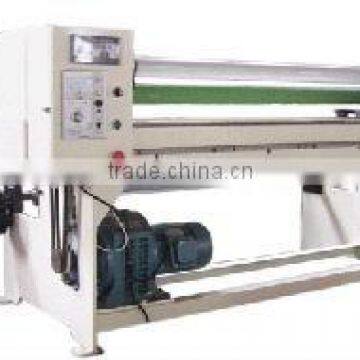

Manual Rewinding machine/semi rewinder

FOB Price

USD $1 - $1 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, steel blade
Application	carious	Place of Origin	Jiangsu, China
Brand Name	YUYU	Model Number	YU-706W
Rated Power	3hp	No-Load Rotational Speed	35cuts/min
Saw Blade Diameter	200MM	Max. Cutting Depth	150MM
Dimensions	205011601130(LWH)	Voltage	220V/380V/440V
Power(W)	3HP	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Features:

It has the combined function of rewinding and cutting.
Leveling cutting and manual feeding of cutter are applied to ensure smooth cutting surface.
It equipped with cutting width gauge for quick and stable positioning.
Main shaft adopted step-less adjusting electro-magnetic motor to suit cutting requirement of different materials.
It’s equipped with length counter that can automatically calculate the rewinding length and stop the machine when necessary. And the operation is convenient.
The smooth roller is coated with Teflon to fully prevent glue adhering.
The cured rubber rolls is adopted to facilitate adjustment and ensure the high quality of the products.

Technical parameters:

valid width	1300mm
cutting width	3-1300mm
inside diameter of paper core	32-76.2mm
Max. cutting diameter	150mm
main motor	3HP
weight	800kg
machine dimension(LWH)	205011601130mm
Max. cutting speed	30cuts/min
