Commercial Use Two Roller Rubber Tire Crusher
- Qingdao/Shanghai/Guangzhou
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Rubber Cutting Machine, Double shaft | |
| Place of Origin | Henan, China | Brand Name | Dingsheng | |
| Model Number | 600 | Voltage | 380V/50HZ | |
| Power(W) | 18.5kw*2 | Dimension(L*W*H) | 2600*1500*1400mm | |
| Weight | 3200kg | Certification | ISO,SGS | |
| Warranty | 1 year, 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1.Introduction to the two roller rubber tire crusher:
Double shaft shredder can also be called double roller shredder,it’s generally used to break
materials that is difficult to tear like waste plastic,rubber,metal,fiber,paper,wood,electrical
parts,cables and other solid materials,such as outlet material,plastic head,PET bottles,cardboard,board,wood,plastic barrels.The double shaft shredder can process the materials into 3-10cm product.
2.Features of the two roller rubber tire crusher:
1.Automatic reverse protection function, energy-efficient and intelligent protection;
2.Thick and heavy moving blades, high efficiency for crushing;
3.The moving blades and fixed blade are all made of alloy steel casting, with stoutness and long service life;
4.The Iron frame plate is thick, high torque resistance, very strong;
5.Easy to adjust, Low maintenance cost, economy and high durability.
6.Per unit output is value of theoretical calculation; specific capacity is depended on the actual materials density and shape.
3.Structure advantages:
1.The crusher body
The main body is welded by high-quality steel plate,eliminating stress treatment / overall machining, to ensure high stability of whole machine during prolonged heavy work.

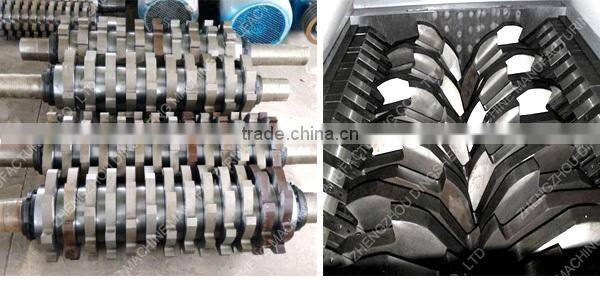

2.Knife / fixed blade
Knives are built by dedicated special alloy tool steel through forging,precision machining,multiple heat treatments and cryogenic heat treatment technology.The toughness & hardness is consistent,you can fix and use again to ensure their cutting and service life.Fixed knives are installed by patented hook-type to maintain/replace the tool more easily.
4.Specification of the two roller rubber tire crusher:
Type | 1900 | 1500 | 1200 | 1000 | 600 | ||
Main Motor(kw) | 75KW*2 6p 8p | 55KW*2 6p 8p | 37KW*2 6p 8p | 30KW*2 6p 8p | 18.5kw*2 6p 8p | ||
Roller Speed(r/min) | 20,30 | 20,30 | 20,30 | 25,35 | 30,40 | ||
Capacity(t) | 10-25 | 8-15 | 5-8 | 3-6 | 1-2 | ||
Cutter No. | 41 | 36 | 36 | 28 | 18 | ||
Product Size(cm) | 3-10 | 3-10 | 3-5 | 3-5 | 3-5 | ||
Dimensions | 6×2×2.8m | 5.5×1.8×2.5 m | 3.5*1.7*1.6m | 3.5×1.7×1.4m | 2.6×1.5×1.4m | ||

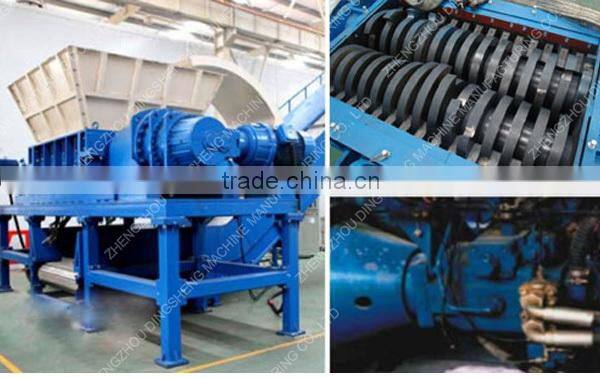

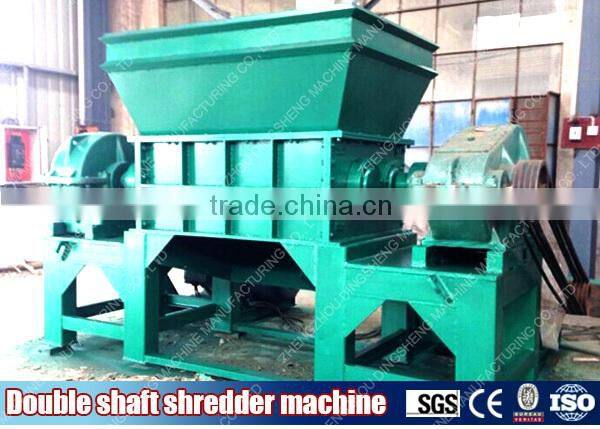

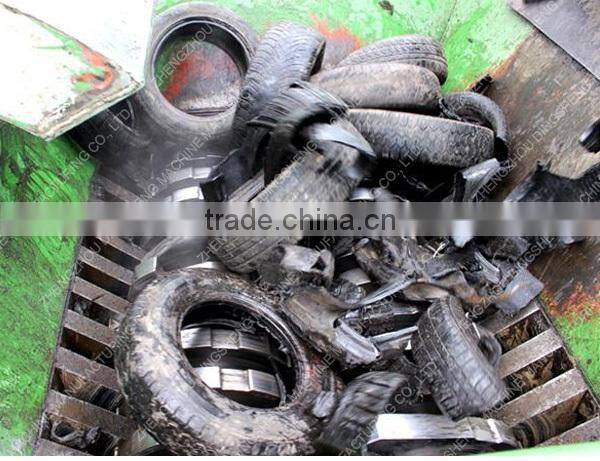

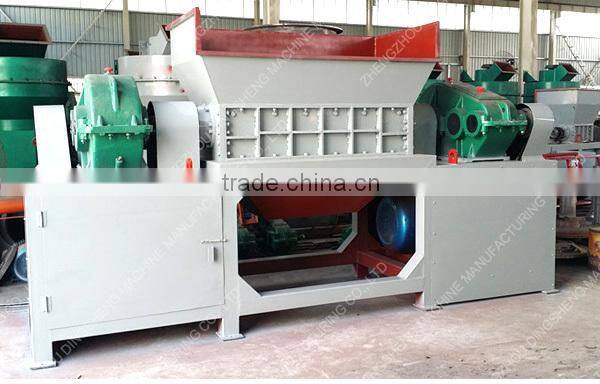

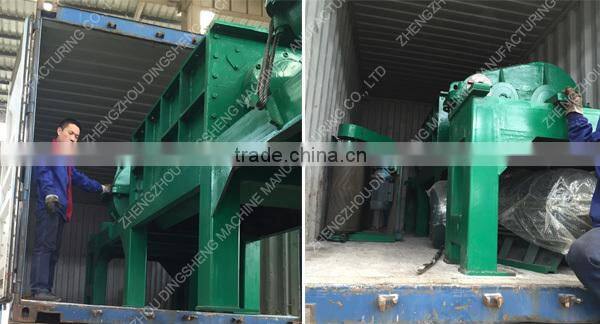

5.Machine Photoes:

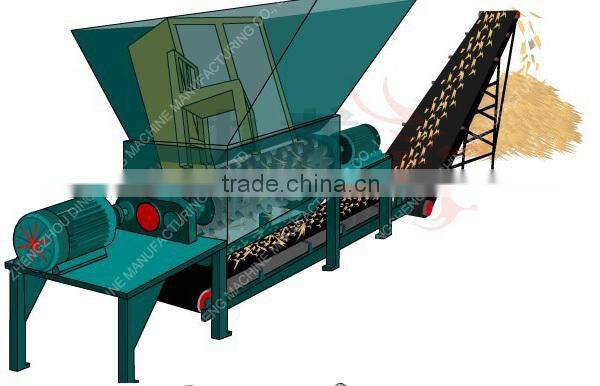

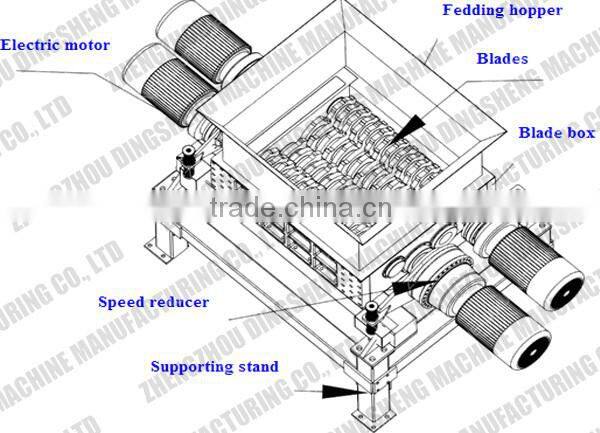

6.Structure diagram:
Our unique service over others:
1.13 years experiences in this industry and professional technical team.
2.All material test before using to manufacture and quality assured.
3.Good feedback from clients after operating this machine.
4.5 year Gold Supplier and site checked by Alibaba.
Our Gurranty:
1.Quality:Material adopt according to your choice and machine operation test before delivery.
2.Price:Factory direct sale service,most competitive over other companies.
3.Service:Always online technical service any time you need.
4.Packing:Standard export wooden box packing and marks at your request.
Zhengzhou Dingsheng Machine Manufacturing Co.,Ltd was established in 2002.We have our own manufacturing factory.With the innovation and optimization of the industry,we are marketing our products into international market,and the export business is expanding rapidly.
Welcome to contact me freely if you have relative needs about our shredder machine.
