Automatic Clear Air Bottle Cleaning Machine, Bottle Cleaner, Bottle Washing Machine Quality Choice
- Any Port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | SINOPES | |
| Model Number | QX |
Product Description

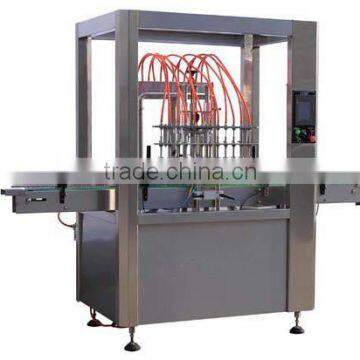

Automatic Clear Air Bottle Cleaning Machine, Bottle Cleaner, Bottle Washing Machine
General Features:
Automatic Bottle Rinser for the application of water and air rinsing to clean plastic or glass bottles before filling. The machine is composed by a short conveyor, bottle index wheel, water collect tank, bottle snap roller, water/air filter, water/air blowing system. The bottle loading/unloading through loading/ unloading turntable (alternative Ø620mm or Ø900mm), or directly from an production line.
Technical Features:
Kind of bottle* | Round hard plastic/glass bottle |
Bottle size* | Min. Ø 40mm Max. Ø80mm |
Speed | 30~80bpm |
Pure compressed air require | 150L/min, 3~4bar |
Pure water require | 1000L/hour, 2~3bar |
Filter | PP material, pore size 0.4um |
Power* | 220V 50/60Hz 1.2kw |
Machine size mm | Length 1400, width 1000, height 1300 |
Conveyor length mm | 2000 |
Machine weight: | 800kgs |
* Other sizes on request
Function and Technical Standard:
S/N | ITEM | DESCRIPTION |
| Conveyor | 1) Length: 1200mm 2) Top chain belt material: POM 3) Belt width: 82.5mm |
| Water collect tank | 4) Volume: 100L 5) Collect water/air and drain away, no recycle use 6) Option level control for ultrasonic clean system |
| Index wheel | 7) Material: Nylon 8) Index wheel changeable to fit to different bottle diameter 9) Index wheel is driven by high precision indexing cam box, ensure indexing bottle under right position of working station |
| Bottle snap roller | 10) Adjustable to different bottle size 11) Changeable to 2nd bottle size if the size excess adjustment |
| Water/air Filter | 12) Material of filter cartridge: PP 13) Pore size: 0.4um |
| PLC controller | 14) HMI+PLC: French Schneider 15) Auto count production output 16) Machine stop-await on bottle empty load/full unload 17) Machine speed adjustable controlled by frequency inverter |
Samples
Our Workshop
We will design the machine up to your special request and assure every machine you choose from us is the right and best one.
More questions, could you pls feel free to find us at any time!
