MSLCU01 Best Seller Portable Color Doppler Ultrasound in China

Specifications

MSLCU01 Portable color doppler ultrasound

    We are professional supplier specialized in all kinds of color doppler ultrasound scanner, ultrasound scanner, ultrasound system.

Main features of portable doppler ultrasound

Affordable Compact Excellent MSLCU01 is a compact color doppler ultasound system with various functions and applications. The high image quality and simple operation can help doctors perform and clinical exam, such as abdomen, smallparts, OB/GYN, cardiac, ect.

Full imaging mode: 2D, CFM, PDI, PW, HPRF, etc

1. Standard two transducer sockets with 15''LCD monitor

2. Full function control panel with back-lit and 8 level TGC

3. Selected transducers: Convex, Linear, Transvaginal, micro-convex etc.

4. Tissue Harmonic Imaging

5. iBeamTM: spatial compounding imaging reduces random noise and enhances border differentiation without compromising frame rate

6. iZoomTM: automatically expands the image to full screen

7. Full patient database solutions: DICOM3.0, AVI/JPG, USB2.0, HDD, PDF report, etc..

Expanded Functions of portable doppler ultrasound

1. iClear: image optimization, softer and more exquisite.(charging item)

2. B/C mode: CFM and B mode image displayed within one interface, easier for the doctor to browse and compare.

3. iTouch: one-click optimization.

4.THI: tissue Harmonic imaging for high frequency

Technical specification of portable doppler ultrasound

Configuration:

1. Intel Core 2 Duo L9400
2. 2 GB DDR-RAM
3. 64GB SSD hard disk
4. Based on Windows XP

Friendly User Experience:

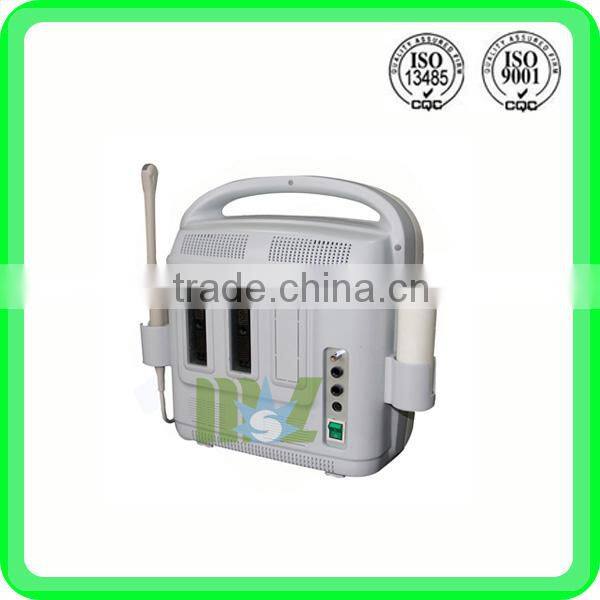

1. 2 Probe connectors
2. 4 USB ports, 1 Lan port, 1s-video port
3. AC adapter combined with wave filter, avoiding possible effect caused by unstable voltage.

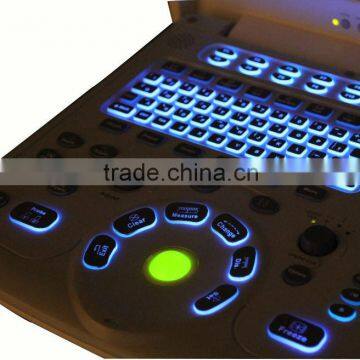

4. Trackball and back light keyboard are easy to use.


Display mode:B&W mode: B, 2B, B/M, B/C
Color Doppler mode: 2D, CFM, PDI, PW, HPRF, etc

Triplex: Real-time simultaneous 2D, Doppler & CFM
Duplex: Real-time simultaneous 2D, Doppler

Gray scale: 256
Display: 15" LCD monitor
Transducer frequency: 2.5-10Mhz

Digital technology: Dynamic Receiving Focusing (DRF)
Dynamic Frequency Scanning (DFS)
Scanning depth: 300mm

Imaging Processing
Pre-processing:
                8-segment TGC
                Preset
                Gain (B&W, Color, Doppler)
                Audio
                PRF
                Dynamic Range
                Image enhancement
                Acoustic Power

Post-processing:
               gray map
               Black/white reverse
               Left/right reverse
               Up/down reverse

Functions:
Cine-loop: 100 frame cine loop memory
Storage media: 64G massive image-storage capacity
Zoom: Pan zoom

USB ports: 4
THI: tissue harmonic imaging
Touch
Panoramic Imaging
Trapezoid Imaging
iClear Imaging

Measurement & Calculations
B mode: distance, circumference, area, volume, angle, fetal growth, curve
M mode: distance, time, velocity, heart rate
Software package: abdomen, gynecology, obstetrics, cardiology, small parts, urology

Others
Transducer connectors: 2 active transducer connector ports
Peripheral ports: video, S-video, VGA, 4 USB ports
Power supply: 100~240VAC±10%, 50Hz/60Hz

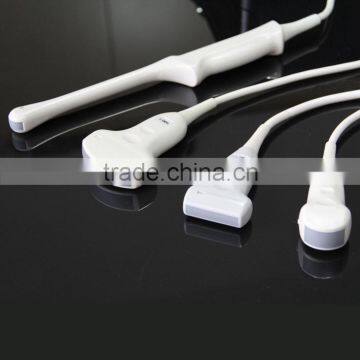

Transducers:
3.5Mhz Electronic convex array transducer
7.5Mhz Electronic linear array transducer
5.0Mhz Electronic micro-convex transducer
6.5Mhz Electronic transvaginal array transducer

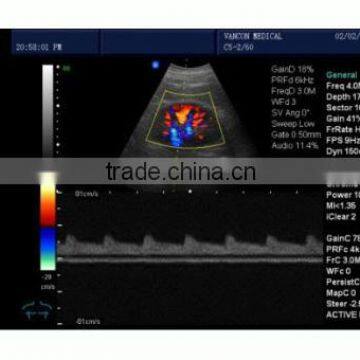

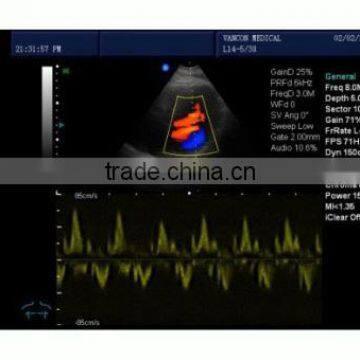

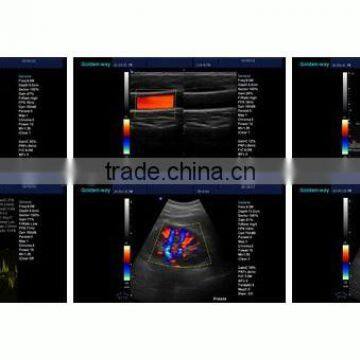

Image of portable doppler ultrasound

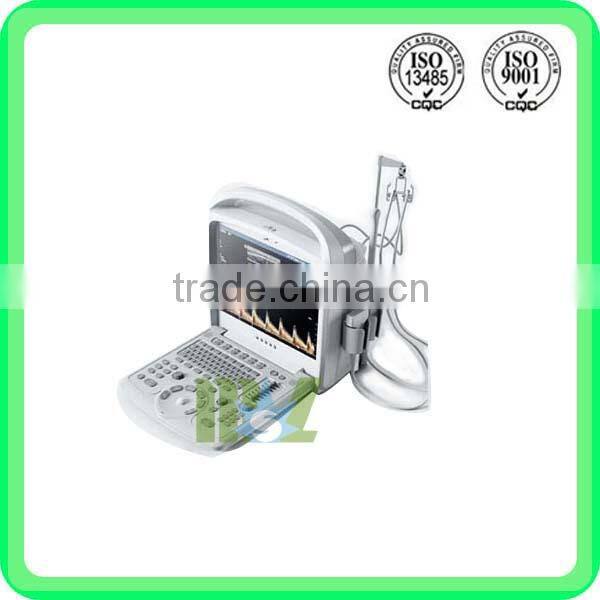

portable doppler ultrasound  MSLCU01

portable doppler ultrasound  MSLCU01
