  MSLDSA Affordable Baby Sound Fetal Doppler Ultrasound machine

Instructions

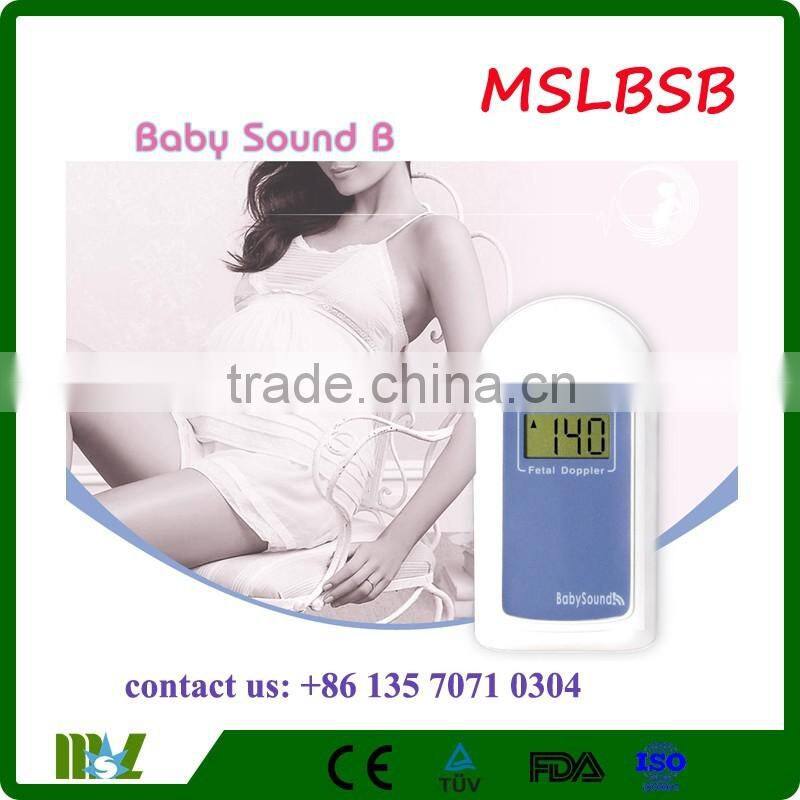

Baby Sound B Pocket Fetal Doppler is a hand held equipment for detecting Fetal

Heart Rate(FHR) which is specially designed for family of pregnant women to

conduct daily detection of FHR by themselves. Pregnant women can operate by

themselves to hear fetal heart sound and calculate FHR to realize the purpose of

pre-monitoring and fetus caring.Baby Sound B is a high performance model with

LCD digital display.

Main Features

 The probe and main units integrated together

 Delicate and compact design, portable to use

 Particular 2 Headphone Sockets design can let expectant mother and father hear

 the fetal heart sound together

 High sensitive doppler probe

 Low ultrasound output intensity, much lower than the relative government

 standard and with high safe quality

 Low power consumption, two AAA size batteries can last more than 8 hours for

 continuous use (depend on battery type and volume)

 Can be connected to a computer or recorder to record the fetal heart sound with

 recording cable

 LCD FHR Display with high accuracy

 Screen will be locked automatically without signal for 15s, which is convenient for

pregnant women to operate individually

Main performance

Anti-electroshock Type: Internally powered equipment

Anti-electroshock Degree: Type B applied part

LCD Display:25 mm×14 mm

FHR Measuring Range: 50 - 240 BPM (BPM: beat per minute)

Resolution:1 BPM

Accuracy:±2 BPM

Power Consumption:< 1 W

Voltage:DC 3.0 V

Power Supply: TWO 1.5V(AAA size)alkaline battery

Suitable Using Range: Suitable for use after the 12th week of pregnancy

Probe:

Nominal Frequency: 2.0 MHz

Working Frequency: 2.0 MHz±10%

Ultrasound Output Power: P < 10 mW

Ultrasonic Output Intensity:Isata < 5 mW/cm 2

Working Mode: Continuous wave Doppler

Effective Radiating Area of Transducer: 208 mm 2 ±15%

Physical Characteristic

Dimension: (L) 110 mm × (W) 55 mm × (H ) 16.8 mm(the space between probe

culmination and upper panel is 26 mm)

Weight: About 80 g (including batteries)

Qualification

Passed FDA and CE
