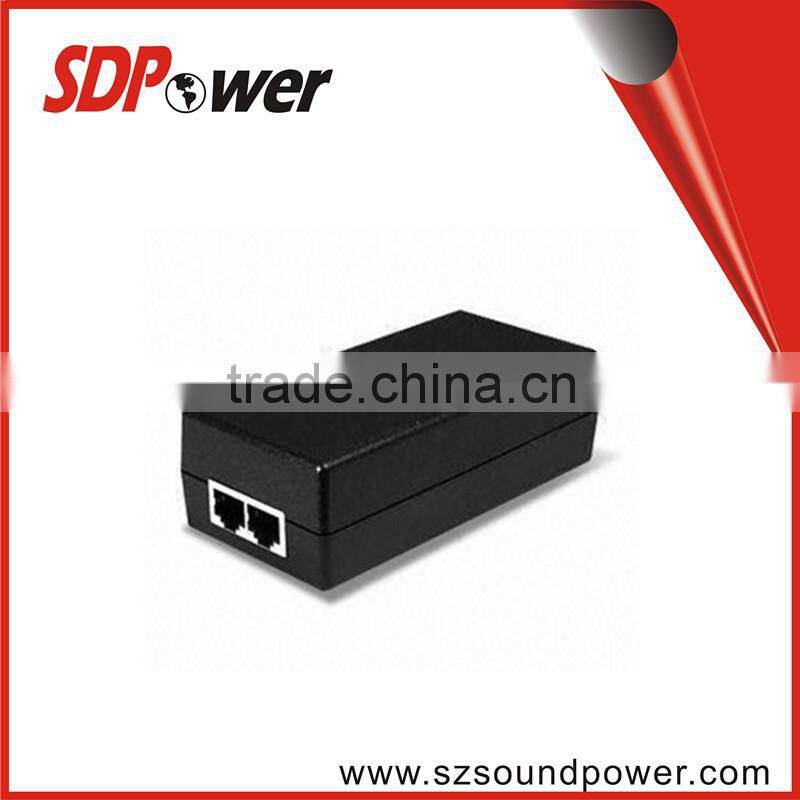

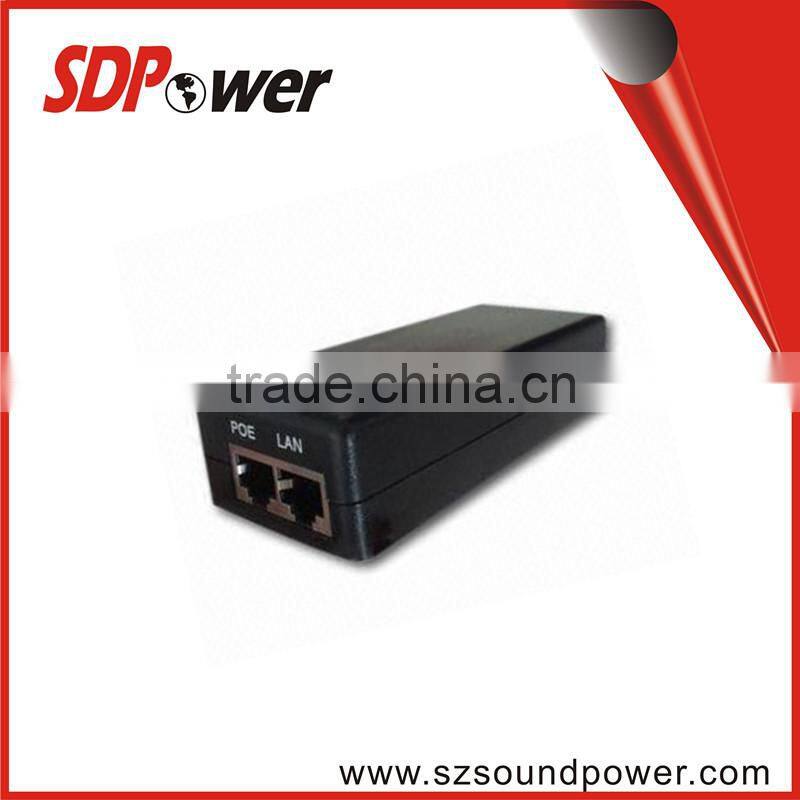

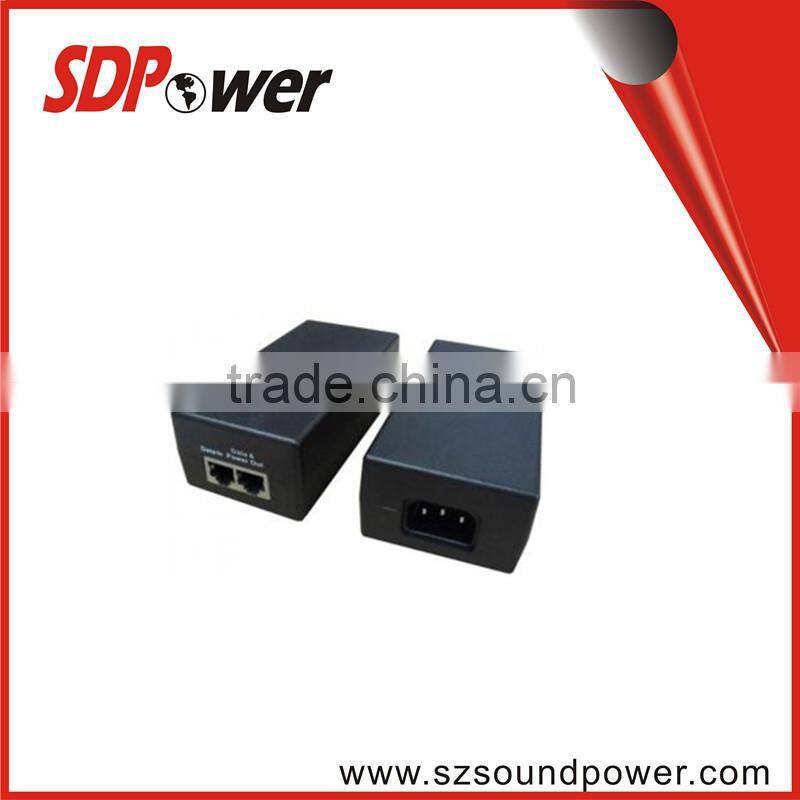

48V 1A POE adapter

FOB Price

US$ 5.28 - 5.4 / Set

1000 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

POE ADAPTER 48V 1A for POE switch and NVR

Model	SD4801000
Input Range	110-240V 50~60HZ
Out put	48V 1000MA
Wroking Efficiency	≥80%
size	1254487mm
weight	320g
Ripple and Noise	≤80Mv at full road with 20MHz bandwidth
Turn On Delay Time	≤1S (AC:110V and full load)
Dielectric Voltage	A IEC320 three pin input---output(FG)3000Vac one minute
Safety protection	short current protection ,over voltage and current protection
Leakage Current	<1mA
DC cable	1.2m (option)
DC connector	5.5*2.1mm (option)
Operating Temperature	0°C----+55°C
Storage Temperature	-20°C~80°C,20%~90%RHNon-Condensing
Certificates	UL//CE/FCC/SAA/ROHS
Packing	standard carton package for export with inner white or colorful box

Product show:

Shenzhen Soundpower Co,.Ltd

We are a Professional Power Supply Manufacturer with 4 years production experence, We are focus

on designing and manufacturing the power adapters ,USB chargers,LED driver CCTV power

supply and the battery charger, we are improving ourselves and trying ourbest to meet our

customers' demands so that we provide the high quality products with competitiveprice to

satisify the customersfrom all over the world.

our features

1.best service and factory price for you.

vide high quality goods , one by one strictly Controled by my QC

3.Short delivery time and fast provide the samples

4.With over current protection,over voltage protection, over temperature protection shor

circuit protection.

5.used for LED ,LCD,CCTV,DVD, Satellite receivers, Digital products, Instrument and meter,

communication equipment,etc.

POE 48V adapter
