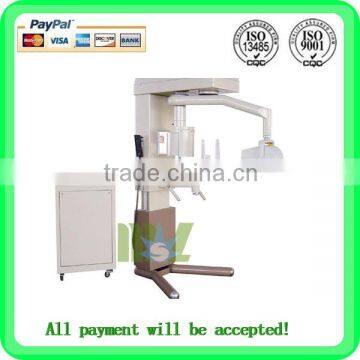

Advanced panoramic dental x-ray machine manufacturer MSLDX04

Specifications

          Advanced panoramic dental x-ray machine MSLDX04

Feature

1.It is designed on the principles of x-ray drum curvature tomography.

2.A small focus x-ray tube is adopted only for tooth. It makes the picture clearer.

3.The dental x-ray machine can radiograph a complete view of curvature of the whole teeth in a picture.The picture includes sinuses, nasal sinus, maxillary, mandibular structure and the whole 32 teeth, temporal,lower jaw joint and its combined relations.

4.It takes the unit only 16s for a rotational radiography to shoot a panoramic view of whole Dental-Maxilla-Facial region.

5.An elevating motor is used in the unit, to raise or lower its gantry for radiography the people of different height.

6.This dental x-ray equipment can also be used for oral surgery and facial orthopedics.

Main Technical Parameter of dental x-ray machine

1.X-ray generator:Single focus, half-wave rectification and oil-immersed self-cooled.

2.Max rated capability

  Current:  10 mA
  Voltage:   90 kVp
  Time:       16 sec

3.Power supply

 Voltage:       180-240V
  Frequency:  50Hz..
  Power:         1.8kVA(not lower than 1.8kVA).
  Resistance: 1Ω(not larger than 1Ω).

4.Voltage adjustment range of x-ray tube:5585kVp (divided into 8 steps).

5.Film size 150mm×300mm.
6.Specification of X-ray tube:D-0.88s focus:0.8mm×0.8mm only for dental.

7.Distance between the chin bracket to the floor:800mm (min),1120 mm (max) .
8.Panorama shoot time: 16s

9.Gross weight:373kg.
