Professional C-mark 4 channels class D power amplifier TC4960
- 3000 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
-
Professional C-mark 4 channels class D amplifier
-
C-mark professional amplifier TC4960 with 4 channels
-
C-MARK Digital 4 Channel subwoofer amplifier price TC4960,TC4650,TC4450
-
c-mark TC Series Factory Professional Power Amplifier For Outdoor Usage TC4450
-
high quality dj power amplifier TC4960,TC4650,TC4450
-
c-mark 4 channel Class-D TC series Power Amplifier
Product Details
| Place of Origin | China | Brand Name | C-mark | |
| Model Number | TC4960 |
Product Description
Specifications
power amplifier1. 20 years experience in pro-audio industry
2. flagship brand C-mark
3. high quality and factory price

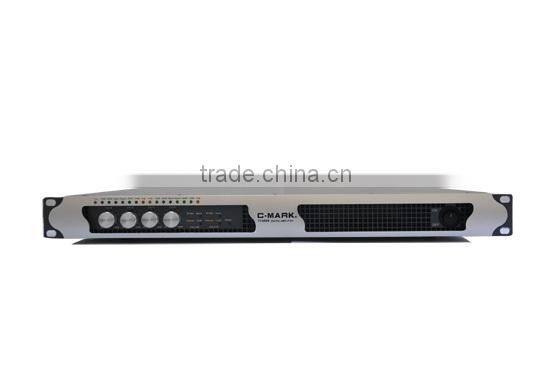

Professional C-mark 4 channels class D power amplifier TC4960
Features
- 1. Smarter Unit:
Based on Pulse Width Modulation (PWM) technology which has been used for over 30 years in power supply and converter, adopt complete digital circuit PWM for high reliability, smaller sizes, less weight
- 2. Higher Efficiency:
Its efficiency is nearly independent from output level while other common amplifiers can get max efficiency only at biggest output. The overall electric energy convert efficiency is more than 80%.
- 3. More Accurate Sound:
Crystal clear high frequency, tight and strong low frequency, accurate sound reproduction, professional design ensure great specifications such as distortion, frequency response, convert rate, power supply band width and damping factor. This TC series amplifier adopts higher frequency convert to obtain high resolution of sound signal.
- 4. More Comprehensive Protection:
This Series amplifier can prevent from and correct every possible fault, can supply powerful output, safely working and long time reliability.
1. Intelligent temperature controlled fans
2. Temperature Protection
3. Short-circuit, Over current Protection
4. Direct Current Protection
5. Over/under- Voltage Protection
5. Wide Applications in various venues :
Together with other C-Mark digital audio products such as digital mixer, network audio platform, to make up digital audio systems suitable for various applications.
Key Specification:
Specification | TC4960 | TC4650 | TC4450 |
8Ω Rated Output Power(EIAJ THD=1%, 1kHz) | 4×1200w | 4×650w | 4×450w |
4Ω Rated Output Power(EIAJ THD=1%, 1kHz) | 4×2100w | 4×1100w | 4×800w |
2ΩRated Output Power(EIAJ THD=1%,1kHz) | 4×3500w | 4×1700w | 4×1400w |
16ohm Bridged Output Power(EIAJ THD=1%,1kHz) | 2×2400w | 2×1400w | 2×900w |
8ohm Bridged Output Power(EIAJ THD=1%,1kHz) | 2×4200w | 2×2200w | 2×1600w |
4ohm Bridged Output Power(EIAJ THD=1%,1kHz) | 2×7000w | 2×3400w | 2×2800w |
RMS Output Voltage(THD=1%,1kHz) | 97V | 72V | 60V |
Upward Slope(1kHz,LP Filter) | 50V/us | ||
Input Sensitivity(Rated Power,1kHz) | 1Vrms | ||
THD(10% Rated Output Power,Typical) | 0.05% | ||
Measurable IMD(10%Rated Output Power, Typical) | 0.05% | ||
IMD(10% Rated Output Power,Typical) | 0.05% | ||
Crosstalk(1kHz,Typical) | -70dB | ||
Frequency Response(10% Rated Output Power, 8Ω) | 0~-2dB | ||
Input Impedance(Balanced) | Balanced 20KΩ, Unbalanced 10KΩ | ||
Damping Factor(100Hz,8Ω) | ≥200 | ||
S/N(A Weight, 20Hz-20kHz) | ≥105dB | ||
Power Supply | AC~100-240V (50-60Hz) | ||
Protection | Overheat Protection,Temperature Power Control,Output Current Control Overload Protection,DC output Protection | ||
Dimension(mm) | 483×370×44 | ||
Net Weight | 8.15Kg | ||
