ER14505H 3.6v Lithium Battery AA ER14505

FOB Price

Negotiable / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

3.6V Non-Rechargeable Lithium Ion Battery
Model: ER14505 ER14505M
Voltage: 3.6V
Dimension:14.5*50.5mm,
CE,ROHS,SGS,MSDS

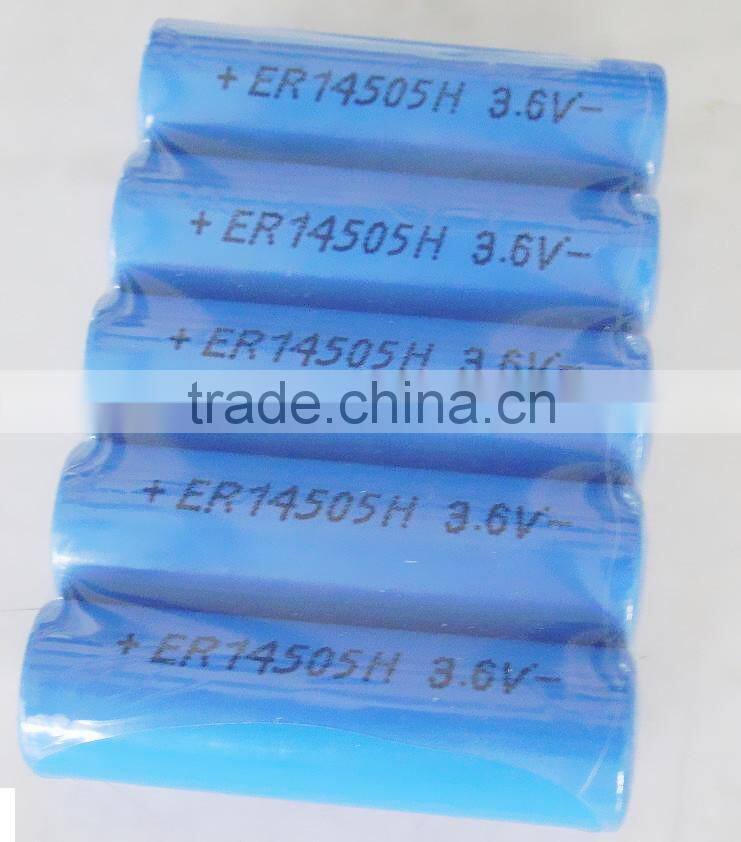

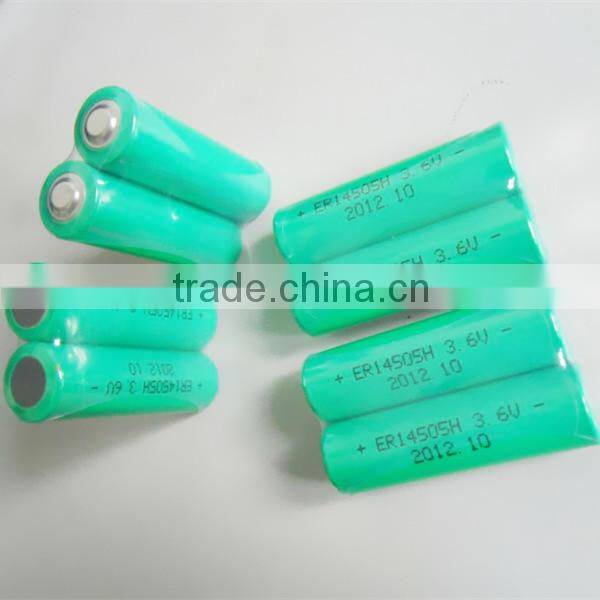

ER14505H 3.6v lithium battery AA ER14505

Electrical characteristics

Nominal capacity 2.4Ah ( 2400 mAh)@ 1.0mA +20'C 2.0V cut-off.
- Capacity may vary based on test condition of current drain, temperature, cutt off voltage
Open circuit voltage (at +20C +68F) 3.66V
Nominal voltage (at 1mA +20C +68F) 3.6V
Pulse capability: Typically up to 200 mA
Max. Continuous current: 100mA Max
Pulse current: 200mA
Storage (recommended) +30C +86 F max
Operating temperature range -55C / +85C
lithium-thionyl chloride (Li-SOCl2) technology
Diameter(max): 14.4mm (0.57")
Height (max): 49.65mm (1.95")
Typical weight: 19g (0.622oz)
Note: Please make sure you order the correct size of battery. ( The cell is little different from standard AA rechargeable cells
- Standard AA rechargeable cell's dimension (Dia x H): 14.21(0.56")x50.4mm(1.98"),

Main applications:
