Home > Products > Spare Parts For Hydraulic Pump/Motor > Piston Pump Pv23 for Paver Machine Accessories
Piston Pump Pv23 for Paver Machine Accessories
- Qingdao China
- T/T
You May Like
Product Details
| Condition | New | Power Type | Diesel | |
| Place of Origin | Shandong, China | Brand Name | High Land | |
| Model Number | PV23 | Warranty | 1 year |
wooden box
Product Description
piston pump pv23 for paver machine accessories
Product Description:
(1).Mainly used on the Paver,road roller,continous soil mixing machine,concrete pump and
pharmaceutical machinery.
(2).Adopt international Hydraulic transmission device technology.
(3).Reliable working state, and easy operation.
(4).We produce the key components using imported material .
| No | Descrition | Quantity |
| 1 | Cylinder Block | 1 |
| 2 | Valve Plate | 1 |
| 3 | Retainer Plate | 1 |
| 4 | Piston Shoe | 9 |
| 5 | Ball Guide | 1 |
| 6 | Thrust Plate | 1 |
| 7 | Rearing Plate | 1 |
| 8 | Drive Shaft | 1 |
| 9 | Seal Copper | 1 |
| 10 | Static Seal | 1 |
| 11 | Socke Pin | 1 |
| 12 | Block Spring | 6 |
| 13 | Charge Pump | 1 |
| 14 | Valve Assy | 1 |
| 15 | Control Valve | 1 |
| 16 | Big Dearing | 1 |
| 17 | Small Dearing | 1 |
Main Features:
--Pass axis piston pump
--Hydrostatic Transmission
--Manual Servo and Hydraulic Variable control
Technical Parameters:
| Model | Max. Displacement(ml/r) | Torque at 10Mpa(N.m) | Out power(at 10Mpa 1500r/min)(kw) | Charge Pump Displacement(ml/r) | Max. Speed(r/min) |
| PV21 | 51.6 | 84.1 | 12.7 | 12.3 | 3000 |
| PV22 | 69.8 | 114.2 | 17.2 | 18.0 | 3000 |
| PV23 | 89.0 | 144.3 | 21.9 | 18.0 | 2800 |
Components Weight Chart:
| Model | Variable Pump | Variable Displacement Motor | Fixed Displacement Motor |
| PV21 | 53.52 | 58.51 | 34.47 |
| PV22 | 61.24 | 66.23 | 39.92 |
| PV23 | 78.47 | 83.46 | 47.17 |
The exhibition

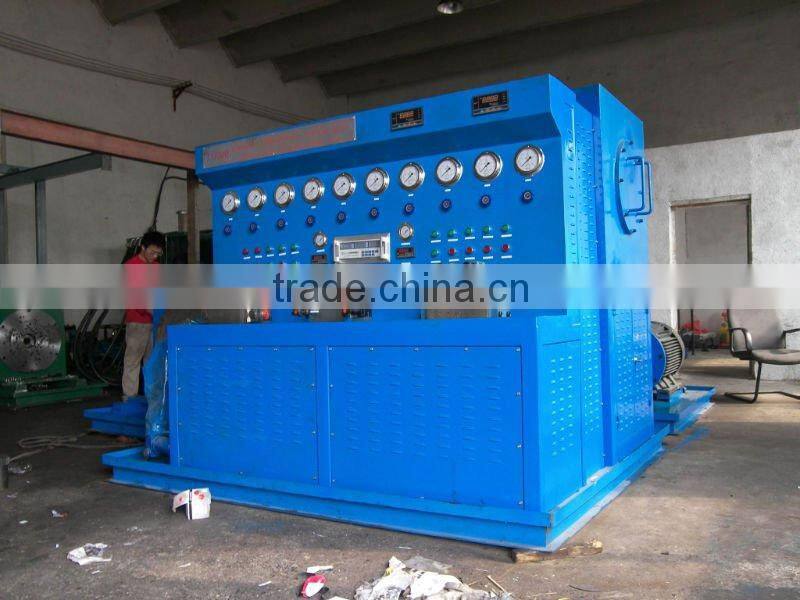

Main Products Test Bench for Pump pressure ,flow rate
our factory
Company Profile

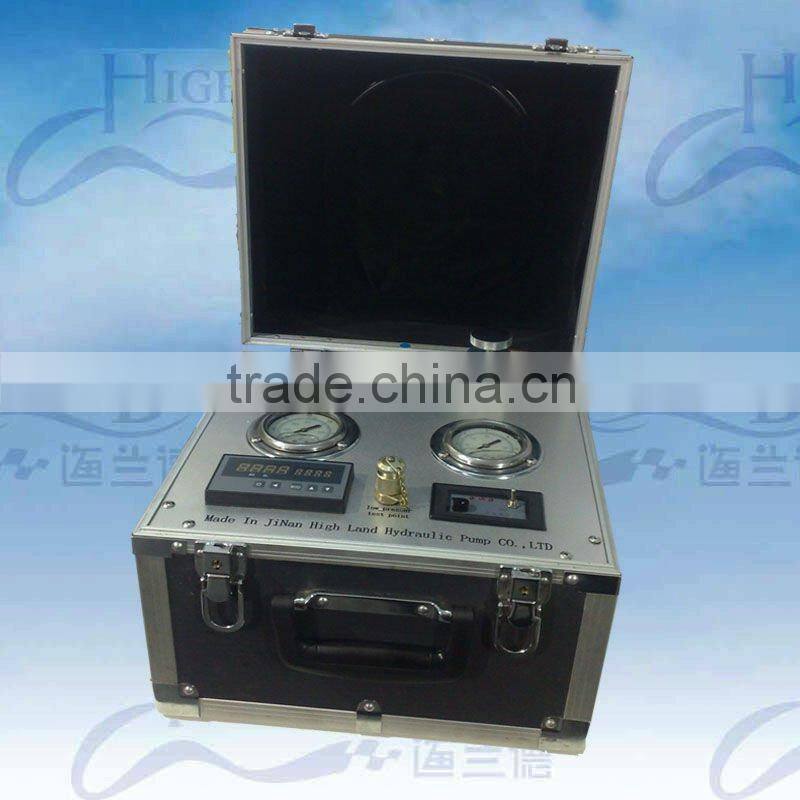

Profile Jinan High Land Hydraulic Pump Co., Ltd. , a professional high-tech enterprise that combines hydraulic design, manufacturing and maintenance. High Land owns strong ability of R & D, first-class scientific management elites and advanced equipment for manufacturing and testing. Hydraulic Pump Hydraulic Comprehensive Test Bench Digital Hydraulic Test Bench MYHT Portable Hydraulic Tester Hydraulic Pump Parts Service: On-site technical advisory for Hydraulic System Maintenance: Hydraulic Pump or Motor imported or made in China Jinan High Land Hydraulic Pump Co.,Ltd. Address:N0.26, Beiyuan Street, Licheng District, Jinan Tel: 0086-0531-88796130 88770136 Fax: 0086-0531-88796120 Technical Support: 13805406089 Post Code: 250100 Hydraulic Digital Test Bench Maintenance and test equipment for testing Hydraulic Pump, Motor Parameters: Flow: 300-500L/Min Pressure:35Mpa Power: 75-250KW Motive Power: Hydraulic Electromotor, Frequency Conversion Electromotor, Diesel Engine Drive Portable Hydraulic Tester MYHT Portable Hydraulic Tester is applicable for testing flow, pressure, temperature of hydraulic system of construction equipment. It widely absorbs advanced technical experience of international peers and has filled the blank of this field in China. Potent No.: ZL 2005 2 0080054.X Parameters: Flow: 200---800L/Min. Precision:1% Pressure: 420bar Temperature:150 Weight: 6.2-10.5kg Product: Hydraulic Pump, Hydraulic Comprehensive Test Bench, Digital Hydraulic Test Bench, Portable Hydraulic Tester Service: on-site technical advisory for hydraulic system, system reform, parts test Maintenance: Hydraulic Piston Pump, Piston Motor, Valve, Sauer Pv20,90 series RexrothA10V, A4V, A11series, Kawasaki K3V, NV series, Komatsu, CAT
Contact Us
- Ji'nan High Land Hydraulic Pump Co., Ltd.
- Contact namesummer Tang Chat Now
- Phone86-531-88796130
- AddressNo. 6, Daqiao Road, Jiangjiagou Industrial Zone, Huashan Town, Licheng District
