Home > Products > PPGI coil > Black Corrugated Metal Roofing Sheet Corrugated Roof (GI/GL and Color)

Black Corrugated Metal Roofing Sheet Corrugated Roof (GI/GL and Color)

FOB Price

US$ 450 - 980 / Ton

5 Tons(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	deqiang
Model Number	yx18-215-860	Material	Coloured Glaze
Type	Bent Tiles

Product Description

Color Coated Steel Corrugated Sheet for Roofing Tiles

1. Thickness: 0.2-0.7mm

Standard: AISI, ASTM, GB,BS,DIN ,JIS
material :SGCC SGCH SGHC
Width: 600-1250 mm

Standard	ASTM A653, JIS G3302,GB/T3830-2006
Grade	DX51D,SGCC etc
Thickness	0.2mm--0.7mm
Width	665mm 680mm 750mm 820mm 840mm 860mm 1020mm 1025mm 1050mm 1075mm
Base metal	Galvanized steel coils,Galvalume steel coil
Zinc coating	40-120gsm
Lenght	1830 2440 3660mm or customered
Coating thickness	Top:13-25um back:7-10um
Color options	Ral number or as per your request
Packing	Standard seaworthy export packing: 3 layers of packing, inside is kraft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve.
Delivery	Within 10-15days after signing contract
Price	FOB&CNF&CIF price
Payment terms	TT or L/C
Monthly supply	30000MT per month
Application:	workshop, storeroom, roofing,kiosk...

2. The advantage of product are stated as below:

1.Increased supporting strength

2.Reduced project cost

3.Light weight

4.Easy and fast for installation

5.Durable: 12-20 years

6. Fire,Water Proof
7.Multiful color choices

3. If you are interested in it, please kindly advise:

1. color & thickness & length & quantity

2. delivery time

3. packing request

4. other request details

The hot dip galvalume steel is a kind of coated steel. With the cold rolled steel of different strength and thickness as substrate, it is produced through applying Al-Zn coat on both faces by hot dip process. In its coating, Al accounts for about 55%, Si 1.6%, while the remaining is Zn. It enjoys both the physical protective feature and durability of Al and the electrochemical protective property of Zn. And its surface has bright silver color and regular embossed-like figure, which are highly decorative.

More than 50 worldwide customers none-risky experiences approved.
Yogic has been exporting steel coils to more than 50 countries directly. Our long term supply extends to USA, UK, Germany, Italy, Spain, Belgium, France, Poland, Greece, Ukraine, Belarus, Russia, Turkey, Egypt, Saudi Arabia, Iran, Ethiopia, Niger, Brazil, Colombia, Chile, Peru, Australia, New Zealand, etc

Packaging & Shipping

GI Galvanized color coated ppgi/gi corrugated sheet metal roofing corrugated steel sheet
Ral3015 PPGI Galvanized Steel Metal Roof

6. Tools you'll need when install corrugated steel sheet:
1)Sheets of corrugated metal 2)Metal ridge caps 3)Roofing felt (if needed) 4)Nails
5)Hex screws 6)Washers 7)Hammer 8)Drill

PPGI Coils, Color Coated Steel Coil, RAL9002 White Prepainted Galvanized Steel Coil

Thickness	0.12mm-3.0mm
Width	665mm-1220 (AC)
Zinc coating	40g-150g/m2
Length	1000mm-6000mm as your required
Tolerance	width:+/-5mm,thickness:+/-0.02mm
Spangle	regular spangle,big spangle,minimized spangle or all kinds of color coated
Pitch	76mm or as required
Wave height	18mm or as your required
Wave number	from 8 to 12
Type	steel plate
Weight of each package	about 3mt
Technology	cold rolled
Surface treatment	galvanized,chromated,bright finished,unoiled(oiled)
Material	SGCC,SGCH
Standard	ASTM,JIS,DIN,GB
Packing	export standard packing,packed with moisture resistant paper and metal wrapping,securely tied for export,on metal skids

Product Description

Prepainted Galvanized Steel Coil Steel Sheet PPGI

1. ISO System
2. SGS and BV Audited company.
3. Industry experience over 10 years.
4. Management Systems-Internal Software
5. Raw Material inventory -Over 800 Mertic Tons.
6. Shipment of goods -More than 30 countries worldwide.
7. We have the most convenient transport and prompt delivery.
8. We offer competitive price with best service.
9. We have high technical production line with top quality products.
10. We have win high reputation based on best quality products.

Our Services

GI Galvanized color coated ppgi/gi corrugated sheet metal roofing corrugated steel sheet

Products process:

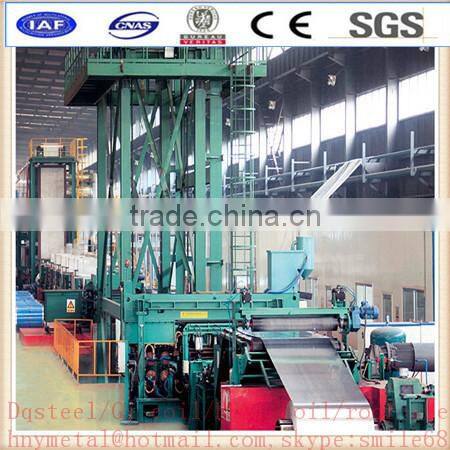

Un-coiler------stitching machine-----barrels-----tension machine-----uncoil-----alkali washing and degreasing-----cleaning----drying----passivation-----drying---- primary coating----drying----primary coating drying----top coating---top coating----cooling----coil----packing and warehousing.

Company Information

Advantages for heat insulation Corrugated Roof Sheet

1. Corrosion resistance.
2. Color stable.
3. Sound absorption and heat insulation.
4. Good water resistance.
5. Fireproof resistance.
6. Easy to install.
7. Good impact and low temperature resistance.
8. Light weight.
9. Stable volume.
10.Environment friendly and energy saving.

Technical data for heat insulation Corrugated Roof Sheet

Item	Content	Result	Standard
Environment	Pollution or environment friendly	No asbestos and Environment friendly Recycling material	GB6566-2001, A standard good for Environment
Heat distortion temperature	Under 70.0°C	No change	GB/T1634-2004
Vicat softening temperature	Under 75.2°C	No Softening	GB/T1633-2000
Hard to burn	B1 Grade	Oxygen index: 32.4	GB/T2406-1993
Vertical Burning	FV-0	FV-0	GB/T2408-1996
horizontal Burning	FH-1	FH-1	GB/T2408-1996
Impact Resistance	no crack	0/10	GB/T8814-2004
Density	1.75-1.95	1.778	GB/T1033-1986
Corrosion-resistant	Acid (HCL,H2SO4,HNO3)5%	No change	QB/T3801-1999
Corrosion-resistant	Alkaline(NaOH)5%	No change	QB/T3801-1999

Installation Process for heat insulation Corrugated Roof Sheet

-Easy installation,similar to steel roofing sheet.
-Clients can get installation Video when once purchase product.
-Provide full course of follow up service.

FAQ

1.Q:You are factory or trading Company?

A: We are a Factory with 8 years of experience specialized in cold rolled coil, galvanized steel coil, ppgi and corrugated roof sheet with high quality, competitive price and good service.

2. Q:what is the MOQ.?

A:Generally speaking, the MOQ is 25 metric ton per size, if your quantity is small , we can supply you from our stock .

3.Q: I need sample, could you support?

A: We can supply you with the sample for free, but the delivery charges will be covered by our customers. For avoiding the misunderstanding, it is appreciated if you can provide the International Express Account for Freight Collect. Also you can have a visit to us, welcome to JNC!

4.Q: How to know the Quality Guarantee:

A: We suggest you to visit our company to check the quality. And also the third inspection can prove our products quality.

B :We will attach some relevant photos via email to show our office and products to you

Prepainted Steel Coil
BASIC MATERIAL	CHEMICAL COMPOSITION %					MECHANICAL PROPERTIES
	C	Si	Mn	S	P	T.S	Y.S	E.L
						MPA	MPA	%
GL/GI	0.06	0.02	0.22	0.018	0.017	346	360	31
PAINT COATING	MEK	GLOSS	PENCIL RIGIDITY	BENDING TEST	REVERSE IMPACT		INSPECT RESULT

μm
30	OK	60%	3H	3T	9J		OK

Standard :GB/T 12754 2006

Jinan deqiang coated steel

contact : tom yu

cell : 13583135936

whatapp:86-13205403820

skype: smile6869

mail: hnymetal @
