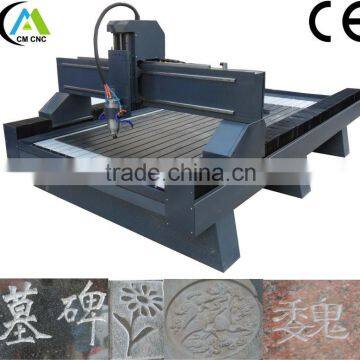

CM-1325 CNC Router For Aluminium With CE
- Qingdao Port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Stone Engraving Machine | |
| Use | Other, Metals | Production Capacity | Optional | |
| Place of Origin | Shandong, China | Brand Name | CM | |
| Model Number | CM-1325 | Voltage | AC 380V/50Hz,Three Phase | |
| Power(W) | 10KW | Dimension(L*W*H) | 3.1X2.1X1.7m | |
| Weight | 1500KGS | Certification | CE | |
| Warranty | 12 Month | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
CM-1325 CNC Router For Aluminium With CE1.Heavy-duty Lath
2.4.5KW Spindle
3.Stainless Steel Water Tank
4.Rack And Pinion
CM-1325 CNC Router For Aluminium With CE
Standard Features:
1.Welded lathe bed of profile steel, stabilizing treated under high temperature.
2.The bed height is lower for put on the heavy stone easily.
3.Y axis with double motors to drive that ensure stable and precise performance.
4.This machine adopt high precision rack and pinion transmission and Hiwin linear square guide way ensure high accuracy,fast speed,heavy-duty with long service life.
5.Professional design and high quality machine parts provide this CNC router with low break down rate.
6.Feeler block make the machine working more precisely.
7.T-slot worktable with clamps can hold the workpieces tightly.
8.Tank wall is stainless steel in case of being rusty while touch water.
9.3.0kw-8.0kw spindle is optional.
10.Rotary device for cylinder materials is optional.
Applicable industries:
Metals,Tombstone,menument,grave stone,headstone,etc.
Applicable materials:
Aluminum,copper,Marble, Granite and other stone.
Description | Parameter |
X,Y Working Area | 1300*2500mm |
Z Working Area | 300mm |
Resolution | +0.01mm |
Lathe Structure | Welded steel structure |
X,Y Structure | Rack and pinion transmission |
Z Structure | Germany rolling ball screw, Hiwin square guide rail |
Max. Idling Speed | 25m/min |
Spindle | 3.0KW/4.5KW/6.0KW/9.0KW |
Spindle Rotate Speed | 0-24000r/min, variable speed |
Inverter | Sunfar |
Working Voltage | AC380V/50Hz |
Working Mode | Stepper |
Driver | YAKO/Leedshine 860 |
Command | G code,HPGL,U00,mmg,plt |
Operating System | DSP with USB interface |
Diameter of cutter | φ3.175-φ12.7mm |
Cooling Mode | Water-cooling |
Work-holding | T-slot |
Water Tank | Yes |
Net Weight | 1500KGS |
Gross Weight | 1600KGS |
