Home > Products > CNC Plasma Cutting Machine > CM-1325 Heavy-duty Metal Plasma Cutting Machine

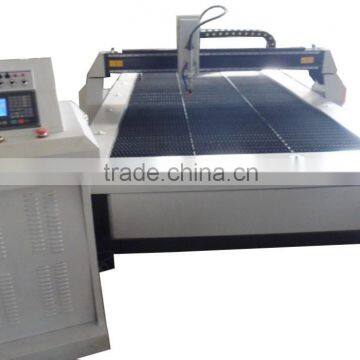

CM-1325 Heavy-duty Metal Plasma Cutting Machine
- 300 Set / Sets per Month
- Qingdao
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | CM | Model Number | CM-1325 | |
| Voltage | AC380V/50Hz,Three Phase | Rated Power | 15KW | |
| Dimension(L*W*H) | 2.9X1.7X1.5m | Weight | 1300KGS | |
| Certification | CE | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CM-1325 Heavy-duty Metal Plasma Cutting Machine
Standard Features:
1 .The machine is all welded as seamless steel structure. Steady structure and long life time
2. High configuration, high cutting speed and precision.
3., Auto ARC starting. Steady performance.
4, Control system: DSP handset control, with USB interface
5. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.
6. File format: G-code
7, Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.
Applicable Materials: Steel, stainless steel, aluminium,copper and all other metals.
Teanical Specifications:
| Model | CM-1325 |
| Working Area | 1300X2500X100mm |
| Power Source | 85A(USA Hypertherm Brand)(Optional) |
| Control System | Start |
| Precision | 0.07mm |
| Positioning Accuracy | 0.02mm |
| Repeatibility | 0.02mm |
| Idling Speed | 50m/min |
| Working Speed | 9m/min |
| X,Y Axes Transmission | Helical Rack And Pinion |
| Z Axes Transmission | Taiwan TBI Ballscrew |
| Guide Rails | Taiwan Hiwin Linear Square Guide Rails |
| Max Cutting Thickness | 16mm Steel |
| Driving Motor | Sub-division Stepper Motors |
| Driver | Yako2811 |
| Command Code | G Code |
| File Transfer | USB Interface |
| Compatiable Software | Any software which can generate G code |
| Optional Parts | Other power source such as 45A,65A and 105A, 200A,etc.China power Source are cheaper. Cutting Torch,Protection Cover |
| Voltage | AC380V/50Hz,Three Phase |
| Net Weight | 1300KGS |
Machine Parts:
Start Control System
Start Control Panel
Hypertherm Power Source
Tooth Worktable
Cutting Torch
Cutting Mouth
Protective Sleeve
Samples:
