Twisted Pair Telephone Cable With Each AL Foil Shielded
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HENGTONG | |
| Model Number | HT-TP-006 | |||
| Number of Conductors | 8 |
Product Description

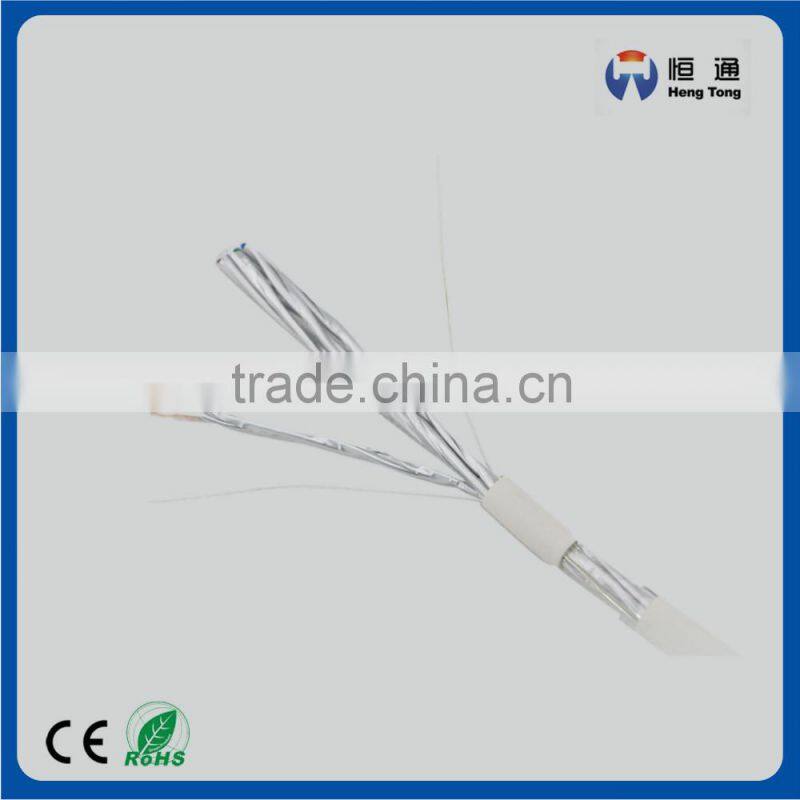

Twisted Pair Telephone Cable with Each AL Foil Shielded
1.Conductor material:TC/TCCA
2.Insulation mateial:HDPE(High density polyethylene)
3.Jacket mterial:flexible PVC/LZSH(Low smoke zero halogen)
4.Packing:250m / Roll , 1000m / Wooden spool
5.Color:grey,white,black,red,according your requirements
6.Rated voltage:80V
7.Delievery time:according your quantity
8.Paymets terms:T/T or L/C
9.We can provide OEM service
Specification:
| Model | Condunctor (pair*core*dia.) | Insulation Diameter | Twisted Pair | AL Foil | Ground Wire Diameter | PET | Ripcord | OD |
| HT-TP-001 | 1*2*0.61mm | 1.05mm | Yes | Yes | 0.50mm | Yes | Yes | 4.0mm |
| HT-TP-002 | 2*2*0.61mm | 1.05mm | Yes | Yes | 0.50mm | Yes | Yes | 5.3mm |
| HT-TP-003 | 3*2*0.61mm | 1.05mm | Yes | Yes | 0.50mm | Yes | Yes | 5.8mm |
| HT-TP-004 | 4*2*0.61mm | 1.05mm | Yes | Yes | 0.50mm | Yes | Yes | 6.1mm |
| HT-TP-005 | 6*2*0.61mm | 1.05mm | Yes | Yes | 0.50mm | Yes | Yes | 7.5mm |
| HT-TP-006 | 8*2*0.61mm | 1.05mm | Yes | Yes | 0.50mm | Yes | Yes | 8.4mm |
| HT-TP-007 | 10*2*0.61mm | 1.05mm | Yes | Yes | 0.50mm | Yes | Yes | 9.4mm |
| Conductor Material: 0.61mm TC / TCCA (Tinned copper/ Tinned copper clad aluminum) | ||||||||
| Insulation Material: 1.05mm HDPE | ||||||||
| Ground Wire Material: 0.50mm TC | ||||||||
| Insulation Color: White+Blue,White+Orange,White+Green,White+Brown,White+Purple,White+Gray, | ||||||||
| Shield: two core wires are twisted together and shielded by Al foil wrapped on these two wires. The other two wires are made the same way.Have a 0.50mm TC ground wire. A layer of PET wrapped on the outside of core wires. | ||||||||
| Jacket Material: White(RAL9010) PVC or LZSH | ||||||||
| Packing: 250m / Roll , 1000m / Wooden spool | ||||||||
| We can make these cable according to customer's requirements | ||||||||

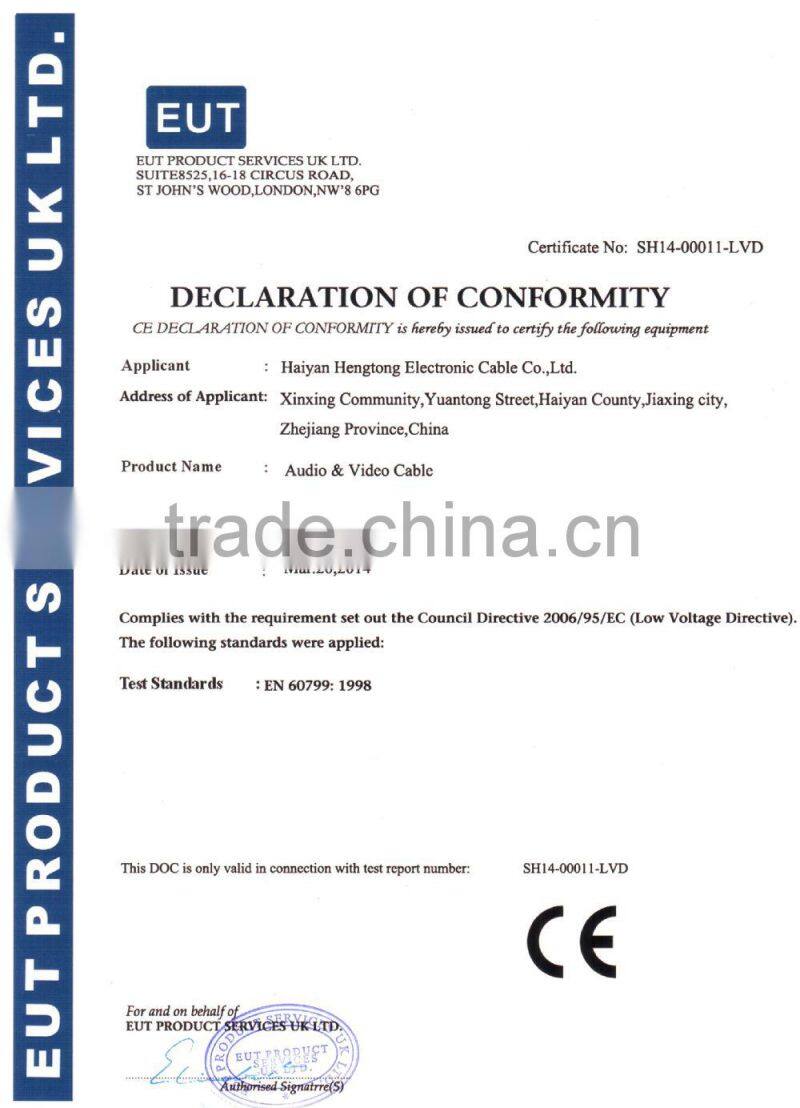

Certificate:
1.all conductor material can according your choise,Copper,copper clad aluminium,tinned copper
Our Advantage:
1.all the cables for exports,high quality and competitive price can mee your requirements.
2.we have do this cables 10years,highly mature skilled
3.fast delievery

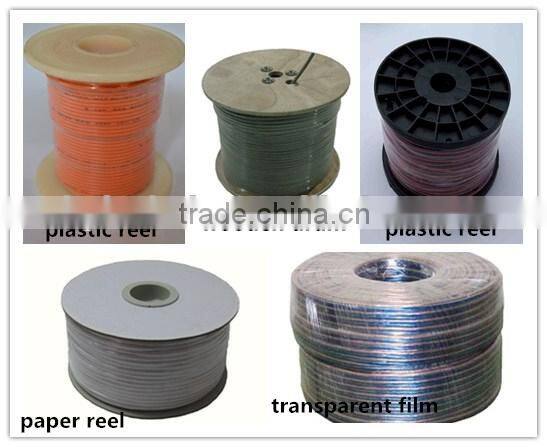

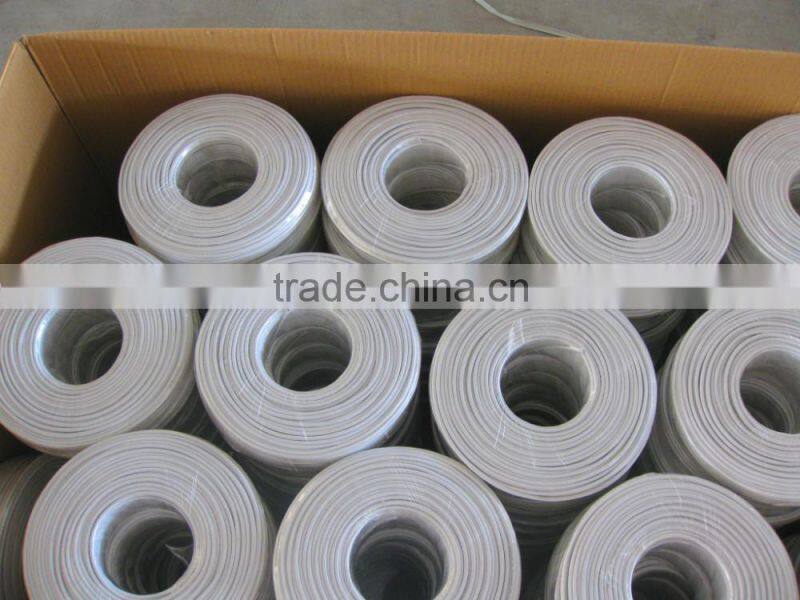

Other Packaging:
