Home > Products > New Products > Luoyang Edm Molybdenum Wire Electrode Edm Moly Wire
Luoyang Edm Molybdenum Wire Electrode Edm Moly Wire
- Tianjin/Qingdao/ (negotiable)
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Bless | |
| Model Number | Mo1 Mo2 | Dimensions | Customizable |
Product Description

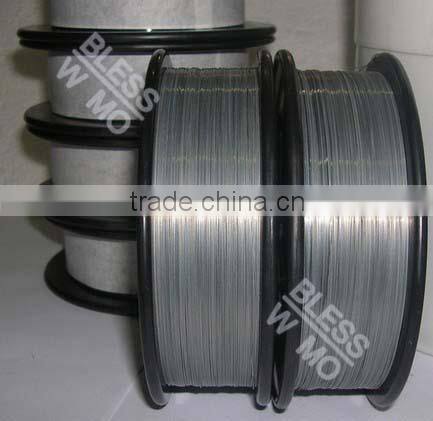

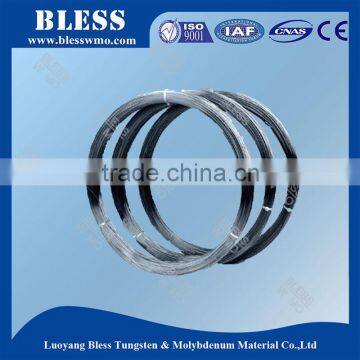

Luoyang edm molybdenum wire electrode edm moly wire

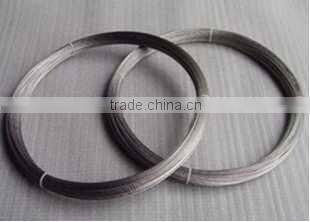

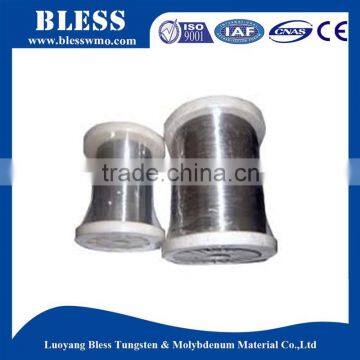

Luoyang edm molybdenum wire electrode edm moly wire

|
| Molybdenum |
Density | G/CM3 | 10.22 |
Melting point | oC | 2620 |
Thermal conductivity | W/M.K | 98.8 (1400 oC ) |
Resistivity | Ω.CM | 53.1 (1730 oC ) |
Vapor pressure | Pa | 7.09 X 10-6 (1600 oC ) |
Modulus | /MPa | 343 350 |
Thermal expansion coefficient | K-1 | 6.2 X 10-6 (700 oC ) |
Hardness | HB | 35--125 |
Tensile strength | MPa | 687 |
Specification
| Diameter, mm | Diameter telorance, % | Weight ( 200mm ), mg | Length min, m |
| 0.015−0.03 | − | 0.360−1.440 | 2000 |
| 0.03−0.1 | 1.440−16.00 | 1500 | |
| 0.1−0.2 | ±0.5−±1.5 | 16.00−256 | 1000 |
| 0.2−0.4 | 300 | ||
| 0.4−0.7 | ±1.5−±2.5 | − | same as 200g |
| 0.7−1.8 | ±1.0−±2.0 | same as 250g |
Chemical Composition
| Mo | C | N | O | Fe | Ni | Si |
| ≥99.95 | ≤0.01 | ≤0.002 | ≤0.007 | ≤0.010 | ≤0.005 | ≤0.010 |
Type
| Type | Mo Content(%) | Other(%) | Every Element(%) | Additional(%) |
| MO1 | 99.93 | 0.07 | 0.01 | - |
| MO2 | 99.90 | 0.10 | 0.01 | - |
| MO3 | 99.33 | 0.07 | 0.01 | 0.20~0.60 |
Grade
Grade | Description | Application |
MO1
| Pure Moly Wire | Used in vacuum electronic devices manufacturing hot parts, heating element, different types of bulb hook, spindle curly tungsten wire, etc |
| Used for wire cutting | ||
| MO2 | Pure Moly Bar | Vacuum electronic devices in manufacture, electrode gas discharge tube and the lamp, tube stents |
| MO3 | TZM(Molly Alloy) | High temperature structural materials (printer needle, nut, screw) support halogen lamp, heater, pipe of radial shaft. |
Feature
• High melting point, Low density and Thermal coefficients
• Good thermal conductivity properties and Resistance of high-temperature
• High tensile strength and Low elongation
• Good stability and High precision of cutting
• High speed and Long stable time of processing
• Long lifetime and Non-poisonous

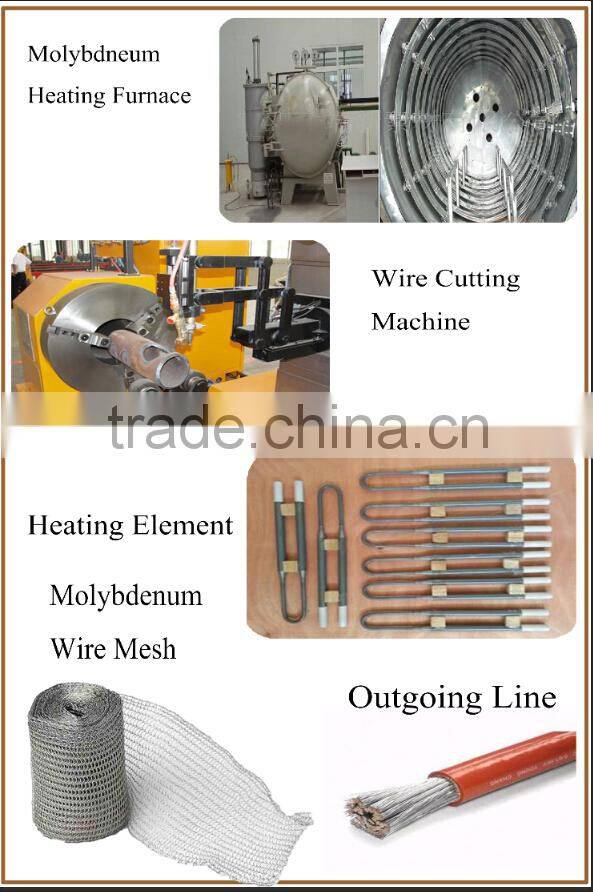

Application
• Electric light source, Electrode
• Heating elements, High-temperature components
• Wire-electrode cutting
• Spraying for auto parts
Strorage Consideration

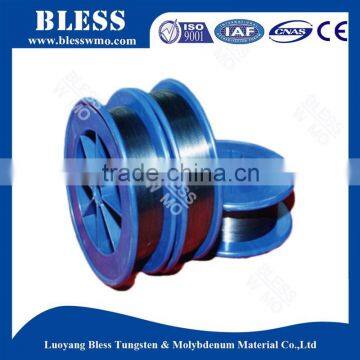

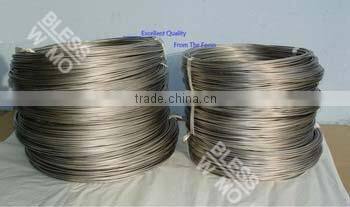

Luoyang edm molybdenum wire electrode edm moly wire

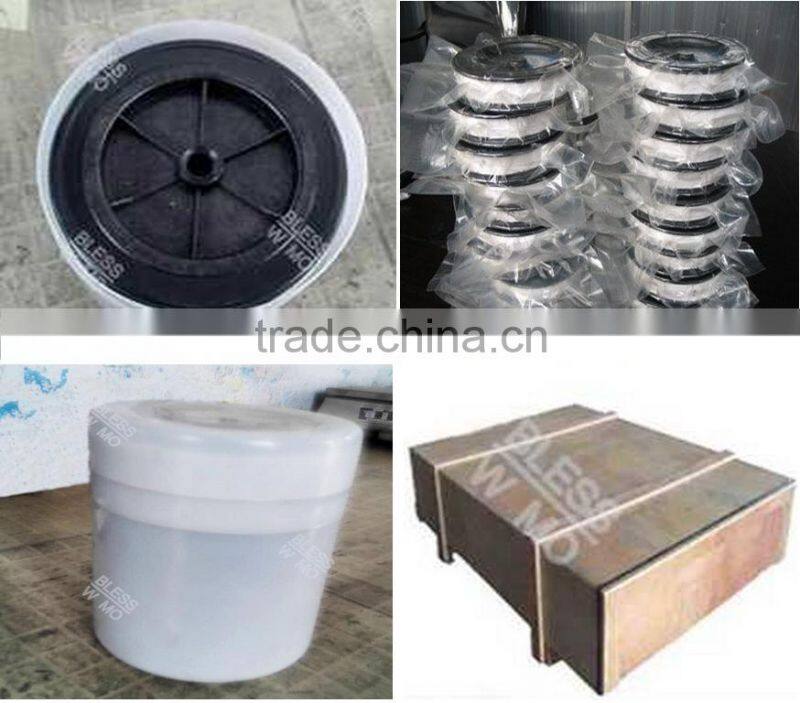

| Package | Wooden case with foam sheet or customized. |
| Delivery time | about 15 working days |
| Payment | T/T ,L/C, Paypal |

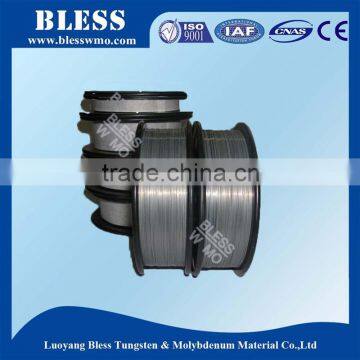

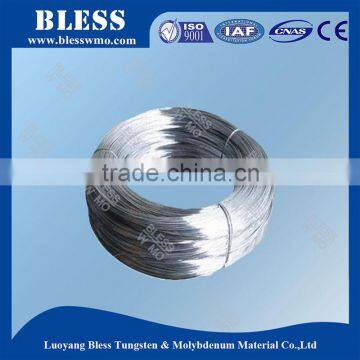

Luoyang edm molybdenum wire electrode edm moly wire

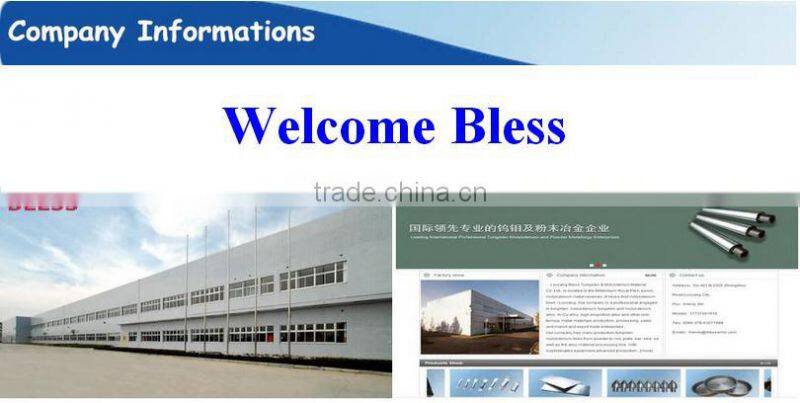

Luoyang Bless Tungsten & Molybdenum Material Co.,Ltd is an experienced company in manufacturing & selling Molybdenum & Tungsten products, our company located in Luoyang city , which is the famous Asia's first Molybdenum reserve township . Our company has passed ISO9001:2000 quality management system certification and CE certification. With the advantages in Technology, equipment, scale and management, the product are exported to USA, Europe,Middle East, Russia and Korea etc.

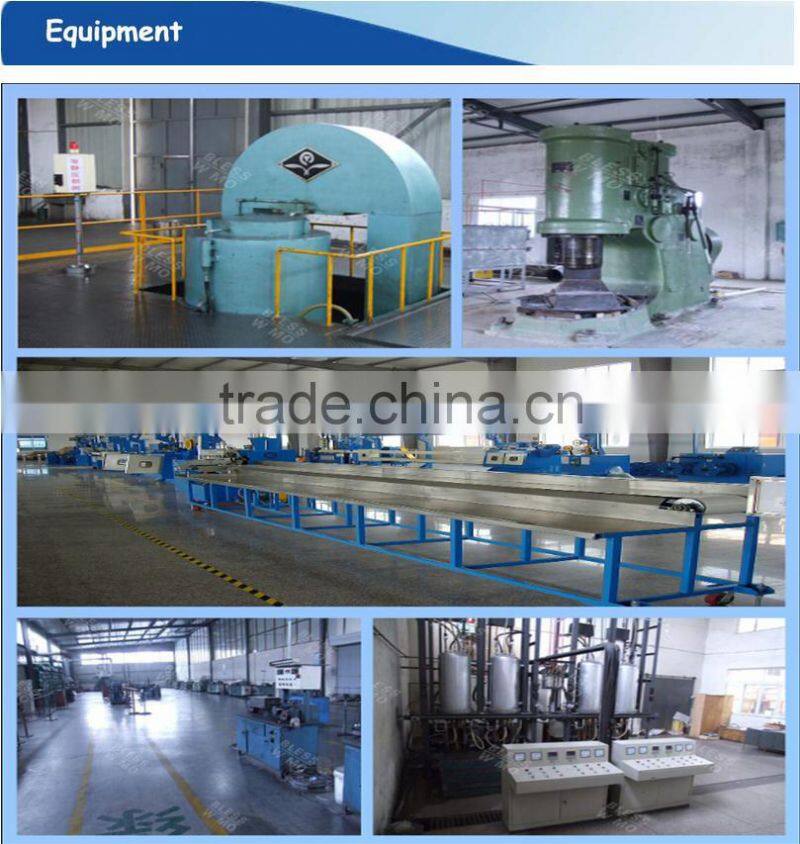

As the professional manufacturer with mature production process and multiple tungsten & molybdenum production lines, we are able to produce the customized products as per requirement.
Official Web: /en/
Luoyang edm molybdenum wire electrode edm moly wire
Luoyang edm molybdenum wire electrode edm moly wire
Official Web: /en/edm moly wire
Luoyang edm molybdenum wire electrode edm moly wire
1) Can we make a different size or different materail, say like customized item?
Surely, one of our main feature is OEM
2)What‘s your advantage or differences from others?
Saving freight for our customers is big advantages to us, if CIF or other terms suits you, the freight will be most competitve.
3) Do you have a registed brand?
Yes, Bless
4) Do you have QC process?
Yes, we have a quality control department.
6) Can I have a free sample before placing order?
If the standard items, with in stock, No problem, we can send 3 ~ 5 pcs for your testing approval;
if a special request of item, supposed a new mould, we will charge a certain deposit and can be refundable.
Luoyang edm molybdenum wire electrode edm moly wire
