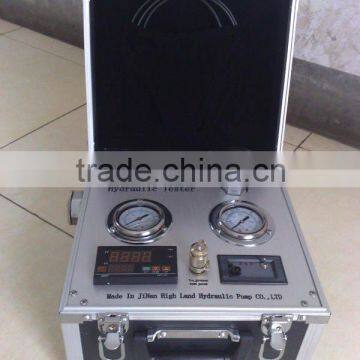

Good price for economical and practical hydraulic testing meter

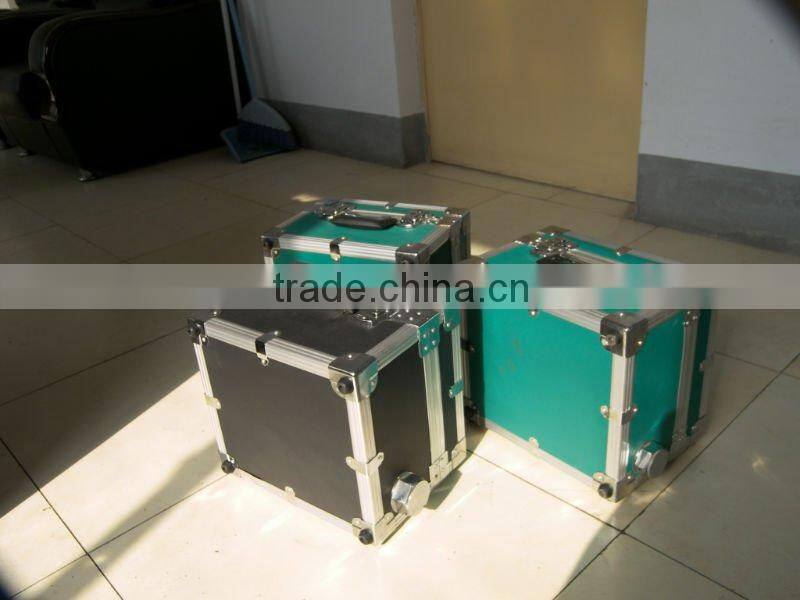

Wooden case

Specifications

economical and practical hydraulic testing meter with patent

Suitable for on-site test for hydraulic pump of various construction machines

Models and specifications

Model MYHT-1-2

Oil temperature range  -20—150°C

Maximum test flow 200L/min

Overall dimensions  280x245x172mm

Flow precision: ±1%

Weight  6.1Kg

Maximum test pressure 420bar Power: Rechargeable lithium                   batteries12V

1.4.2

Model: MYHT-1-4

Oil temperature range -20—150°C

Maximum test flow 400L/min

Overall dimensions 280x245x172mm

Flow precision ±1%       Weight 7.2 Kg

Maximum test pressure 420bar

Power: Rechargeable lithium batteries12V

1.4.3                    Model MYHT-1-5

Oil temperature range -20—150°C

Maximum testing flow 500L/min

Overall dimensions 280x245x172mm

Flow precision ±1%

 Weight 10.5 Kg

Maximum test pressure 420bar Power: Rechargeable lithium                   batteries12V

1.4.4                    Model MYHT-1-7

Oil temperature range -20—150°C

Maximum testing flow 800L/min

Overall dimensions 280x245x172mm

Flow precision ±1%

Weight 17.5 kg

Maximum test pressure 420bar

Power  Rechargeable lithium batteries12V

Festures:

Integration design for testing hydraulic pump, motor, valve or transmission

Easy to and instant use

Ideal for testing hydraulic system and prevent from breakdown arising.

Shift Switch for reading flow and temperature

Built-in loading valve

Accurate measurement

One-way load

Light weight, portable, convenient

Chargeable Lithium Battery (12V) with big capacity and long useful life

Maintenance

Load valve: In correct connection of power, if the load valve could not work, check if there is any jam inside it.

Battery: The battery is able to continuously work over 30 hours and should be charged 4—8 hours for one time.

Flow Meter: It might because of pollutant if the flow meter is not able to show data normally. In this case, contact the manufacturer to solve this problem.

500l/min, 150 °C  420 bar

MYHT-1-7

400l/min, 150 °C  420 bar
