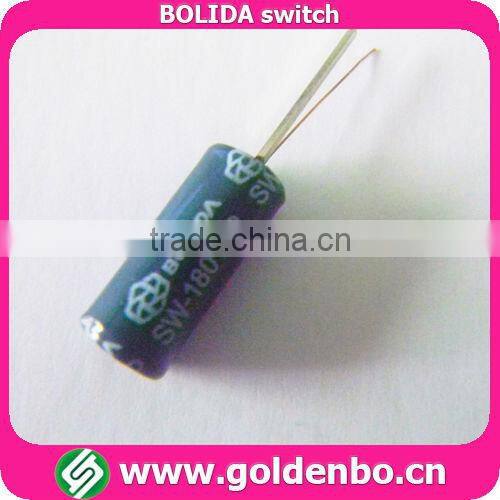

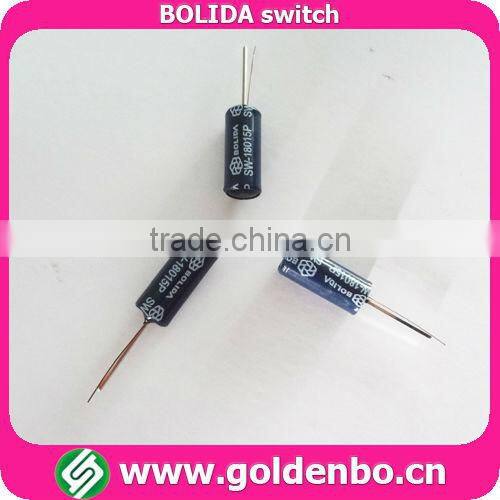

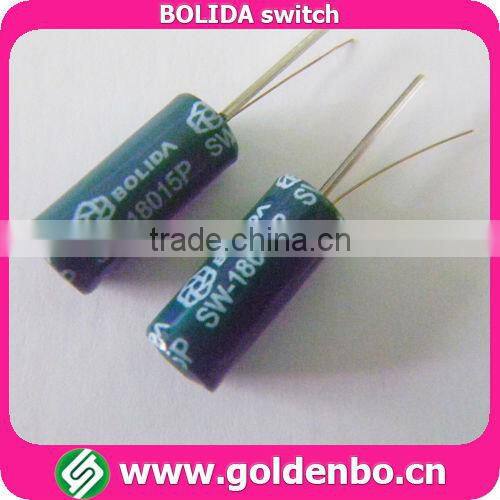

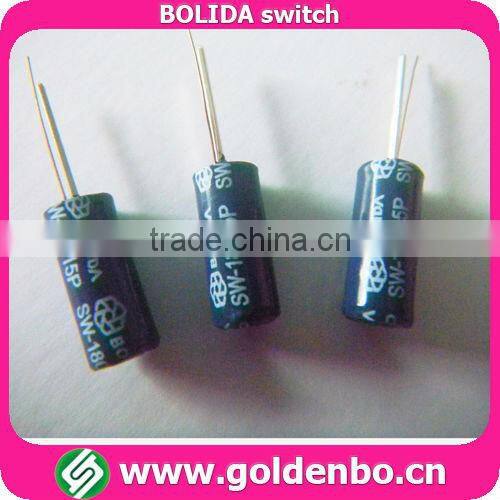

SW-18015P BOLIDA Vibration Switch
- SHENZHEN
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | BOLIDA | |
| Model Number | SW-18015P | Max. Current | <12V | |
| Max. Voltage | <20mA |
Product Description
Specifications
SW-18015P BOLIDA vibration switch1)With Rohs material
2)can design according to your request
3)OEM service
SW-18015P BOLIDA vibration switch
Electrical characteristics:
Voltage: less than12V
Current: <20mA
Closed resistance: <10 ohm
Open resistance: <5 ohm
Temperature range Operating: -25 to + 100°C
Pull force of terminal: 500GF/minute
Humidity: 95% RH, 40°C for 96 hours
Operating lifespan: 1,000,000 cycles
Vibration strength: sensitivity
Features:
1) SW-18015P is spring type, Non-direction vibration induced trigger switches, any angle can be trigger.
2) The series of switches, at the rest is open circuit “OFF-state”, When the external force to touch and reach the corresponding vibration, Or move in speed to reach the adequate centrifugal force. The conductive feet will be conduct instantaneously “ON-State”. When the external force disappear, the switches will be revert the “OFF-State”.
