Product Details
| Place of Origin | Henan, China | Brand Name | SHENGGONG | |
| Model Number | HGY5311TFC | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1, APPLICATION
HGY5311TFC intelligent slurry paver is mainly applied to treat the pavement diseases like friction resistance reduction, cracks and ruts for improving its performances of anti-slide and waterproofing, evenness and traveling comfort. This equipment can be widely used in construction of slurry sealing, modified slurry sealing and micro-surfacing.
This equipment is a new type of patented product for road maintenance at international advanced level on the basis of foreign advanced technologies. This product is tested and optimized in constructions for many years, which is the ideal machinery for slurry sealing and micro-surfacing constructions.
2, MAIN TECHNICAL PARAMETERS
Product Model: | HGY5311TFC |
Chassis Model: | ZZ1317M3867D1, HOWO Euro IV |
Engine Power: | 110kw/2300rpm |
Aggregates Hopper Volume: | 12 m3 |
Emulsion Tank Volume: | 4 m3 |
Water Tank Volume: | 4 m3 |
Additive Tank Volume: | 600 L |
Filler Tank Volume: | 2×0.5 m3 |
Discharging Volume of Mixer: | max.3.5T/min |
Minimum Vehicle Speed: | 1 km/h |
Width of Paver: | 2.5-4.3 m |
Overall Dimensions: | 11690×2496×3490 (mm) (L×W×H) |
3, Advantages of Fiber Asphalt Slurry Sealer
1, New hopper structure and stilling cone layout could convey the aggregate smoothly.
2, New chain belt conveyor avoids skidding to make the aggregates conveying smoothly and accurately.
3, New mixer is driven by double motors with strong power. Front bearing is removed to make the structure more practical.
4, HOWO MAN T7H deluxe chassis with 2-speed gearbox could meet the demands of both transportation at high speed and construction at low speed. The truck speed could be controlled by the operator in construction.
5, PLC is replaced by industrial controller. The new controller can drive the hydraulic proportional valve directly and detect the faults by itself to decrease the system faults and improve its stability.
6, This equipment applies centralized control to the whole machine, with complete function of display and alarm, humanized design and easy operation.
7, Large storage hopper of 12m3is equipped to improve working efficiency.
8, The maximum mixing volume of 3.5t/min fits for different width, depth and technologies of construction.
9, Fiber feeding unit of optimized design regulates fiber feeding amount accurately and uniformly, easy in operation.

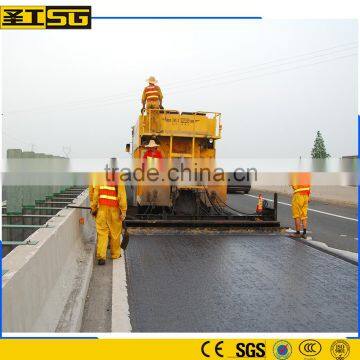

Construction case
Our Services
>> 24 hours online-service, welcome your inquiry and business visiting !
>> 12 Months warranty !
>> Free overseas technical training !
>> Skype: eva_hlcable
Henan Gaoyuan Road Maintenance Equipment Co.,Ltd (Gaoyuan SG), has been specializing the development and production of road maintenance machinery since its foundation in April, 2004.
There are 5 production workshops and 1 paint finishing workshop with more than 270 units of various kinds of production and inspection equipment.
As a National Hi and New Technology Enterprise Gaoyuan SG is widely recognized as one of the TOP 3 domestic suppliers of road maintenance equipment and vehicles which also has provincial technology research center with 23 invention patents among 108 practical patents and several research results which fills in the blanks for relative areas.
In 2012, we established China's first laboratory for road maintenance equipment.
NATIONAL HIGH-WAY MAINTENANCE EQUIPMENT ENGINEERING LAB
FACTORY & WORKSHOP
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
Generally it is 7-10 days if the goods are in stock, or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What warranty coverage do I have?
Our machine has one-year warranty; We will provide free overseas technical training for exported products.
Q4: What is your term of payment?
A: 30% T/T in advance, balance before shipment, or 30% T/T in advance, 70% L/C at sight.
