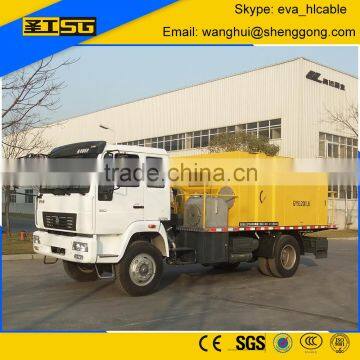

HGY5120DYH MOH Road Repair Truck for Cold Slurry Patcher

HGY5120DYH MOH Road Repair Truck for Cold Slurry Patcher

Main technical parameters

u  Product Model:                  HGY5120DYH

u  Chassis Model:                  ZZ1124G4215C1

u  Engine Power:                  140 kw

u  Aggregate bin volume:           5m³

u  Emulsion tank volume:           1.2m³

u  Water tank volume:              1.2m³

u  Cement tank volume:            0.5m³

u  Output capacity of mixer:         ≤1200kg/min

u  Overall dimensions:              7660×2400×2770mm

u Application

HGY5120DYH MOH cold slurry pathcer is used to deal withthe road damagessuch as potholes and pits as well to improve road flatness road surface and traveling comfort for safer transportation conditions.

u  Construction Technology

According to different technology, the equipment can mix both slurry seal mixtureand pits cold-patch mixture (organic hydraulic composite materials MOH----patented results of Henan Gaoyuan Road Maintenance Technology Co., Ltd.)

Slurry seal course refers to the asphalt surface treatment thin course that is the slurry mixture is evenly paved on the pavement based on required thickness and width, which contains emulsified asphalt as binder and is added with a certain proportional powder (cement, lime, coal ash, mineral powder, etc.), agent and water and such materials, and then is mixed and made.

The pits cold-patching material mixing process is roughly the same as the mixing of slurry seal mixture, after which the composite material of cement and emulsified asphalt formed a network structure and combined the aggregates firmly. Thus the mixture has sufficient strength and high temperature stability. It can overcome the defects of asphalt concrete and cement concrete in terms of thermal stability and hard brittleness as well as have good compact, dens, wear- resistant and anti-stripping performance.
